• Power the device normally through Power over Ethernet for less cable management, or an industrial microfit connector for a secure and durable power option.

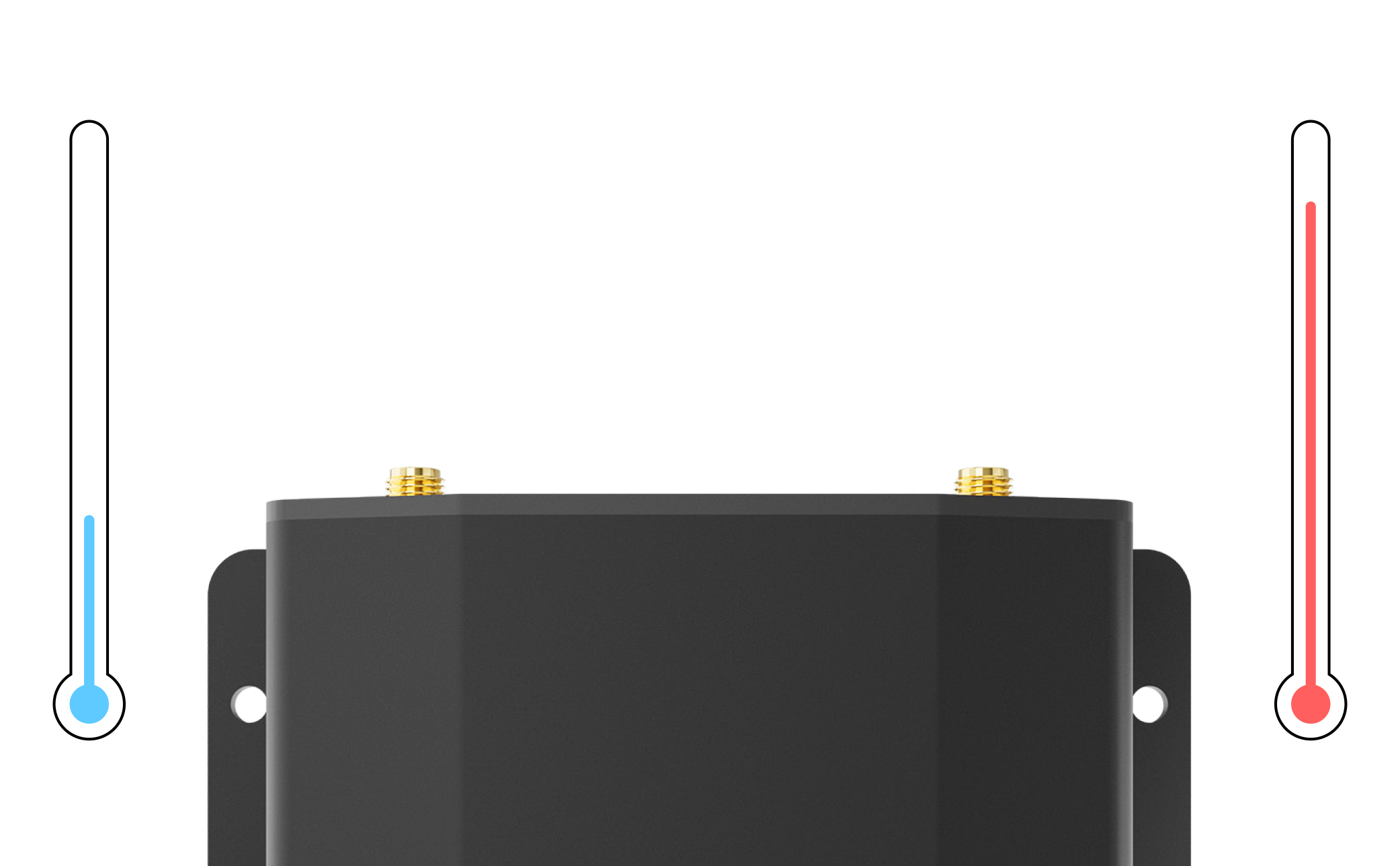

• Its tough exterior allows for smooth operation in -40°F/-40°C to 149°F/65°C environments.

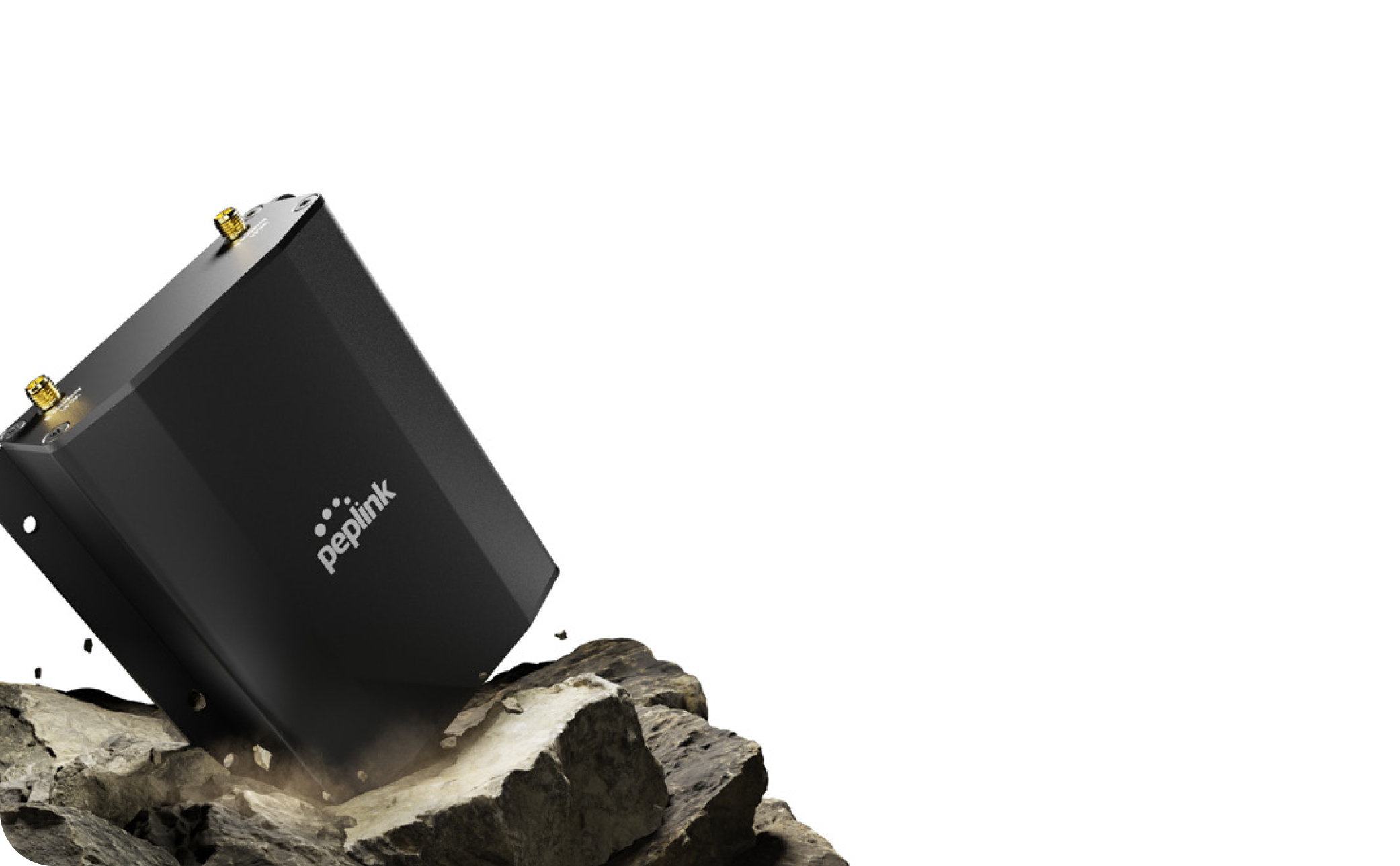

• It’s resistant to shock, vibrations and electromagnetic waves with the certifications to prove it.

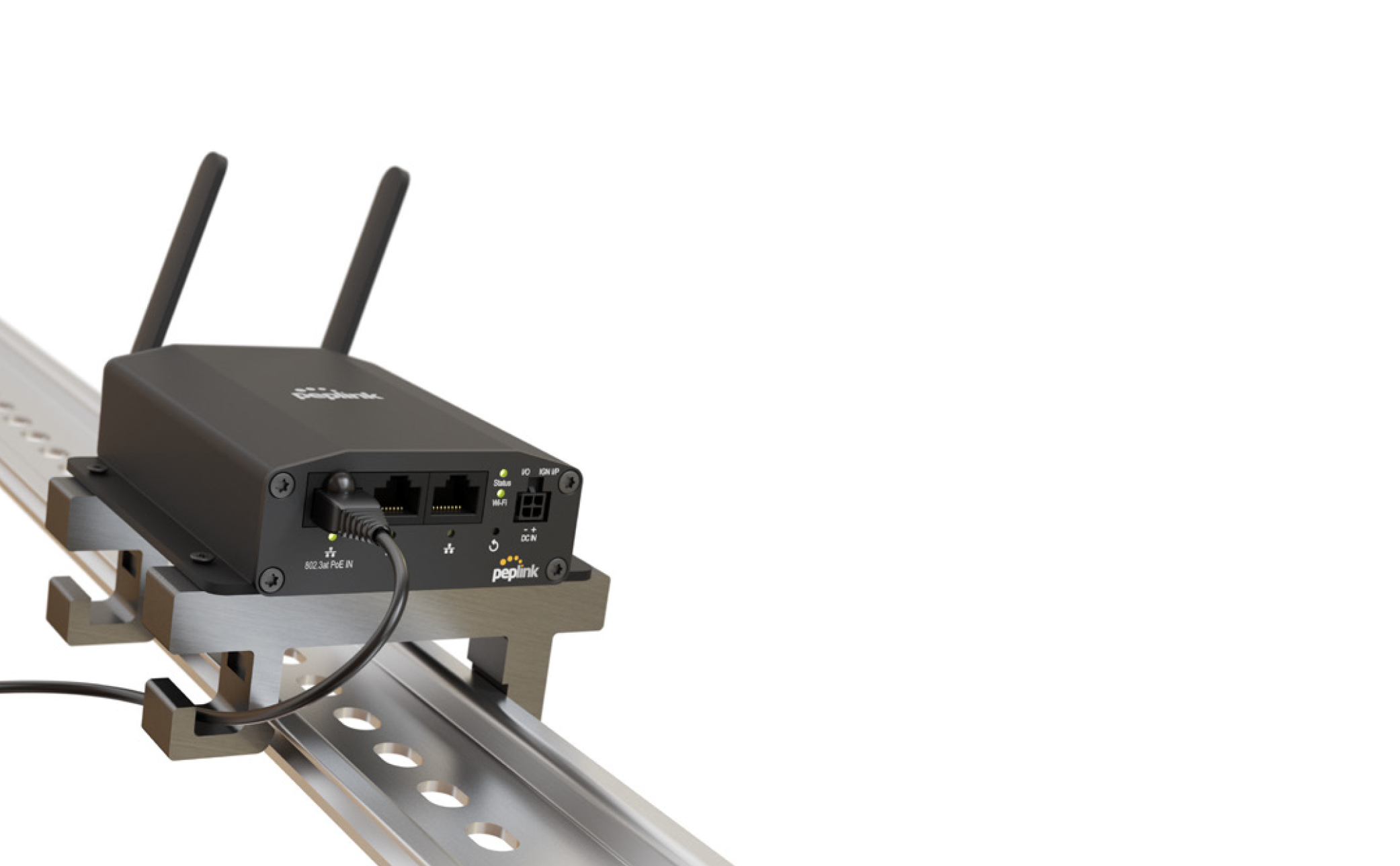

• The DIN rail mount system allows for flexible deployment, no matter if it’s on a wall, on a pole or on the ceiling.

Take full control of your Network

This isn’t just your everyday access point. With Wi-Fi mesh support, you can eliminate blindspots in your network, and easily control all your devices with InControl 2.

Ethernet available whenever you need it

It’s not just limited to simply providing Wi-Fi either. Boost your devices with wired connections through its 3 GE ports. Having options gives you the power to deploy however you want.

• Ethernet Port: 3x 10/100/1000M Ethernet
• Wi-Fi Standard: Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 5 2X2 MIMO
• Data Rates: 2.4 GHz: up to 300Mbps, 5 GHz: up to 866Mbps
• Channel Width: 20/40/80 MHz
• Recommended Concurrent Users Per Radio: 60
• SSID: 16
• Transmit Power: 2.4GHz: 17dBm, 5GHz: 17dBm
• Antenna: External Omni Directional Antennas, 2x 3dBi – 2.4GHz, 2x 3dBi – 5GHz
• Connector Type: 2x RP-SMA Wi-Fi Antenna connectors
• Power Input: 10V – 30V DC, 802.3at PoE
• Power Consumption: 13W (max.)
• Enclosure: Ruggedised Metal
• Dimensions: 122.1 x 107 x 35 mm
• Weight: 365 grams
• Operating Temperature: -40° – 65°C
• Humidity: 15% – 95% (non-condensing)
• Feature: GPIO¹
• Certifications2: FCC, CE, IC, E-Mark, Railway Certification: EN 50155, Railway Certification: EN 50121-3-2, Railway Certification: EN 50121-4, Vibration & Shock: EN 61373
• Warranty: 1-Year Limited Warranty
• Package Content: AP One Rugged, 1 x 12V2A Power Supply (ACW-632), 2 x Dual Band WI-FI Antennas (ACW-342)

1. Available in future firmware
2. Certification pending.

Network
Bridge Mode
Router (NAT) Mode
Mesh
Wireless Distribution System (WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN
Spanning Tree Protocol

Radio
Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbour AP Detection

Captive Portal
By InControl

Client Management

Per SSID
VLAN with QoS (802.1p/802.1q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Client

Per Client
VLAN with RADIUS
VLAN with VLAN
Pool Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast
Enhancement

AP Security
Open
WPA/WPA2/WPA3-Personal
WPA/WPA2-Enterprise

Device Management
Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
