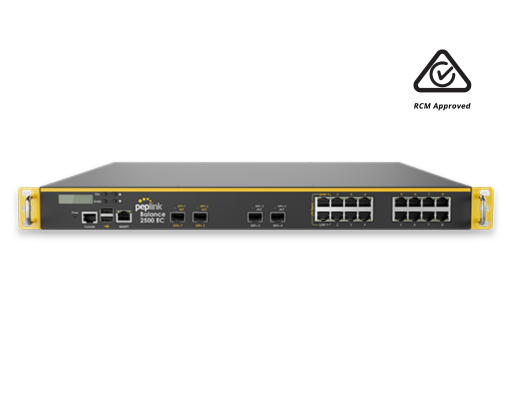

Balance 2500 EC
Balance 2500 EC
Edge Computing at Its Peak
The Balance 2500 EC is made to easily support over 10000 concurrent users. Provide connection to an entire region with a single device. The device supports two hot swappable power supplies which means you can connect a backup power source to keep your network running in the case of a power failure.
Product BrochureKEY FEATURES
More than Triple the Speed
Bring 30 Gbps throughput to your network and provide a smooth stutter-free experience to your users.
Bring 30 Gbps throughput to your network and provide a smooth stutter-free experience to your users.
A High Performing Powerhouse
The Balance 2500 EC is made to easily support over 10000 concurrent users. Provide connection to an entire region with a single device.
Dual Power Supplies
The device supports two hot swappable power supplies which means you can connect a backup power source to keep your network running in the case of a power failure.
The Premier choice for Edge Computing
Edge computing improves speeds by processing data locally before sending it back to your headquarters. And with 1 TB of built in storage, this allows the Balance 2500 EC to handle whatever you throw at it.
WAN Ports for All Your Needs
With up to 20 WAN ports available, take full advantage of SpeedFusion without ever worrying about hitting a bandwidth cap.
SPECIFICATIONS
• WAN Interface:
Up to 16 (GE)2, Up to 4x 10G SFP+2, 1x USB Interface• LAN Interface: Up to 16 (GE)2, Up to 4x 10G SFP+2
• Router Throughput: 30 Gbps
• SpeedFusion VPN Throughput: No Encryption – 4 Gbps, 256-bit AES – 4 Gbps
• Recommended Users: 10000 – 20000+
• Number of SpeedFusion VPN Peers: 4000
• Maximum Number of AP Supported: 1500
• SpeedFusion Features: Hot Failover, WAN Smoothing, Bandwidth Bonding
• Central Management: InControl
• Drop-In Mode: Yes
• High Availability: Yes
• Content Filtering: Full
• Pepwave AP Series Management: Yes
• Remote AP & Multiple Config Profiles Management: Yes
• LAN Bypass: Yes
• Remote User Access: Yes
• LACP (802.3ad) NIC Bonding: Yes
• Dual Hot Swap Power Supply: Yes
• 1U Rack-mount: Yes
• Power Input: AC Input 100V – 240V
• Power Consumption: 65W (nominal), 150W (max.))
• Dimensions: 438 x 470 x 44 mm
• Weight: 8.7 kg
• Operating Temperature: 0°– 40° C
• Humidity: 10% to 90% (non-condensing)
• Certifications: FCC, CE, RoHS
• Warranty: 1-Year Limited Warranty
• Package Content: 1x Balance 2500 EC, 2x Power Cords, 2x Rack Unit Rails, 1 Pair of Mounting Brackets
1. 1 Only one USB WAN port can be used at a time.
2. 2 SFP+ 1&2 and WAN 1-8 are configured as WAN ports; SFP+ 3&4 and LAN1-8 are configured as LAN ports by default, configuration is changeable on the Web Admin.
The power switch, VGA port & USB ports at the back of the device are disabled.
ORDERING INFORMATION
Product Code: BPL-2500-EC
Description: Balance 2500 EC, 1TB SSD
Description: Balance 2500 EC, 1TB SSD
FEATURE ADD-ON
Product Code: SVL-730
Description: EssentialCare (1-Year) for Balance 2500 EC
Description: EssentialCare (1-Year) for Balance 2500 EC
Product Code: SVL-612
Description: EssentialCare (2-Year) for Balance 2500 EC
Product Code: PSC-190
Description: SmartCare (1-Year) for Balance 2500 EC
Product Code: PSC-390
Description: SmartCare (3-Year) for Balance 2500 EC
