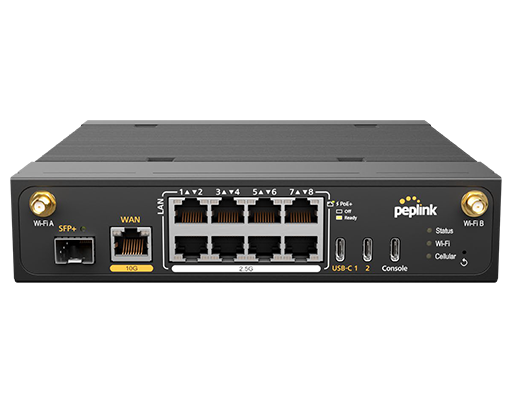

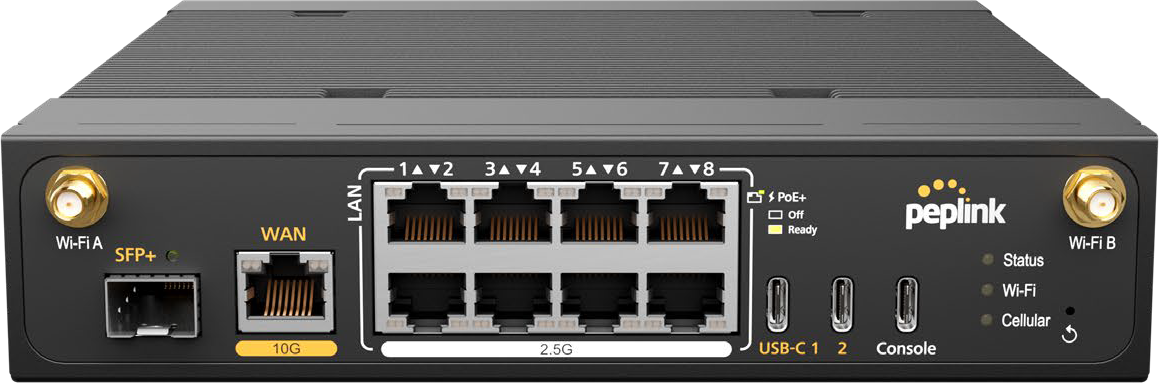

Balance 310 5G
5G-Hybrid Enterprise Branch Connectivity
Balance Your Fixed Network with 5G Wireless WAN
With SpeedFusion Cloud you can utilise traffic steering. A technology whereby connections are controlled based on the application, limiting data wastage and traffic.
Product BrochureKEY FEATURES
Balance Your Fixed Network with 5G Wireless WANWith SpeedFusion Cloud you can utilise traffic steering. A technology whereby connections are controlled based on the application, limiting data wastage and traffic.
Enjoy Speed and Reliability without Having to CompromiseMulti-radio combined with our SpeedFusion Hot Failover technology allows connections of 5G and LTE networks to work simultaneously.
Control Anytime Anywhere Remote Central Management with private controller or cloud management.

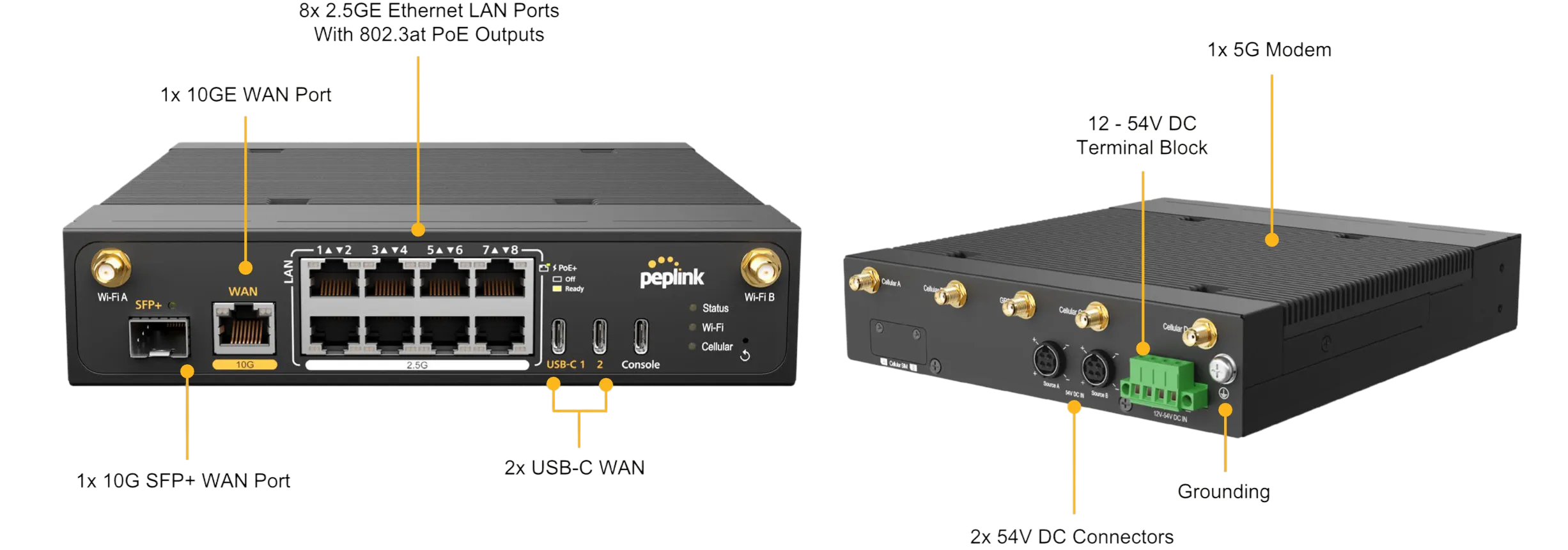

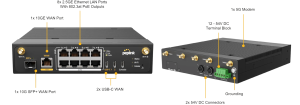

SPECIFICATIONS
• WAN Interface
1x 10/100/1000/2500/5000/10000M Ethernet
1x 10G SFP+
1x Embedded Cellular Modem with Redundant SIM Slots
2x USB-C Interface
• LAN Interface
8x 10/100/1000/2500M Ethernet
• Wi-Fi Interface
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 7 2×2 MIMO
Wi-Fi WAN and/or AP
• SpeedFusion Features
Hot Failover, Smoothing, Bandwidth Bonding
• Number of PepVPN SpeedFusion Peers
TBD
• Router Throughput
TBD
• Cellular Data Rate 2 (Downlink / Uplink)
5G: 4.1 Gbps / 900 Mbps
CAT-20: 2 Gbps / 211Mbps
• SpeedFusion VPN Throughput
No Encryption – TBD
256-bit AES – TBD
• Recommended Users
TBD
• AP Controller
Standard
• Maximum Number of AP Supported
30 / 50 1
• Antenna Connectors
4x SMA Cellular Antenna Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector
• Power Input
2x Power DIN: 54V DC
AC Adapter: AC Input 100V–240V / DC Output 54V
Terminal Block: 12V – 54V DC
• Power Output
Up to 8x 802.3at PoE+ Outputs
• Power Consumption
TBC
• Dimensions
7.3 x 8 x 1.61 inches / 186 x 204.5 x 41 mm
• Weight
3.41 pounds / 1.55 kg
• Operating Temperature
-40°– 149° F / -40°– 65° C
• Humidity
15% to 95% (non-condensing)
• Certifications
FCC, CE, RoHS
• Warranty
1-Year Limited Warranty
• Package Content
1x Balance 310 5G
4x LTE/5G Antennas
2x Dual Band Wi-Fi Antennas
1x GPS Active Antenna
1x AC/DC power supply, 400W
1x Rubber Foot Pad Set
1x Pair of Mounting Brackets
• SIM Options
Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles)
Remote SIM from SIM Injector
FusionSIM
1. Available with licence add-on (AP-LC-50).
2. Maximum theoretical data rates.
ORDERING INFORMATION
Product Code:BPL-310-5GK-T-PRM
Description: Balance 310 5G with 1x 5G and 1x LTE CAT-12 modems
Embedded Modems: 1x 5G
Carrier/Categories: Global
5G Bands: 5G (NSA & SA), Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
LTE Bands:B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39,B40, B41, B42, B43, B46, B48, B66, B71
* Certifications Pending
Trademarks and registered trademarks are the property of Rising Connection Pty Ltd, Peplink or
their respective owners. Specifications are subject to change without notice. Images shown may
vary slightly from the actual product.
FEATURE ADD-ON
Product Code: PRM-BPL-310-5G-1Y
Description: 1 Year PrimeCare Subscription
Product Code: PRM-BPL-310-5G-2Y
Description: 2 Years PrimeCare Subscription
Product Code: PRM-BPL-310-5G-4Y
Description: 4 Years PrimeCare Subscription
