Features and benefits include:

• Scalable all-digital active DAS hybrid for enterprise environments
• Flexible to configure for single or dual operator server application
• Multi-carrier signal booster for 3G, 4G, and 5G with industry-leading signal gain up to 100 dB
• Carrier approved and unconditionally network safe
• Lossless RF signal and Power-over-Ethernet (PoE) distribution with easy-to-install category cable architecture
• Site installation flexibility with operator specific donor antenna or small cell signal source
• Remotely monitor and configure with Nextivity WAVE Portal cloud management



Coverage Made Easy

This one or two operator / two-port solution has many of the features of our flagship, four-port QUATRA 4000 systems including:

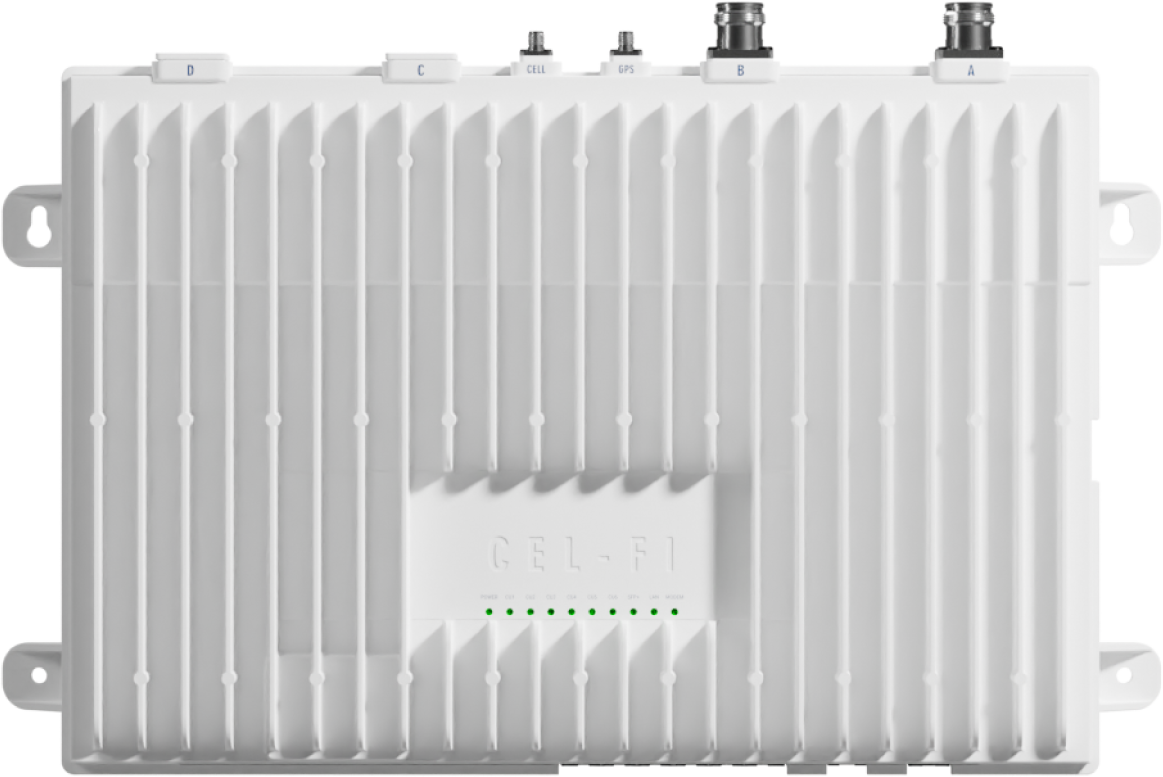

QUATRA EVO Network Unit

(Model Number: Q42-E9CNU)

The Network Unit (NU) is the hub of the system. Each NU works with one to six Coverage Units (CU) for maximum scalability and design flexibility.

• Receives donor signal(s) for the system
• Provides power and distributes donor signal(s) to CUs (up to six)
• Connects via Ethernet or LTE Modem to the Nextivity WAVE Platform for remote
  monitoring and management




QUATRA EVO Coverage Unit

(Model Number: Q41-EXCU-2)

The Coverage Unit (CU) is the remote unit of the system that rebroadcasts the donor signal. The cost efficient and easy-to-deploy system leverages Power over Ethernet (PoE) for up to six CUs.

• Distributes signal across the coverage area inside the building (up to six per Network
  Unit)
• Power delivered by Power Over Ethernet from the NU
• Self-configuring and self-optimising
• CEL-FI QUATRA EVO CU is only compatible with CEL-FI QUATRA EVO NU




QUATRA EVO Fiber Hub (Optional)

(Model Number: Q40-E9FNU)

CEL-FI QUATRA EVO Fiber Hub expands the Network Unit capacity from six to up to twelve Coverage Units. The fiber hub can be installed 1.24 miles (2.0 km) away from the NU to cover large spaces while maintaining the same signal quality throughout the system.

• Donor source over fiber
• Ofcom and ComReg Approved and FCC certified
• SFP+ module not included

CEL-FI QUATRA EVO

• Network Selection: Automatically best available (WAVE Portal for manual setting)
• Duplex Modes: FDD & TDD
• # of Relay Bands: 4 max
• Independent Operators Supported: 2 max.
• Relay Bandwidth per NU Donor Port A or B: 20 + 20 MHz max.
• CU DL Power (All Bands in UK only): 16 dBm max.
• System Gain: 100 dB max
• Enterprise-Grade Echo Cancellation: 30 dB min
• Noise Figure (All Bands): 7 dB max. at ambient
• Return Loss: -8 dB max
• UL Transmit EVM: 8.5 %, 16-QAM with full RB allocation
• DL Transmit EVM: 8.5%, E-TM3.1
• DL Input Level: -100 to -40 dBm
• RF Interface Impedance (All Ports): 50 Ω
• NU to CU Cable: 2x Category Cables ANSI/TIA/EIA 568-B Compliant
• NU to CU Cable Distance: 328 ft (100 m) (656 ft (200 m) with CEL-FI QUATRA Range Extender) max
• Product Settings & SW Updates: WAVE Portal for Desktop



NETWORK UNIT INTERFACE

• Donor Port RF Connectors: 2x 4.3-10 (f) (A|B)
• Power Port: IEC C14
• Power Control: ON/OFF Switch
• Cellular Modem Antenna Connector: 1x SMA (f)
• Cellular Modem GPS Antenna Port: 1x SMA (f)
• Cellular Modem SIM: Nano SIM (Included with 1-year free service)
• Status LED (Power/LAN/Modem): Bi-Color Green/Red
• Status LED (6x CU Link/SFP+): Green
• CU Interface: 2x RJ45 per CU
• # of CU max. per NU: 6
• NU-Hub Expansion: SFP+
• # of CU max per CEL-FI QUATRA EVO Fiber Hub (Q40-E9FNU): 6
• Monitoring & Management: LAN RJ45
• COMPASS XR and Factory Debug: USB 2.0 Micro-B



COVERAGE UNIT INTERFACE

• Server Antenna RF Connector: 4.3-10 (f)
• NU Connectivity: 2x RJ45
• Status LED (Power): Bi-Color Green/Red
• Status LED(NU Link/Cable Link): Green
• Factory Debug Only: USB 2.0 Micro-B



COMPLIANCE

• 3GPP: TS 25.143 Rel 13 | 3GPP TS 36.143 Rel 13
• CE: Compliant | RED 2014/53/EU
• RoHS3: EN 63000: 2018
• OFCOM: VTS 2102
• ACMA/RCM: AS/NZS CISPR, 32:2013



QUATRA EVO POWER

• Input Voltage: 85-264 VAC
• Input Current: 2.45 A
• Power Consumption: 480 W max.
• Power Cable: Type C (EU) or Type I (AUS) or Type G (UK) to IEC C13
• Power Supply Cable: 18 AWG
• Power Supply Cable Length: 6 ft (1.8 m)
• Coverage Unit Power: PoE+ per IEEE 802.3at



ENVIRONMENTAL

• Operating Temperature: 32 to 104 °F (0 to 40 °C)
• Storage Temperature: -31 to 158 °F (-35 to 70 °C)
• Heat Dissipation: Passive Convection
• Surface Temperature: 111°F (44 °C) max. at ambient
• Non-condensing Humidity: 0 to 95%
• Ingress Protection Rating: IPX0



MECHANICAL

• Network Unit Box Contents: Network Unit
  1x AC Power Cable
  4x Mounting Screws
  4x Drywall Anchors
  1x Cellular Modem Antenna
• Coverage Unit Box Contents: Coverage Unit
  4x Mounting Screws
  4x Drywall Anchors
  2x Eye Bolt w/ nuts
• Network Unit Dimensions: 18.1 x 11.0 x 3.5 in (461 x 281 x 89 mm)
• Network Unit Weight: 19.4 lbs (8.80 kg)
• Network Unit Shipping Dimensions: 23.9 x 14.7 x 5.6 in (607 x 374 x 141 mm)
• Networking Unit Shipping Weight: 22.5 lbs (10.21 kg)

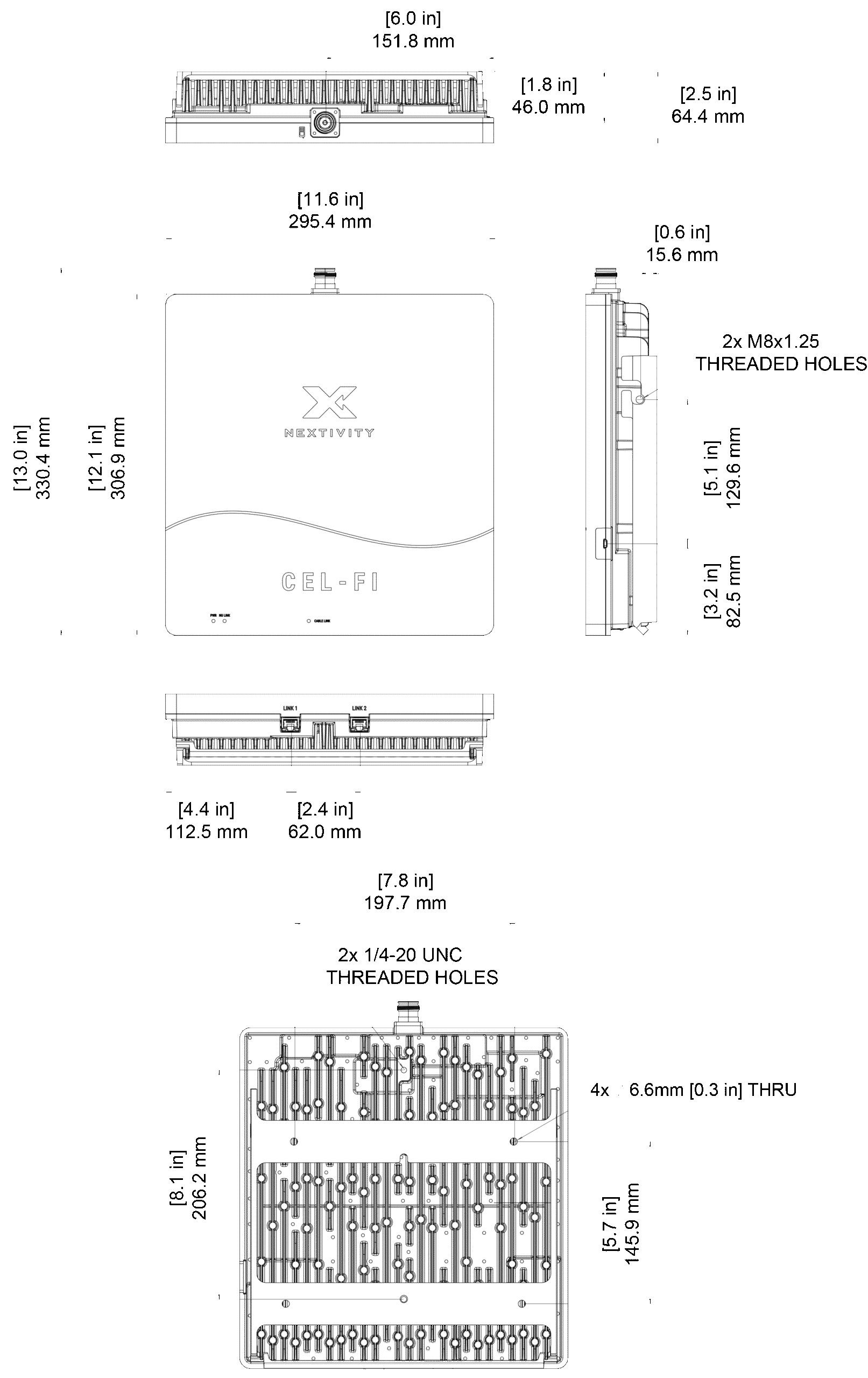

• Coverage Unit Dimensions: 13.0 x 11.6 x 2.5 in (330 x 295 x 64 mm)
• Coverage Unit Weight: 11.3 lbs (5.13 kg)
• Coverage Unit Shipping Dimensions: 18.2 x 15.8 x 4.6 in (462 x 402 x 116 mm)
• Coverage Unit Shipping Weight: 13.6 lbs (6.2 kg)
• Network Unit Mounting: Wall
• Coverage Unit Mounting: Wall/Ceiling*

*CMA-100-100 sold separately for ceiling mount

• Designed and built for the most varied conditions in the world including Australian environment.
• Worldwide proven and respected Industry Experience including in the Australian Telecommunications Industry.
• Expertise support and customer focused staff.
• Up to date with technology and bringing to market the best quality technology available for Reliable Commercial use
