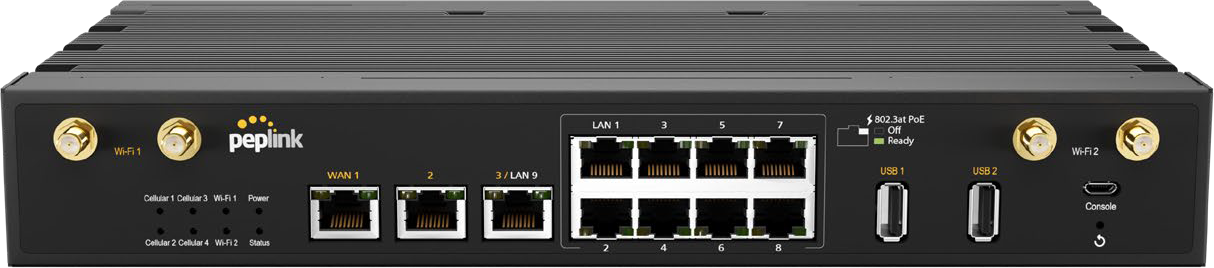

MAX HD4 MBX 5G
5G Quad Cellular Mobile Powerhouse
Best of both worlds
HD4 MBX 5G is a quad cellular mobile powerhouse with redundant SIM slots and multi-radio capabilities providing speed, reliability, and coverage by combining the best of 5G and LTE.
Product BrochureKEY FEATURES
Best of both worlds
HD4 MBX 5G is a quad cellular mobile powerhouse with redundant SIM slots and multi-radio capabilities providing speed, reliability, and coverage by combining the best of 5G and LTE.
Portability
Its compact form allows it to be deployed in a wide variety of situations such as vehicles, vessels, and branch networks.
Compatibility with SIM injector
Its compatibility allows for upgradable modules for further customisation to suit any deployment needs.
Optimise your traffic
Whether you need speed or cost-effectiveness, use Traffic Steering to guide each packet to the most suitable connection.

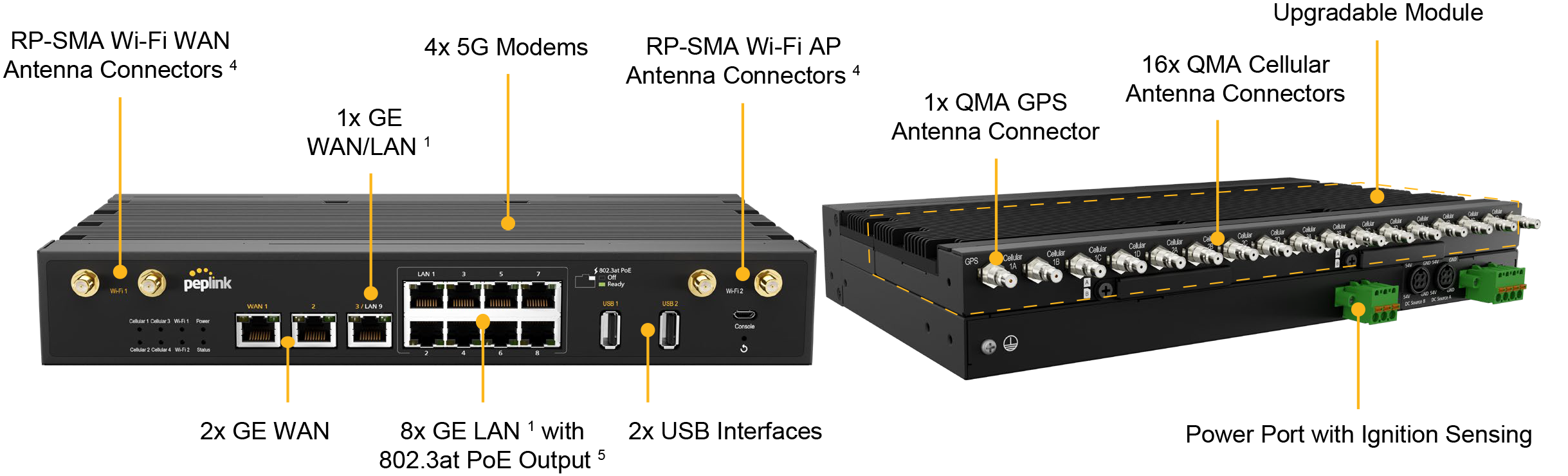

SPECIFICATIONS
• WAN Interface
3x 10/100/1000M Ethernet 1
4x Embedded Cellular Modems with Redundant SIM Slots
2x USB Interface
• LAN Interface
9x 10/100/1000M Ethernet 1
• Wi-Fi Interface
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 5 2×2 MIMO
Wi-Fi WAN and/or AP
• SpeedFusion features
Hot Failover, Smoothing, Bandwidth Bonding
• Number of SpeedFusion VPN Peers
3 / 20 2
• Features
Ignition Sensing
• Router Throughput
2.5 Gbps
• SpeedFusion Throughput
No Encryption: 600 Mbps
256-bit AES: 500 Mbps
• Recommended Users
50-500
• Cellular Data Rate 3 (Downlink/Uplink)
5G: 4.1 Gbps / 900 Mbps
CAT-20: 2 Gbps / 211 Mbps
• Antenna Connector
16x QMA Cellular Antenna Connectors
4x RP-SMA Wi-Fi Antenna Connectors 4
1x QMA GPS Antenna Connector
• Power Input
Power Port: 12V – 56V DC
Terminal Block: 12V – 56V DC
• Power Output
Up to Eight 802.3at PoE Outputs 5
• Power Consumption
55W (max.)
• Dimensions
1.7 x 11.5 x 7.0 inches / 43 x 292 x 177 mm
• Weight
7.28 pounds / 3.3 kg
• Operating Temperature
-40°– 149°F / -40°– 65°C
• Humidity
15% – 95% (non-condensing)
• Certifications
FCC, CE, RoHS,
E-Mark
EN61373 Shock and Vibration Resistance
EN50155 Railway Applications – Electronic Equipment used on Rolling Stock
EN61000 Electromagnetic Compatibility
• Warranty
1-Year Limited Warranty
• Package Content 6
1x MAX HD4 MBX 5G
4x Wi-Fi Dual Band Antennas (ACW-341)
1x QMA to SMA Adapter (For GPS)
1x GPS Active Antenna (ACW-232)
1x AC/DC power supply, 180W (ACW-630)
1x 3pin Terminal Block Connector (Ignition sense)
1x 4pin Terminal Block Connector (Power supply)
1x Grounding Cable & Rubber Foot Pad Set
1 Pair of Mounting Brackets (ACW-513)
• SIM Options
Mini-SIM (2FF)
Peplink eSIM
BYO eSIM (2 profiles)
Remote SIM from SIM Injector
FusionSIM
1. WAN 3 is configured as a LAN port by default, configuration is changeable on the Web
Admin.
2. 2 SpeedFusion VPN Peers are enabled by default. Requires a license to increase the
maximum number of SpeedFusion VPN Peers.
Several options are available based on the model 5, 10 or 20 peers (PVN-LC-05, PVN-LC-10,
PVN-LC-20)
3. Maximum theoretical data rates.
4. For the best performance and reliability, all 4 RF connectors must be connected to the same
type and performance antennas.
5. 2x 54V DC input is needed for all 8x LAN ports to have 802.3at PoE. Plugging in 1x 54V DC
input will result in 4x LAN ports having 802.3at PoE.
6. Cellular antennas not included. To enhance the MBX, Peplink antennas are recommended.

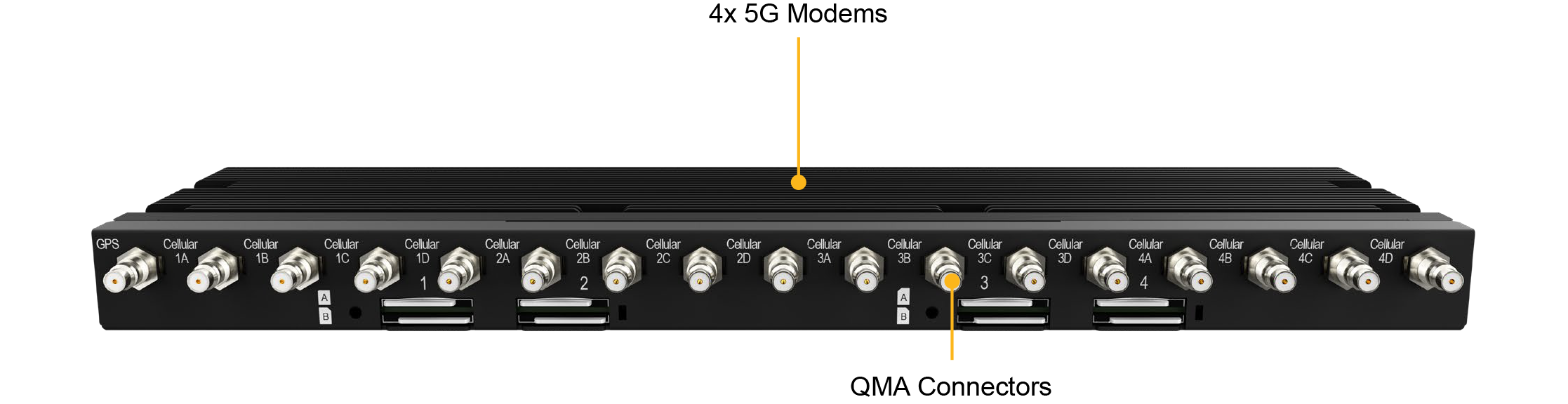

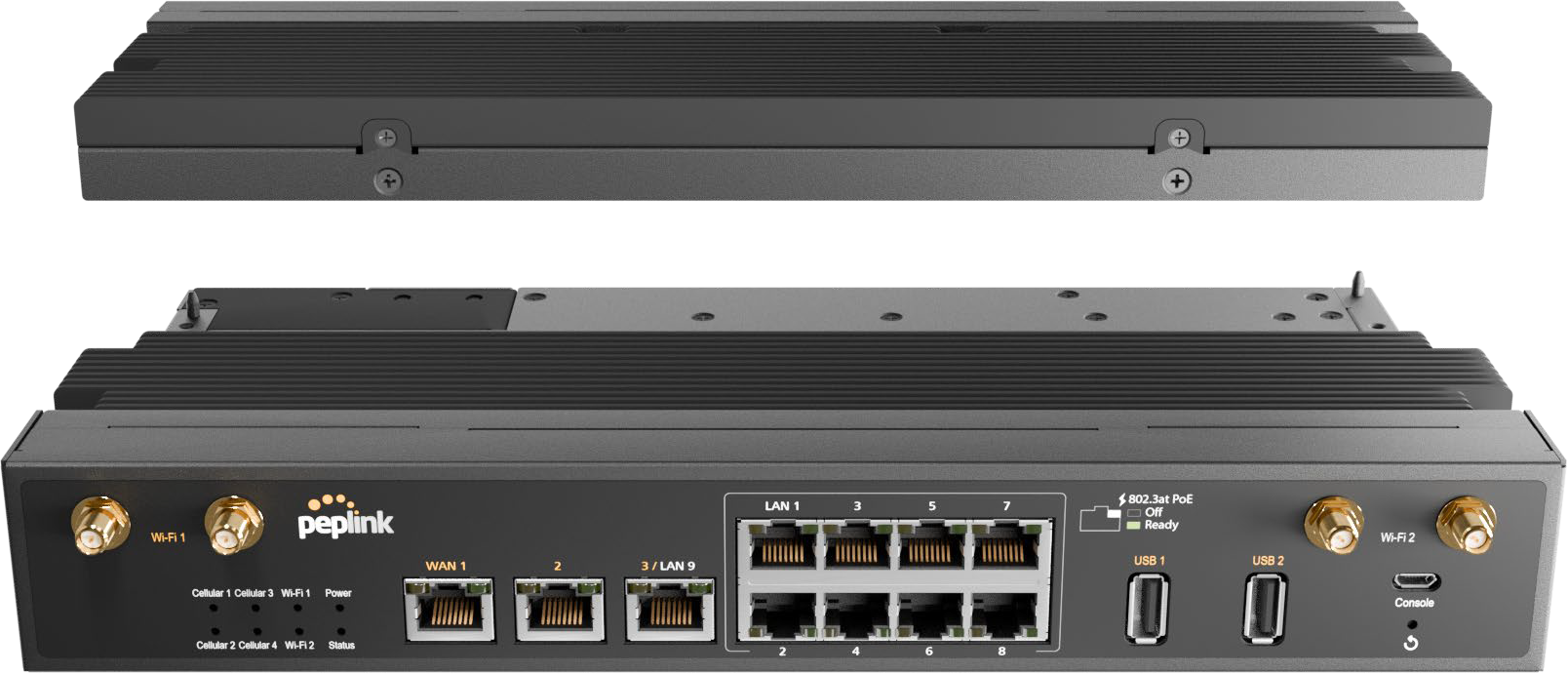

EXPANSION MODULE FOR HD4 MBX
SPECIFICATIONS
• Interface
4x Embedded Cellular Modems with Redundant SIM Slots
• Antenna Connectors
16x QMA Antenna Connectors
1x QMA GPS Antenna Connector
• 5G Cellular Data Rate 1 (Downlink / Uplink):
5G: 4.1 Gbps / 900 Mbps
CAT-20: 2 Gbps / 211 Mbps
• Dimensions
0.9 x 11.5 x 3.5 inches / 22 x 292 x 88 mm
• Weight
2.2 pounds / 1 kg
Ordering Information
Product Code: MAX-HD4-MBX-5GD-T
Description: HD4 MBX 5G with 4x 5G modems
Embedded Modems: 4
Carrier/Categories: Global / 5G
5G Bands: 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
@ Theoretical maximum data rates.
Trademarks and registered trademarks are the property of Rising Connection Pty Ltd, Peplink or
their respective owners. Specifications are subject to change without notice. Images shown may
vary slightly from the actual product.
ORDERING INFORMATION
Product Code: MAX-HD4-MBX-5GD-T
Description: HD4 MBX 5G with 4x 5G modems
Embedded Modems: 4
Carrier/Categories: Global / 5G
5G Bands: 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Description: HD4 MBX 5G with 4x 5G modems
Embedded Modems: 4
Carrier/Categories: Global / 5G
5G Bands: 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
Product Code: EXM-MBX-T4-5GD
Description: Expansion Module for HD4 MBX 5G with 4x 5G modems
Embedded Modems: 4
Carrier/Categories: Global / 5G
5G Bands: 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71
FEATURE ADD-ON
Product Code: ACW-630
Description: Includes 1x 54V, 3.34A Power Supply. Enable 4x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase)
Product Code: ACW-633
Description: Includes 2x 54V, 3.34A Power Supply. Enables 8x LAN with 802.3at PoE output (PoE License automatically applied after kit purchase)
Product Code: ACW-674
Description: 1x 54V/5.56A 300W Power Supply Unit
Product Code: ACW-675
Description: 1x 54V/7.41A 400W Power Supply Unit
Product Code: MAX-HD-020-SPF
Description: Supports up to 20 PepVPN/SpeedFusion Peers
Product Code: SFN-LC-50
Description: Up to 50 SpeedFusion Bonding License Key for MAX HD4 MBX 5G
Product Code: SIM-BK8-4E-56V
Description: SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC
Product Code: ANT-MB-42G-Q-W-6
Description: 7-in-1 Cellular and Wi-Fi Antenna System with GPS Receiver (White)
Product Code: ANT-MB-40G-Q-B-6
Description: 5-in-1 Cellular Antenna System with GPS Receiver (White)
Product Code: ANT-MB-40G-Q-W-6
Description: 5-in-1 Cellular Antenna System with GPS Receiver (Black)
