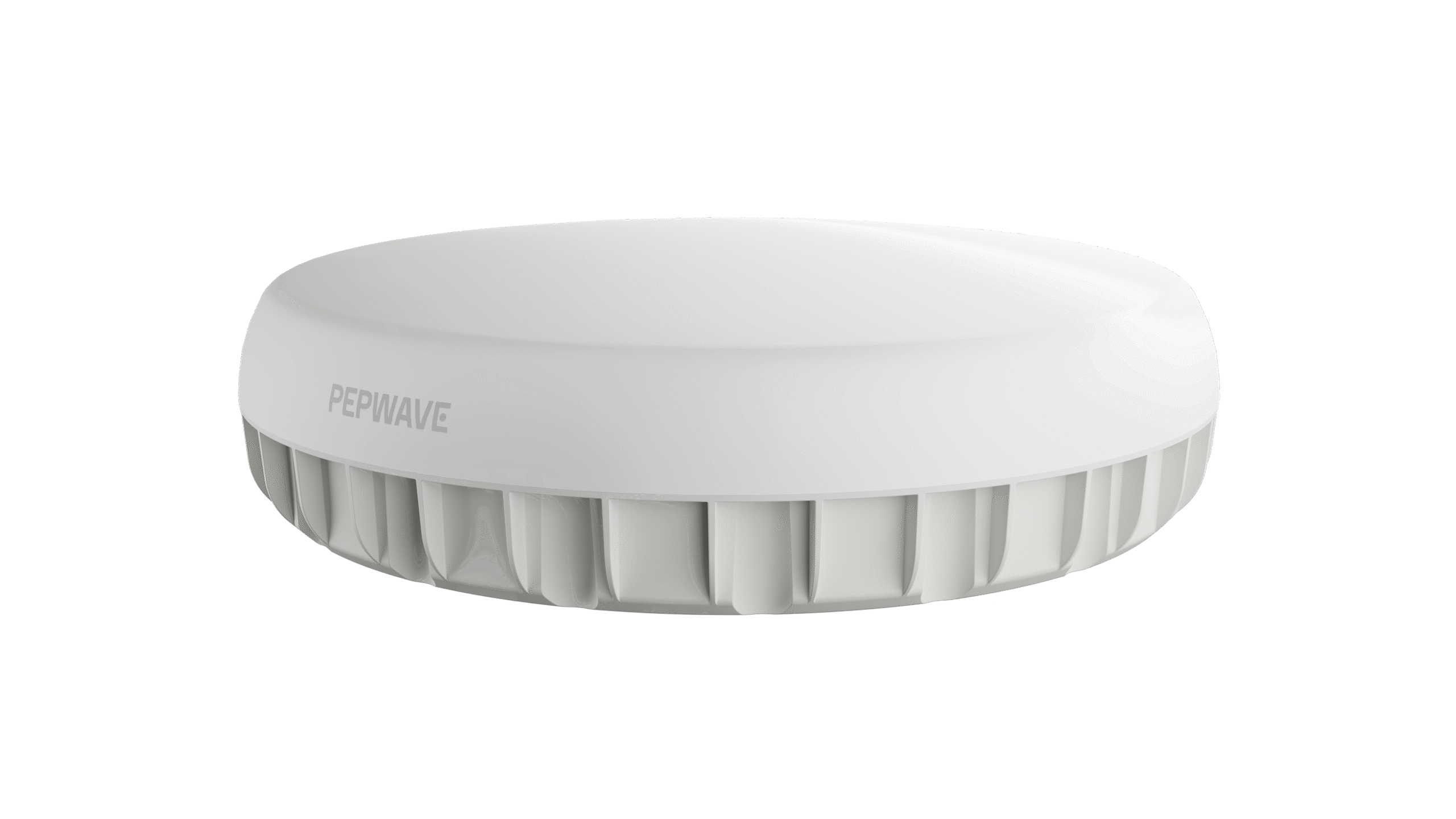

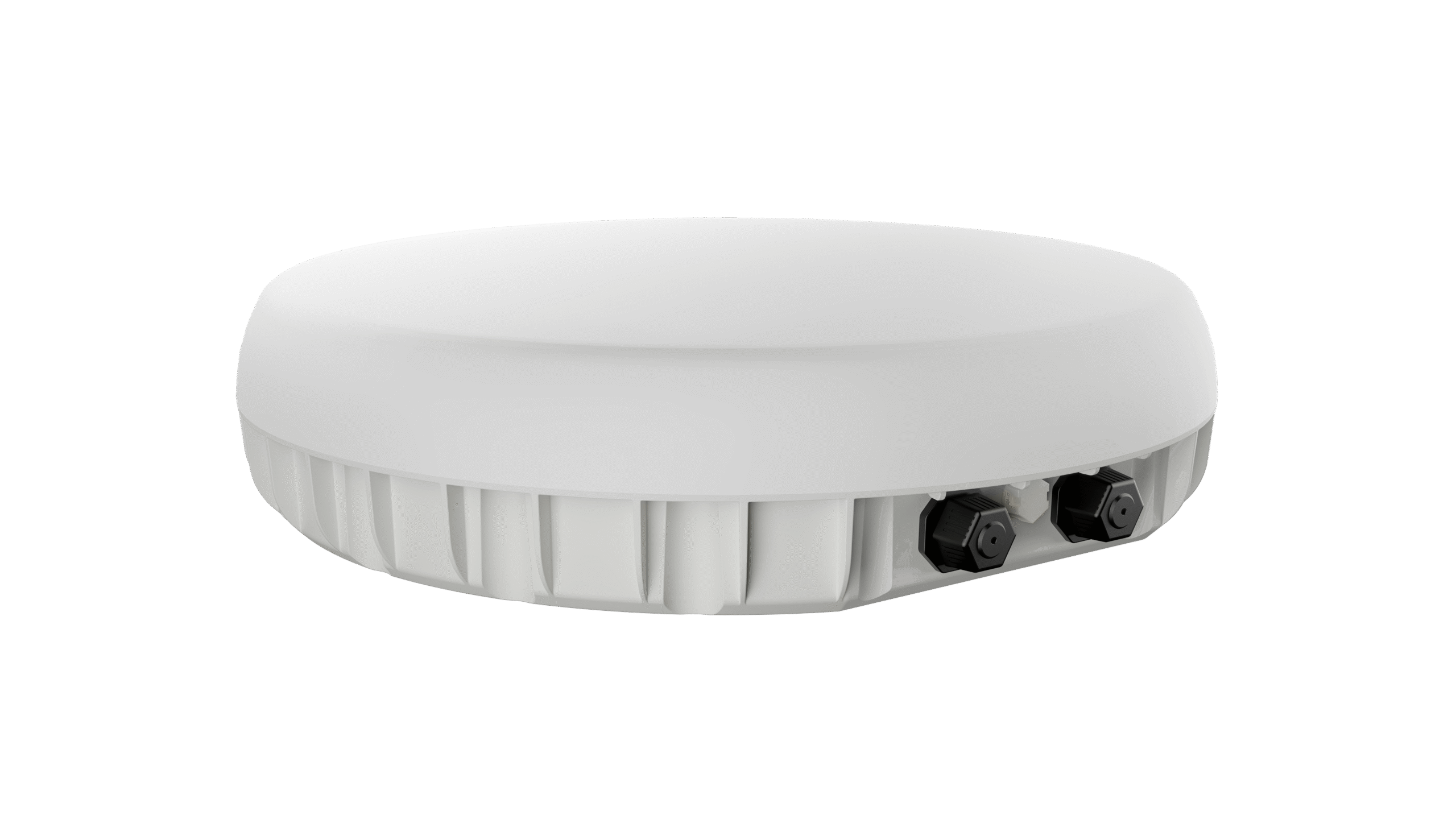

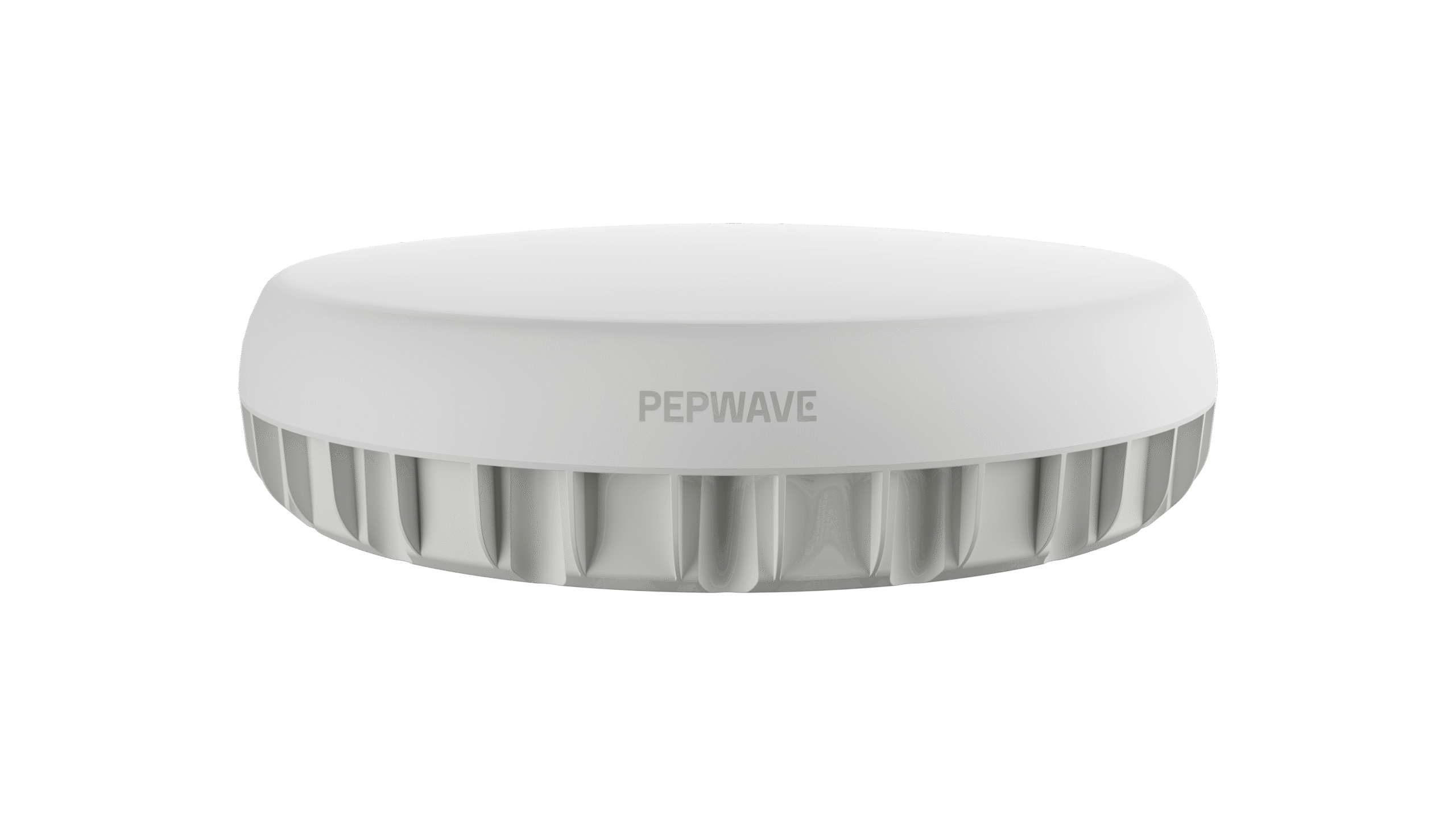

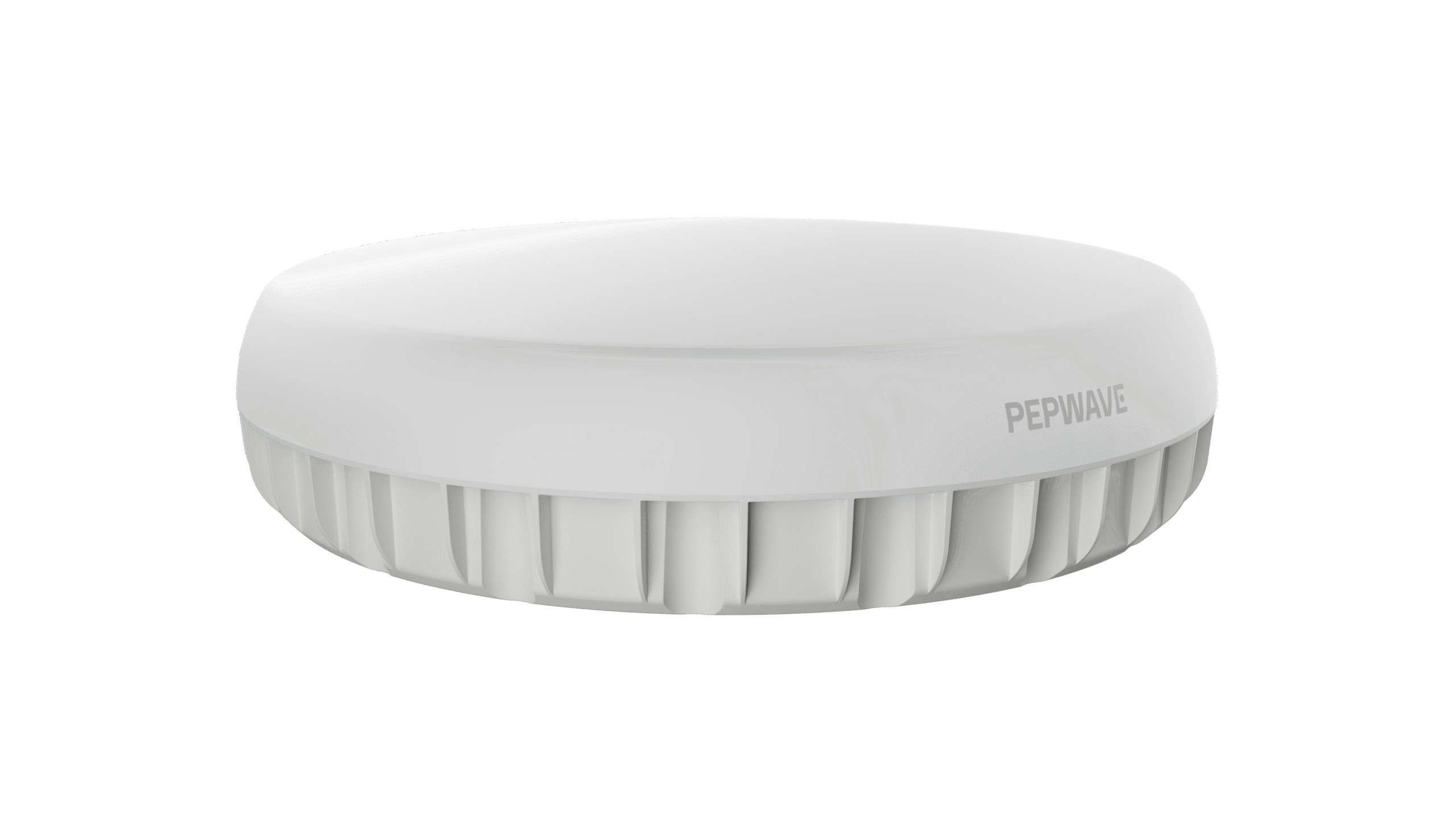

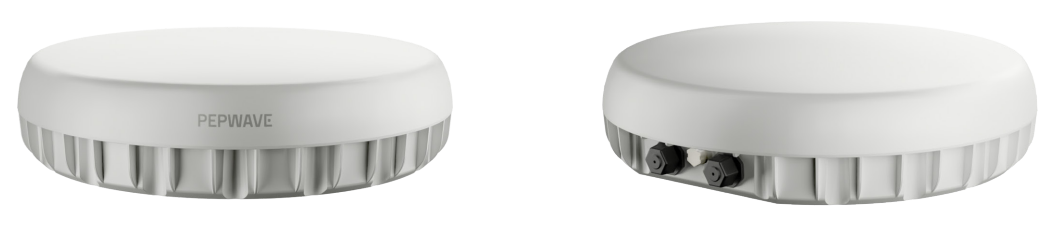

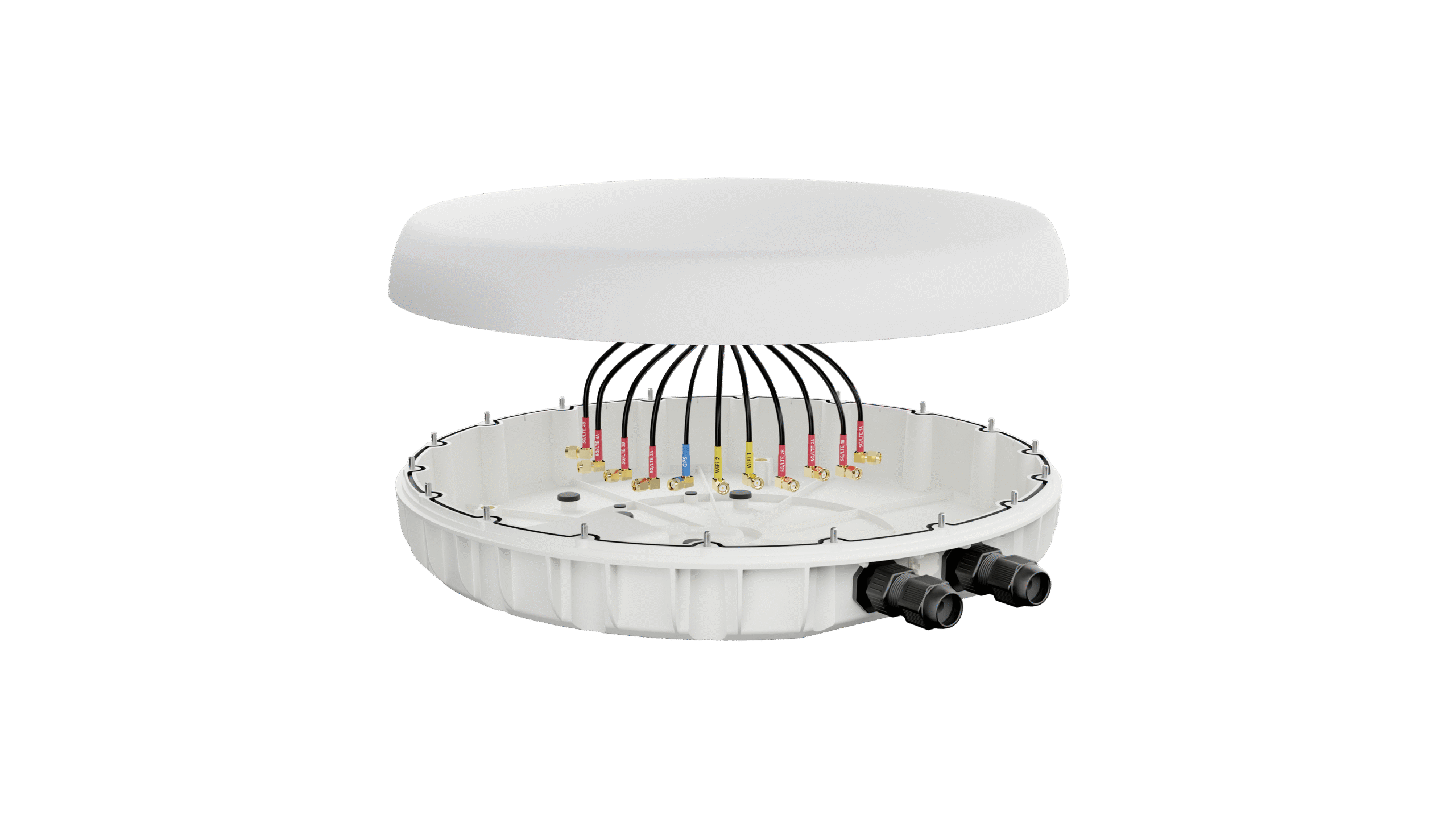

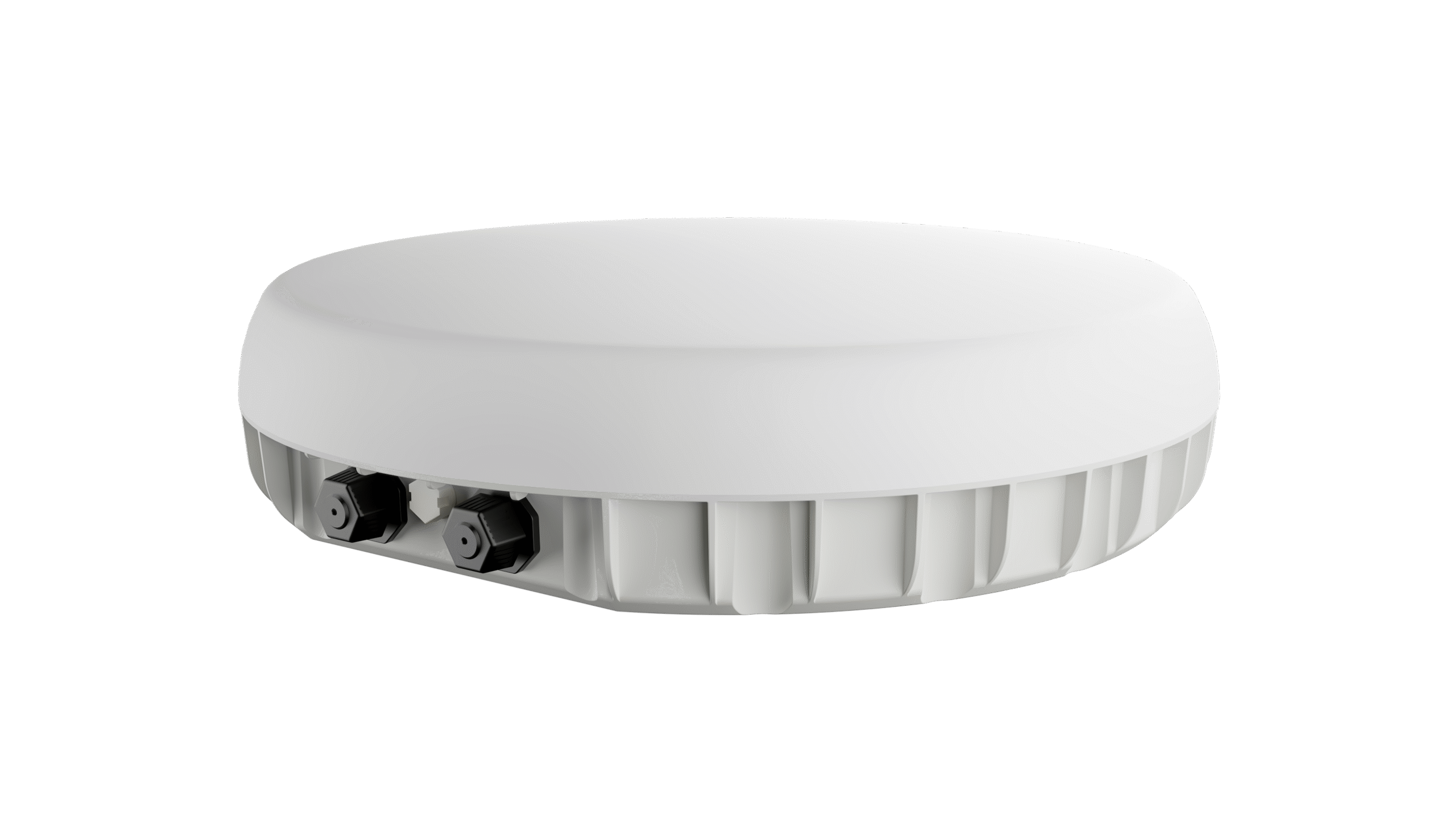

Antenna MAX Duo
Twice the Connectivity. One Seamless Enclosure.
Integrated Dual-Modem or Dual-Router Antenna Housing
OVERVIEW
• MAXed Out Synergy
Featuring 8x 5G/LTE, 2x Wi-Fi, and GPS antenna elements, the Antenna MAX Duo delivers reliable connectivity using two modems housed in a single, ruggedised enclosure. The integrated design removes the need for external RF cabling, reducing signal loss and setup complexity. Supported dual-modem Peplink router setups include: [ 2x BR1 Pro 5G ]* *Splitter MAX is required to provide power when more than one router is used. Using the Splitter MAX, both connectivity and power are managed through a single PoE cable, simplifying installation and reducing cable clutter. Suggested cable path for dual-router setups: 1. PoE Ethernet enters the enclosure and connects to the Splitter MAX 2. Splitter MAX powers both routers 3. Data flows from the Splitter MAX to Router 1 LAN, then from Router 1 WAN to Router 2 LAN 4. Enable Synergy Mode to allow seamless bonding and smart routing between both routers
• MAXed Out RuggednessBuilt to endure the elements, the Antenna MAX Duo is engineered for harsh environments with a UV-stable, waterproof IP67-rated enclosure and flame-retardant, UV-resistant plastics. Compliant with MIL-STD 810F salt spray standards, it’s ready to perform reliably on land, at sea, and on the move.
• MAXed Out FlexibilityWhether installed on a vessel, vehicle, or fixed location, the Antenna MAX Duo adapts to your deployment. Set it up how you see fit with multiple mounting options: Surface Mount Pole Mount (vertical or horizontal) Compatible with standard 3rd party maritime VSAT dome mounts (not included in package)
• MAXed Out SavingsThe Antenna MAX Duo delivers unmatched value by combining high-performance antenna arrays, robust protection, and dual-modem support into a single, compact enclosure. It’s a space-efficient, time-saving, cost-effective, and performance-maximising solution for maritime, mobile, enterprise, and remote deployments. |
SPECIFICATIONS
Cellular
• Antenna Elements: 8 elements
• Peak Gain & Frequencies:
5.6dBi: 617-960MHz
6.5dBi: 1410-2700MHz
8.1dBi: 3400-4400MHz
7.4dBi: 5000-6000MHz
• VSWR: < 2.5 over 95% of the band
• Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
• Connectors: Right angle SMA male
GPS
• Frequency Range: 1575-1602 MHz
• Peak Gain:
0.9dBi@1575MHz
0.8dBi@1602MHz
• VSWR: < 2.0
• Gain: LNA: 27 ±3dB
• Noise Figure: 2.5dB
• Operating Voltage: 3.3V
• Power Consumption: 10 ±3.0mA
• Connectors: Right angle SMA male
Wi-Fi
• Antenna Elements: 2 elements
• Peak Gain & Frequencies:
5.4dBi: 2400-2500MHz
7.4dBi: 5000-6000MHz
• VSWR: < 2.5
• Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
• Connectors: Right angle RP-SMA male
Mounting
• Supported Types: Surface, Pole
Mechanical
• Product Dimensions:
4.82″ / 122.5 mm ‐ Height
16.83″ / 427.5 mm ‐ Diameter
• Packaged Dimensions:
21.97″ x 25.51″ x 16.46″ /
558 x 648 x 418 mm
• Enclosure Material: UV stable PC
Environmental, Compliance
• IP Rating: IP67
• Operating Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Storage Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Compliance: ROHS, REACH, WEEE
• Enclosure Flammability: UL 94 V-0 (1.47 mm)
• UV resistance: UL 746C (F1 long-term UV exposure)
• Salt Spray: MIL-STD 810F/ASTM 8117
Package Contents
• Package Contents:
Antenna MAX Duo
L-Mount Set
Router fixation screws
5pcs Rubber Support TNF-19
3pcs Rubber Support TF-039
3pcs RJ45 glands
2pcs RJ45 caps
1pcs Double sided 3M adhesive pad
1pcs Ethernet cable (9.84″ / 250mm)
1pcs Ethernet cable (14.96″ / 380mm)
ORDERING INFORMATION
| Product Code | Description |
| ANT-MAX-DUO | 8xLTE/5G, 2x Wi-Fi, 1xGPS 600-6000MHz, IP67, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), White |
TECHNICAL DRAWING
CELLULAR ANTENNA PERFORMANCE

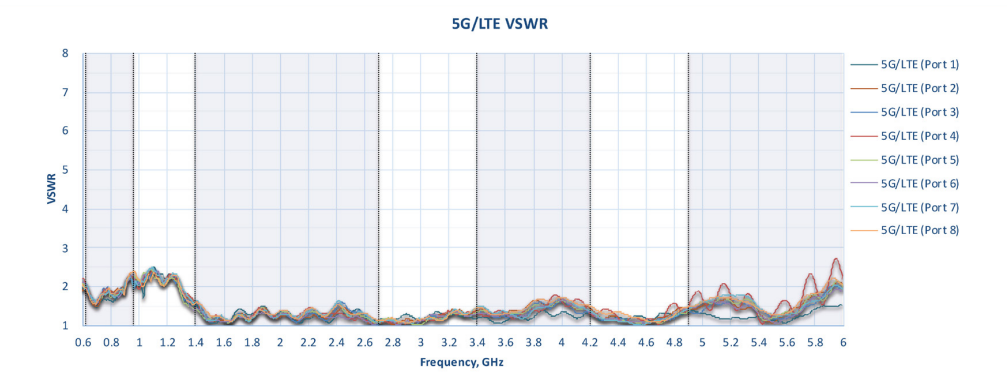

Cellular Antenna VSWR

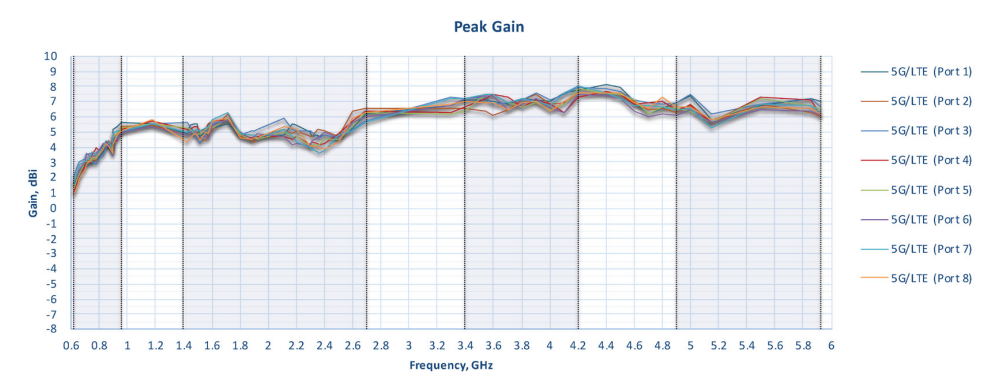

Cellular Antenna Gain

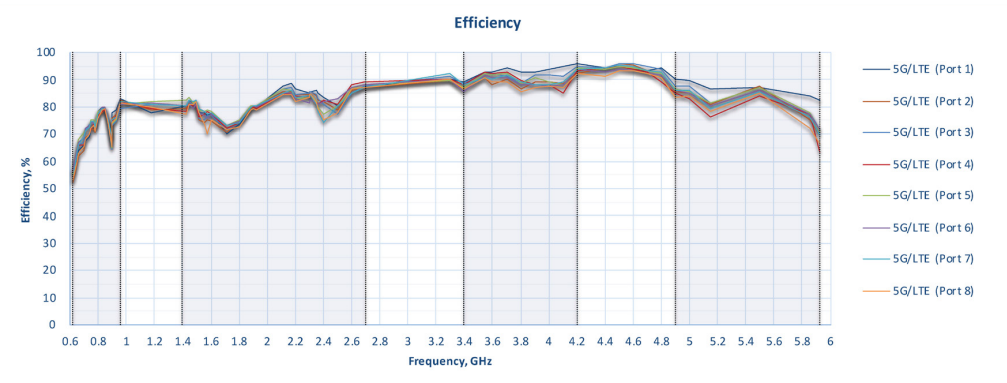

Cellular Antenna Efficiency
WI-FI ANTENNA PERFORMANCE

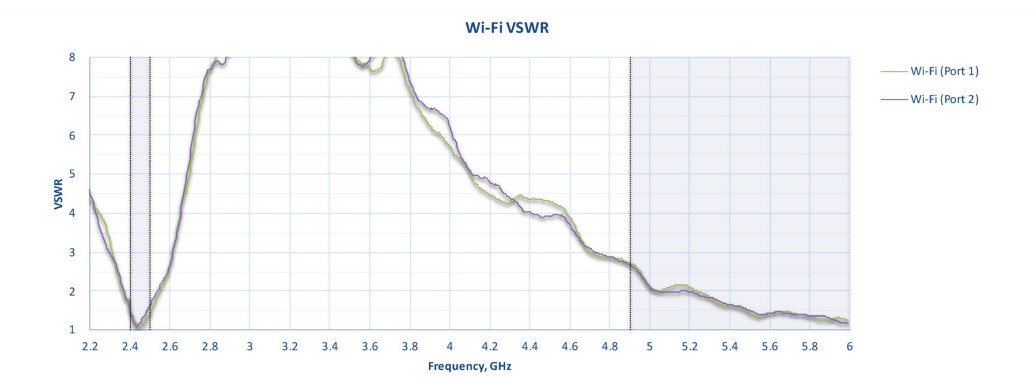

Wi-Fi Antenna VSWR

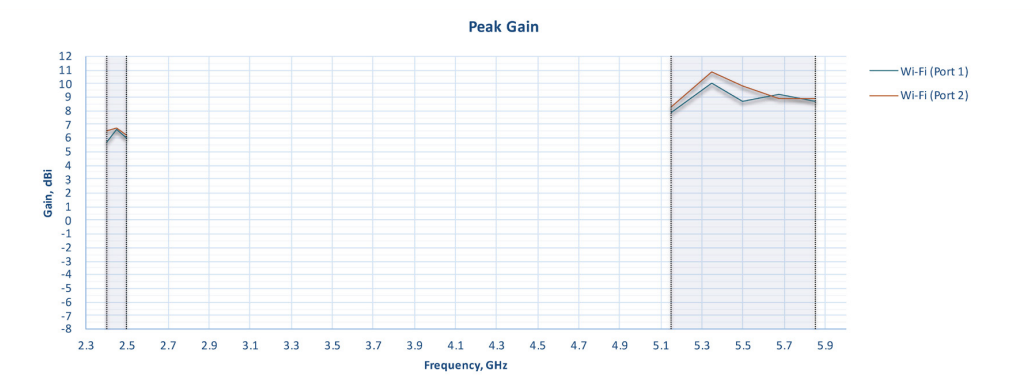

Wi-Fi Antenna Gain

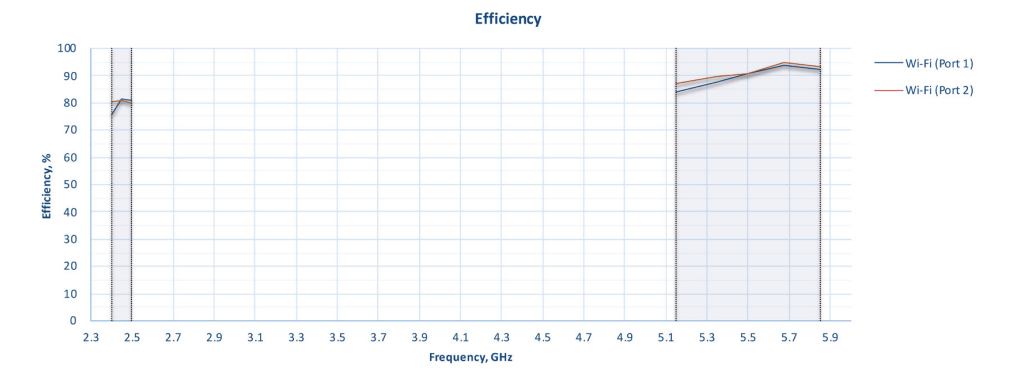

Wi-Fi Antenna Efficiency
CELLULAR & WI-FI ANTENNA PERFORMANCE - CELLULAR & WI-FI ANTENNA ISOLATION

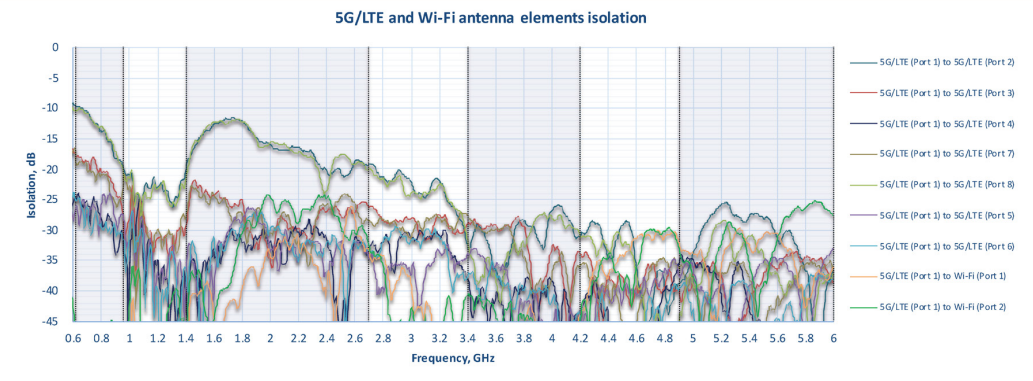

Cellular & Wi-Fi Antenna Isolation
CELLULAR & WI-FI ANTENNA PERFORMANCE- TYPICAL RADIATION PATTERN

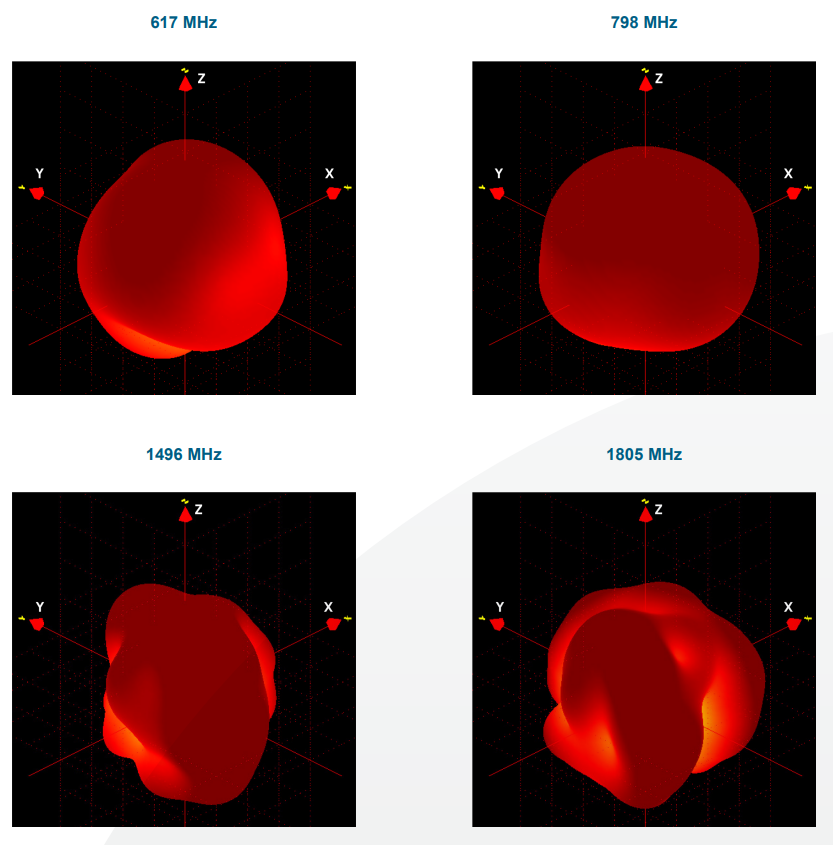

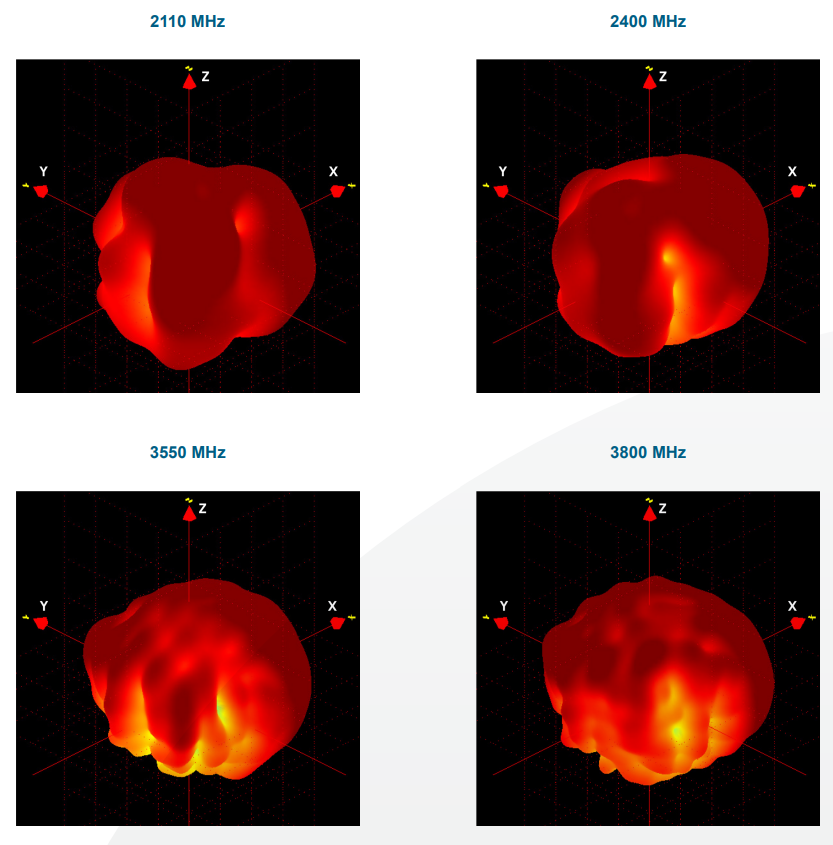

Typical Radiation Pattern
INSTALLATION RECOMMENDATION

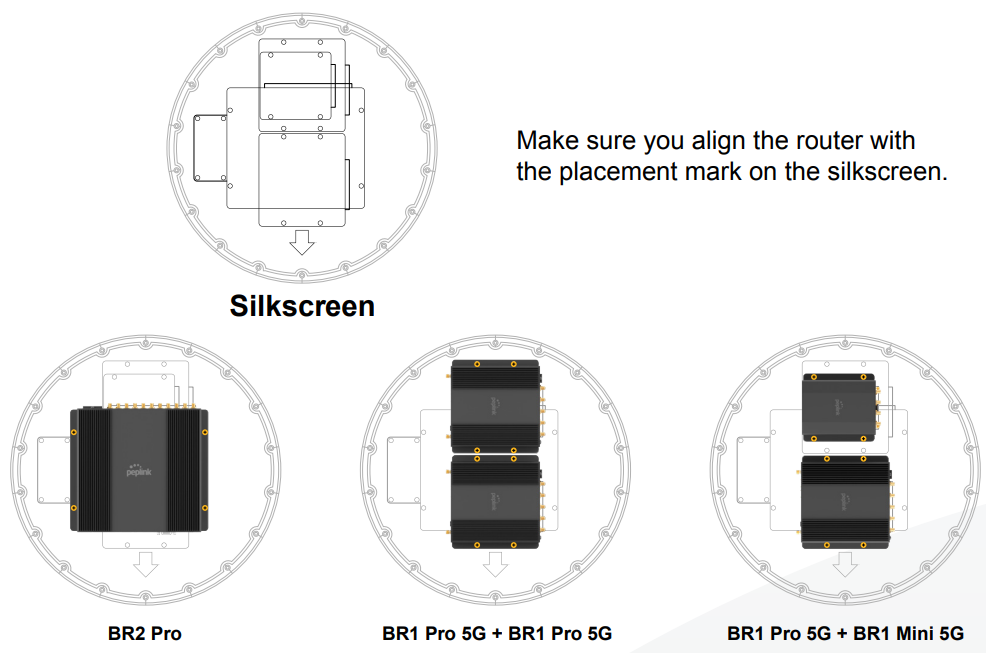

Position Router

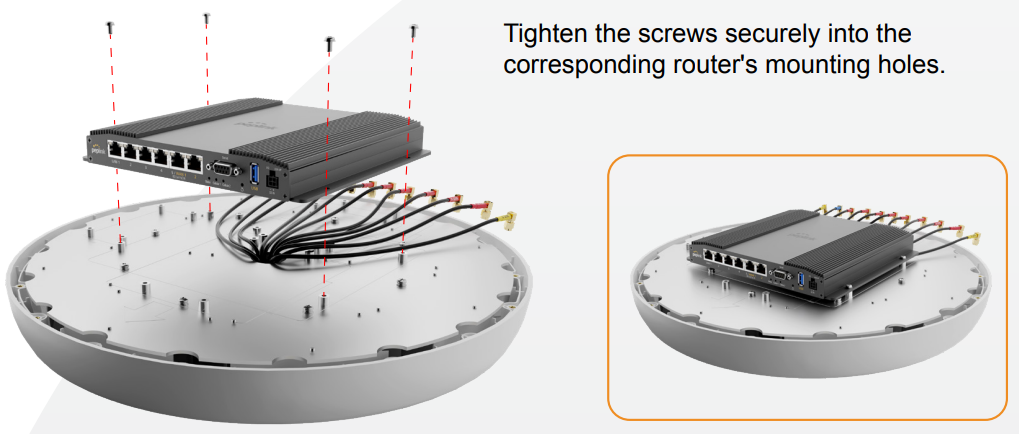

Install Router

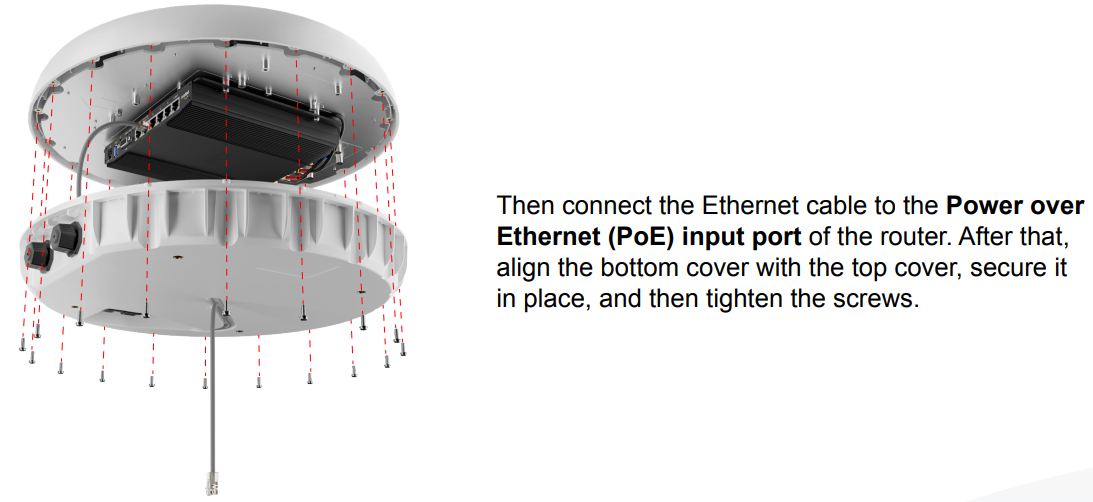

Attach Bottom Cover

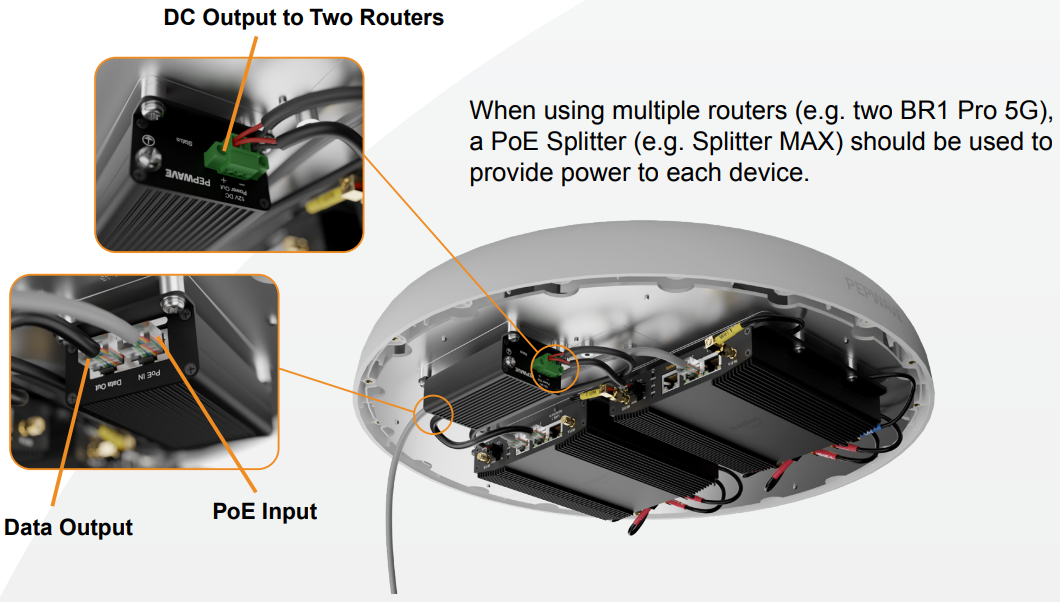

Install PoE Splitter

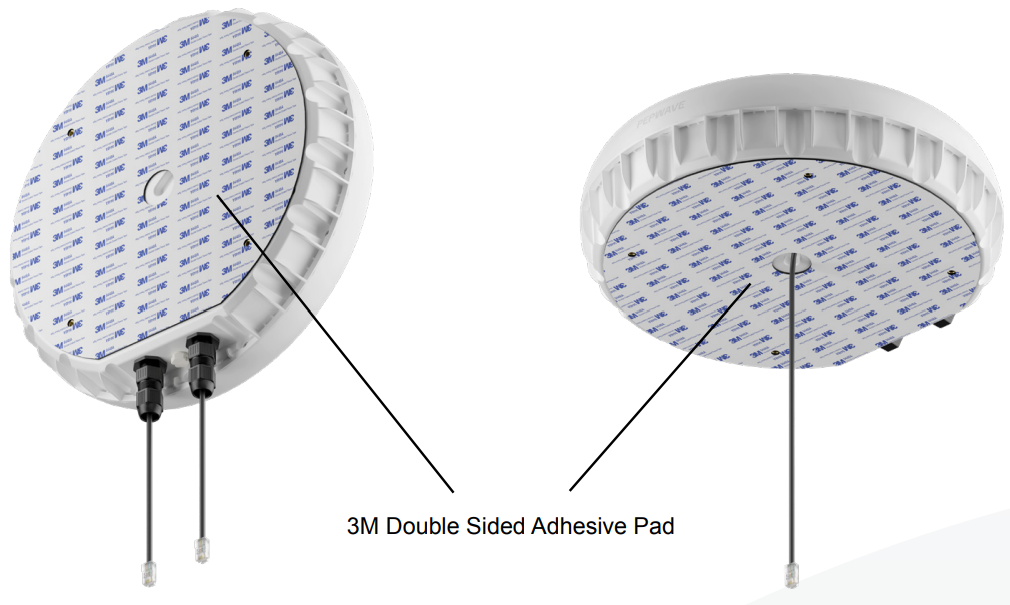

Surface Mount

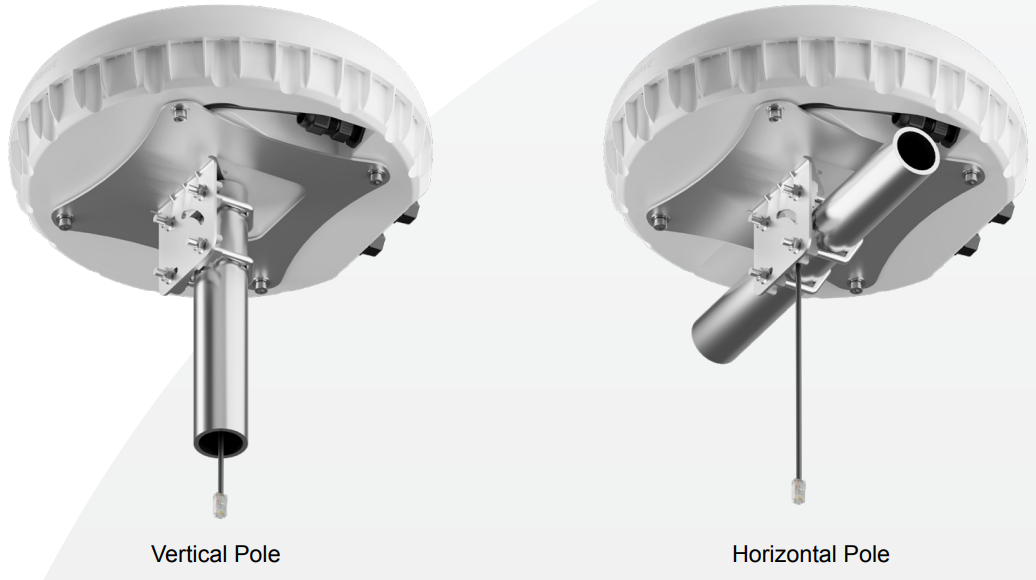

Pole Mount
PACKING LIST INFORMATION
Antenna
L-Mount Mount Set
Adhesive Pad
Cables
