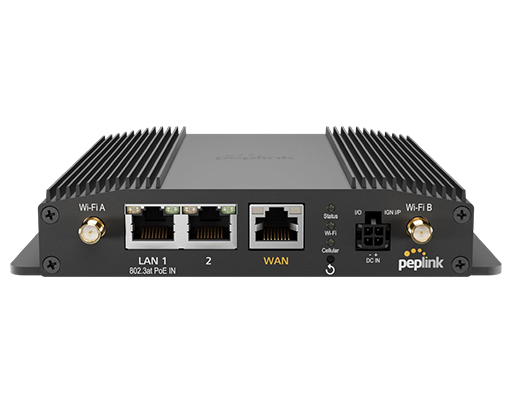

BR1 Pro 5G

Advanced 5G Performance Powered by the X65 5G modem, both routers support standalone (SA) and non-standalone (NSA) 5G modes with enhanced carrier aggregation capabilities, delivering increased throughput and faster speeds across public and private 5G networks.

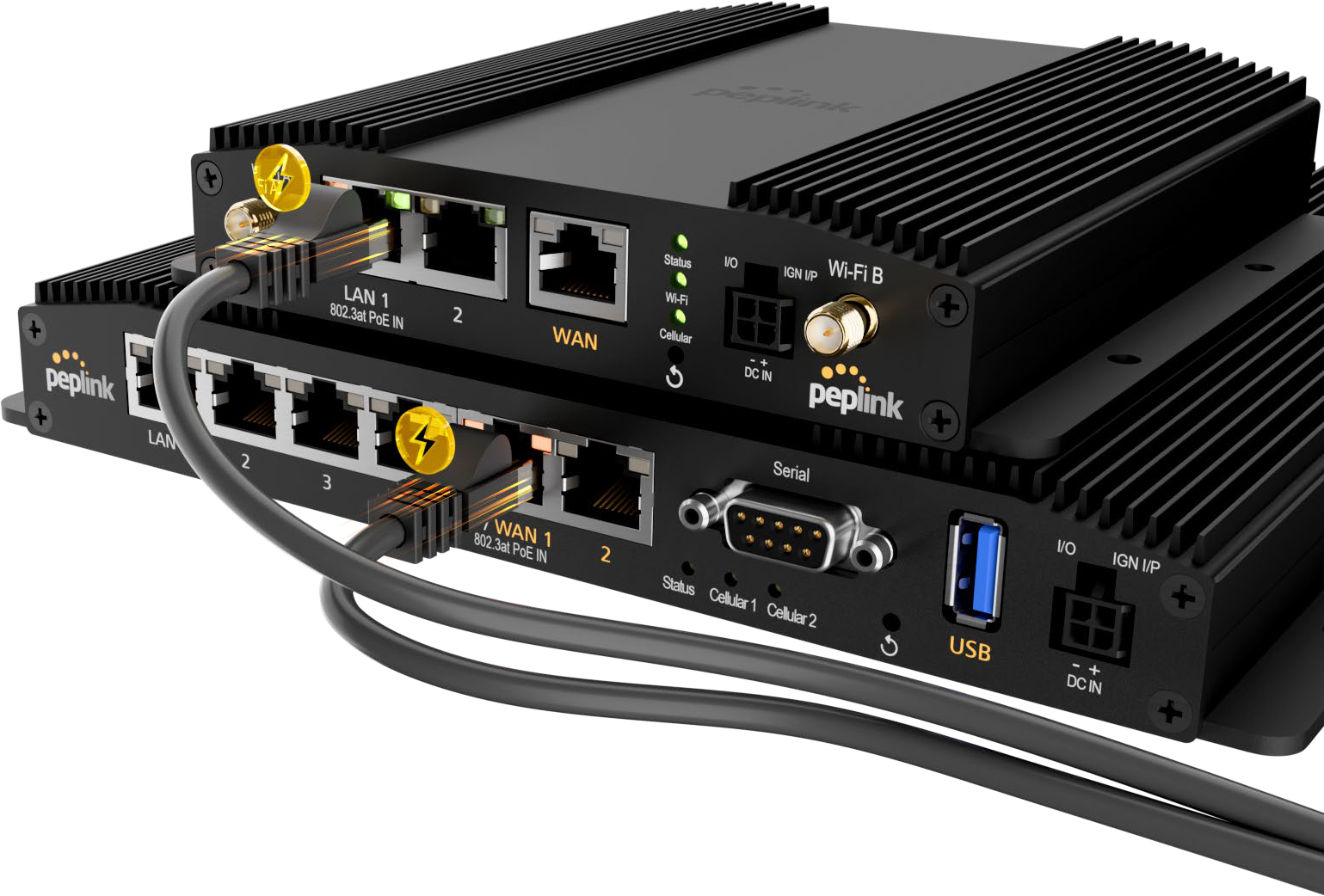

Streamlined, Flexible Deployment with PoE Power Input Power over Ethernet (PoE) input simplifies installation and cabling, allowing the BR1 to be placed in locations with better signal reception, without needing a nearby power outlet.

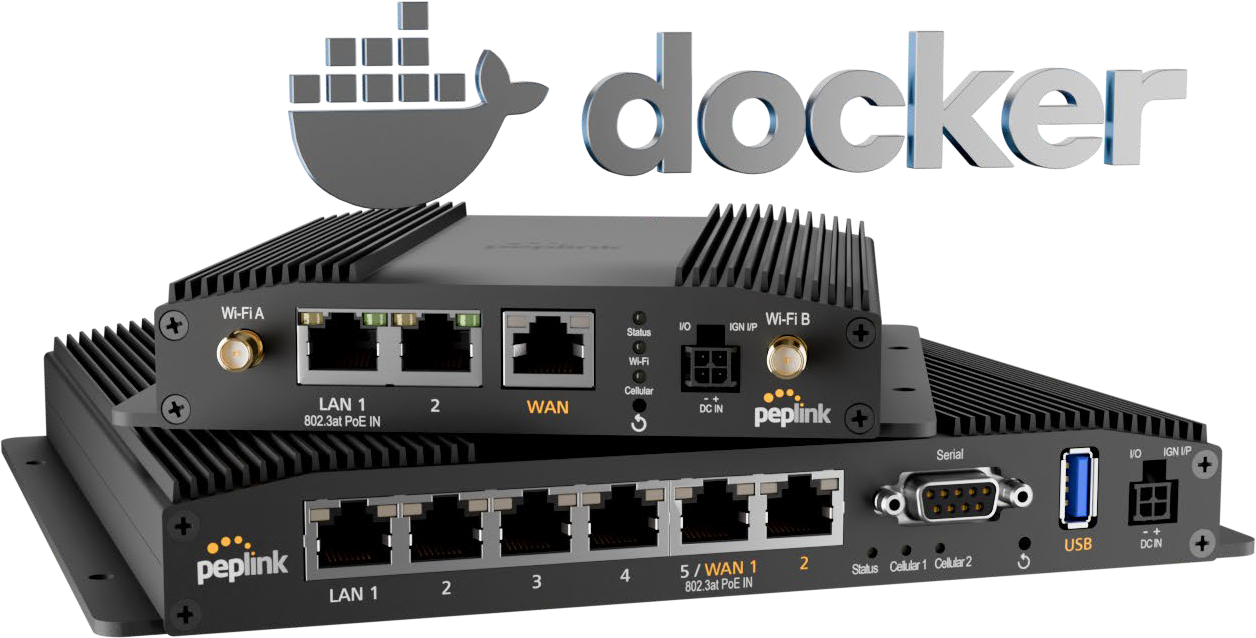

Smarter Operations with Edge Computing Run custom applications directly on the device with built-in Docker support and onboard storage, enabling agile performance, seamless integration, and streamlined deployment and management.



Government-Ready: TAA Compliant Meet federal and government requirements with full TAA compliance for secure and regulated deployments.



Priority for Public Safety Ideal for public safety environments, both routers carry AT&T FirstNet and T-Mobile T-Priority certifications and are Verizon Frontline verified, ensuring prioritised and reliable connectivity during mission-critical operations.

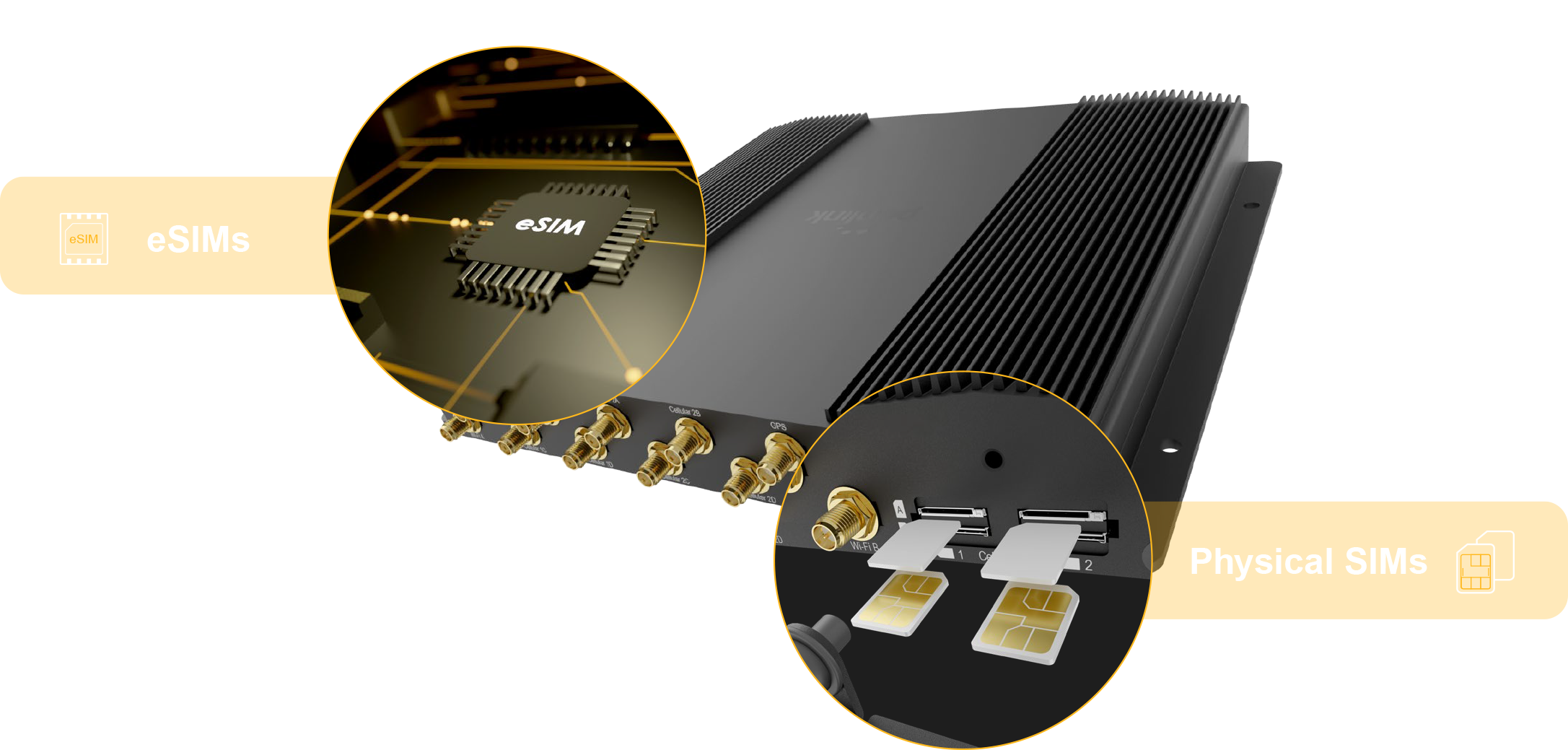

Flexible SIM choices for Any Situation Use eSIM for greater efficiency and instant connectivity, with the option to use physical SIMs when needed.



Seamless Failover for Starlink, Fiber and FWA Seamlessly integrate 5G with Starlink, fiber, and fixed wireless access (FWA) through SpeedFusion to deliver uninterrupted connectivity. Stay reliably online, always.

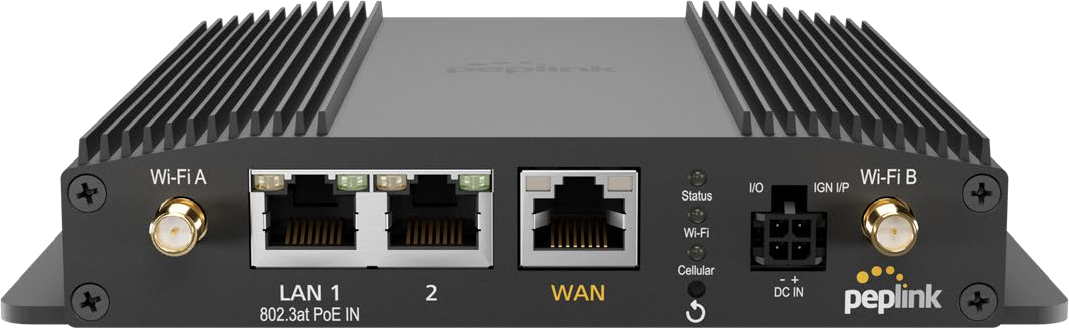

• WAN Interface
1x 10/100/1000/2500M Ethernet 1
1x Embedded Cellular Modem with Redundant SIM Slots

• LAN Interface
2x 10/100/1000M Ethernet 1

• Wi-Fi Interface
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 6, 2X2 MU-MIMO
Wi-Fi WAN and/or AP

• SpeedFusion features
Hot Failover, WAN Smoothing, Bandwidth Bonding

• Number of SpeedFusion VPN Peers
2 / 5 / 10 / 20 2

• Router Throughput
1 Gbps

• SpeedFusion VPN Throughput
No Encryption: 400 Mbps
256-bit AES: 200 Mbps

• Recommended Users
1 – 150

• Maximum Number of Controlled AP / Switch
30 / 50 3

• AP Controller
Standard

• Cellular Data Rate 4 (Downlink/Uplink)
5G: 4.1 Gbps / 900 Mbps,
CAT-20: 2 Gbps / 211 Mbps

• Edge Computing
Docker (8GB Internal Storage)

• Antenna Connector
4x SMA Cellular Connectors
2x RP-SMA Wi-Fi Antenna Connectors
1x SMA GPS Antenna Connector

• Power Input
AC Adapter: AC Input 100V – 240V / DC Output 12V
Power Port: 10V – 30V DC
Power over Ethernet 802.3at

• Power Consumption
8W (nominal), 19W (max.)

• Dimensions
5.78 x 5.68 x 1.15 inches / 146.8 x 144.3 x 29.3 mm

• Weight
1.59 pounds / 720 grams

• Operating Temperature
-40°– 149°F / -40°– 65°C

• Humidity
15% – 95% (non-condensing)

• Certifications
FCC, CE, RoHS,
E-Mark
EN61373 Shock and Vibration Resistance
EN50155 Railway Applications
Electronic Equipment used on Rolling Stock
EN61000 Electromagnetic Compatibility
EN45545-2 Railway applications – Fire protection
MIL-STD-810H Method 514.8

• Warranty
1-Year Limited Warranty

• Package Content
1x BR1 Pro 5G
4x LTE/5G Antennas
2x Dual Band Wi-Fi Antennas
1x GPS Active Antenna
1x 12V 2A 4 Pin Power Supply
(ACW-632)

• SIM Options
Nano-SIM (4FF)
Peplink eSIM
BYO eSIM (2 profiles)
Remote SIM from SIM Injector
FusionSIM

1. Ethernet ports include surge and ESD protection circuits to protect against over-voltage
transients.
2. 5 SpeedFusion VPN Peers are enabled with PrimeCare Subscription. 10 or 20 SpeedFusion
VPN peers can be enabled with software license (PVN-LC-10 and PVN-LC-20).
3. Available as a licence add-on (AP-LC-50).
4. Maximum theoretical data rates.

Product Code: MAX-BR1-PRO-5GK-T-PRM
Description: BR1 Pro 5G
Embedded Modems: 1x 5G
Carrier/Categories: Global/5G
5G Bands: 5G (NSA) Sub 6Ghz: n1, n2, n3, n5, n7, n8, n12, n20, n28, n38, n41, n66, n71, n77, n78, n79
LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B46, B48, B66, B71

Product Code: PRM-C-1Y / PCP-C-1Y
Description: PrimeCare C / PrimeCare+ C (1-Year)

Product Code: PRM-C-2Y / PCP-C-2Y
Description: PrimeCare C / PrimeCare+ C (2-Year)

Product Code: PRM-C-4Y / PCP-C-4Y
Description: PrimeCare C / PrimeCare+ C (4-Year)

Product Code: ACW-634
Description: 10ft / 3m DC Power Cable

Product Code: ACW-643
Description: Vehicle Cigarette to Molex Power Cable

Product Code: ACW-791
Description: Peplink 4-Pin Micro-Fit to USB-C Power Cable

Product Code: ANT-MB-42G-S-B-6
Description: Mobility 42G – 4×4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (Black)

Product Code: ANT-MB-42G-S-W-6
Description: Mobility 42G – 4×4 MIMO 5G Ready Cellular and Wi-Fi Antenna System with GPS (White)

Product Code: ANT-MAX-S
Description: Antenna MAX S – IP-rated integrated antenna enclosure for hybrid cellular and Starlink Mini connectivity

Product Code: MAX-BR1-ADV
Description: IPsec X.509 Certificate License Key

Software
Peplink MAX Firmware

WAN
Support for PPPoE, Static IP, DHCP

WAN Link Health Check
Bandwidth Allowance Monitor
Support for Dynamic DNS services
WAN Port Convertible into LAN Port

LAN
DHCP Server for LAN Clients
Extended DHCP Option
DHCP Reservation
DNS Proxy for LAN Clients
VLAN on LAN Support

Security
Stateful Firewall
DoS Prevention
Web Blocking

Complete VPN Solution

SpeedFusion VPN/SpeedFusion
• Hot Failover
• Site-to-Site VPN
• 256-bit AES Encryption
• Pre-shared Key Authentication
• Dynamic Routing
X.509 Certificate Support*
IPsec VPN (Network-to-Network)^

Advanced QoS

Individual Bandwidth Limit

Application Prioritisation
• SIP, HTTPS, VPN QoS
• Custom Application QoS

Edge Computing
Support for Applications and Docker

Global Positioning System
Integrated GPS
Device Location Map
Location Tracking Data with InControl 2
Fleet Management with InControl 2

Networking
NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP

AP Controller
Support for Pepwave AP Series
Auto AP Discovery
Auto AP Firmware Management
AP Profile Configuration
Wi-Fi Usage Statistics

Captive Portal Support
Support for Wired LAN and Wireless LAN clients
Support RADIUS Authentication
Time and Usage Quotas on Open Access Mode
Built-in Customisable Splash Page

Device Management
Web Administrative Interface
Command Line Interface
InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3

* Feature is available as an upgrade (MAX-BR1-ADV).
^ IPsec VPN supports connection with Cisco, Juniper, Peplink, or Pepwave devices.
Trademarks and registered trademarks are the property of Rising Connection Pty Ltd, Peplink or
their respective owners. Specifications are subject to change without notice. Images shown may
vary slightly from the actual product.
