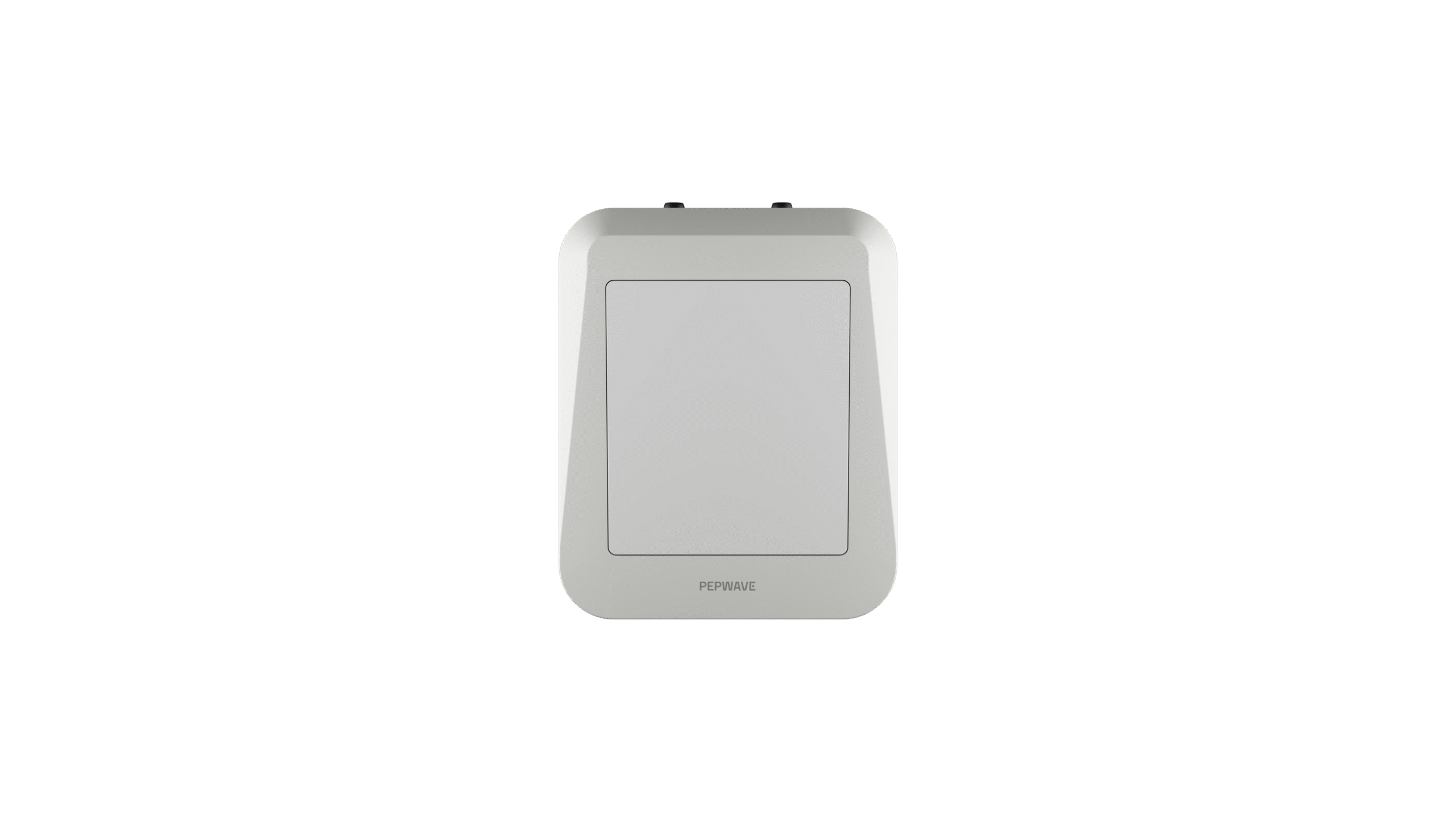

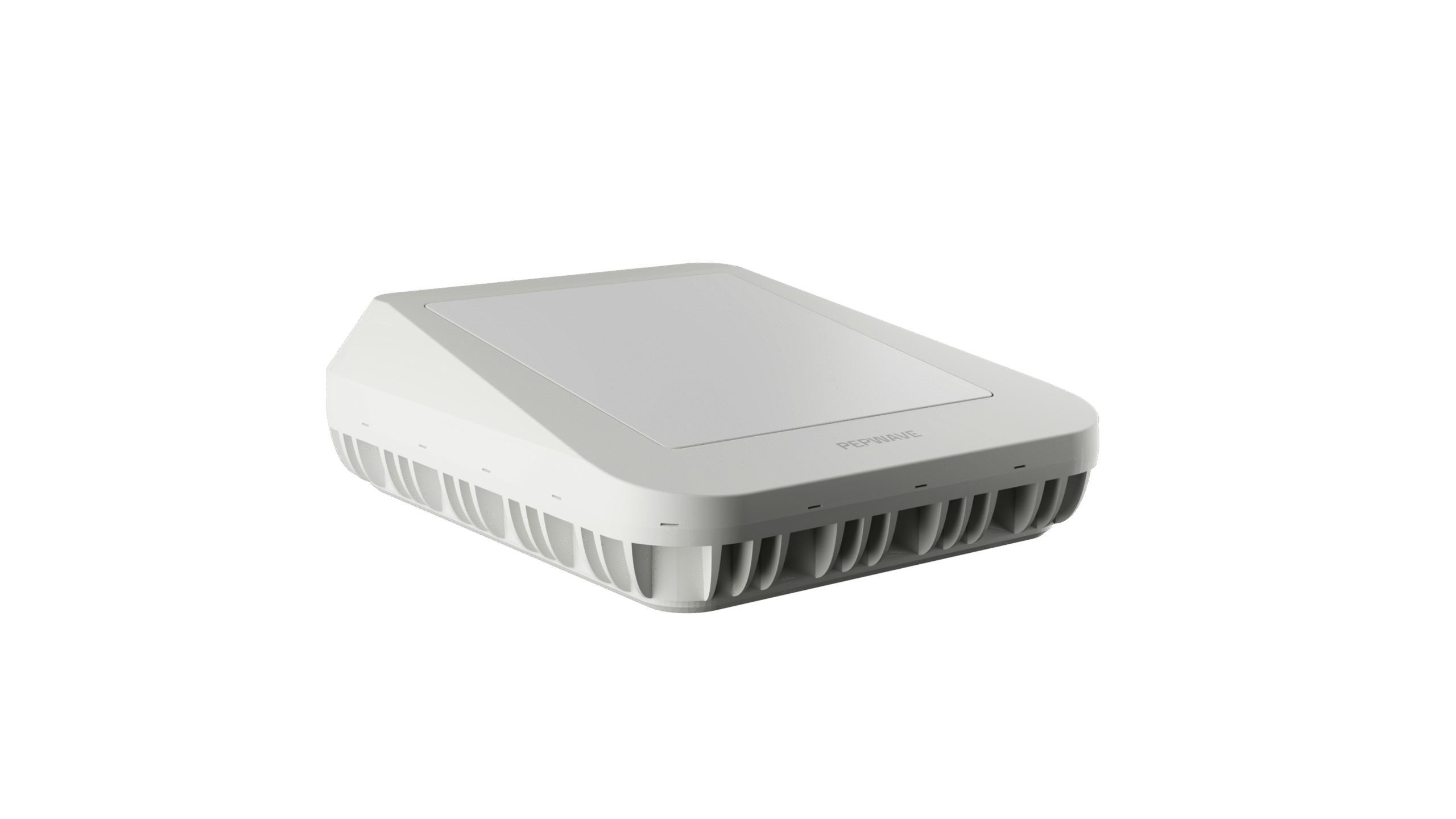

Antenna MAX S

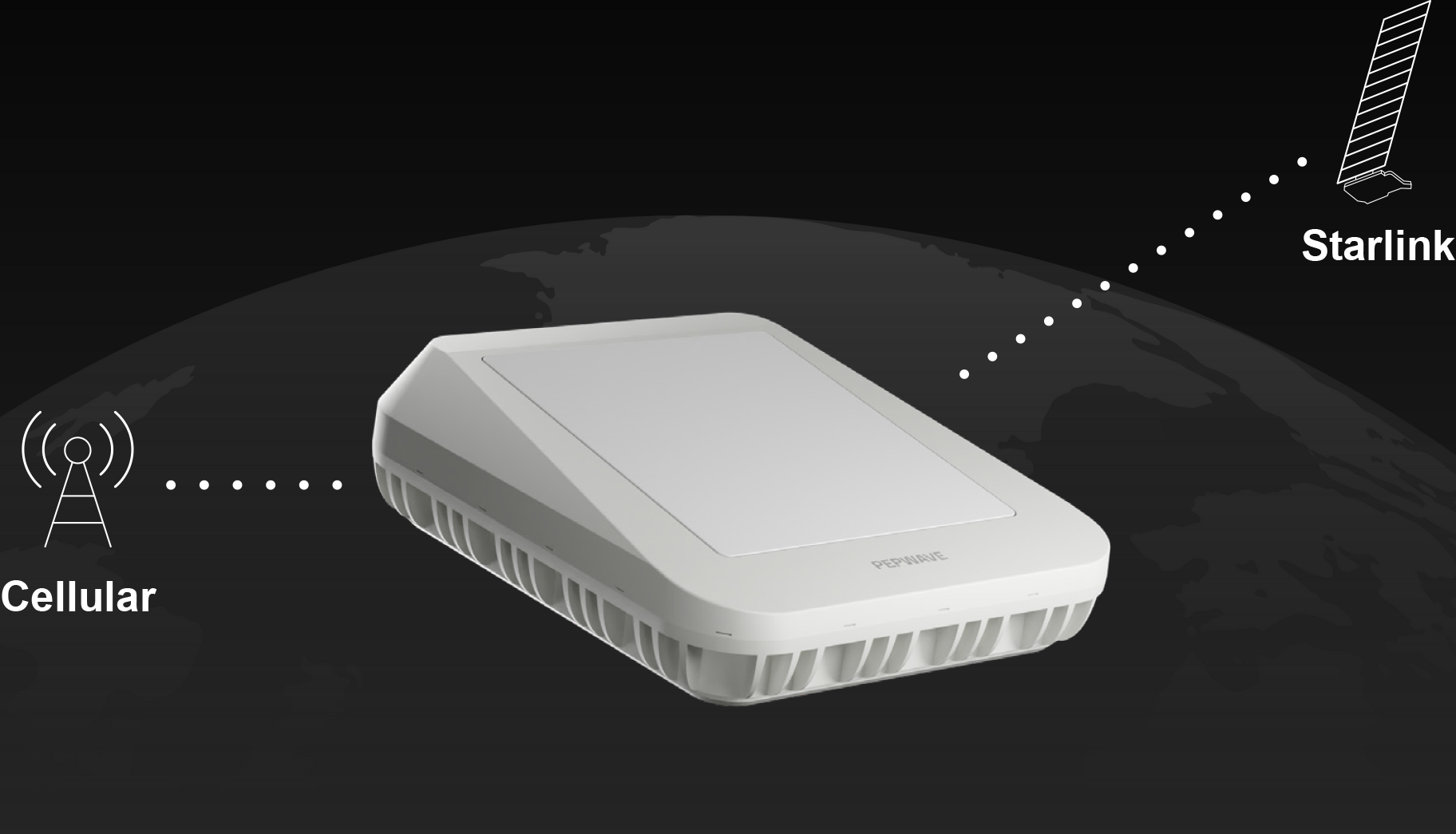

• Bundled Peplink + Starlink solution
• Easy Sterlink Mini* Integration
• Supports BR1 Mini / BR1 Pro 6G
• 4x 5G/LTE + 2x WI-Fi antennas, IP67-rated
• Powered via PoE with a single cable

* The Starlink Antenna Mini is NOT included in the kit.

Cellular

• Antenna Elements: 4 elements
• Peak Gain & Frequencies: 5.7dBi: 617-960MHz, 6.8dBi: 1410-2700MHz, 8.9dBi: 3300-4400MHz, 7.3dBi: 5000-6000MHz
• VSWR: < 2.5 over 95% of the band • Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
• Connectors: Right angle SMA male

GPS

• Frequency Range: 1575-1602 MHz
• Peak Gain: 0.9dBi@1575MHz, 0.8dBi@1602MHz
• VSWR: < 2.0 • Gain: LNA: 27 ±3dB
• Noise Figure: 2.5dB
• Operating Voltage: 3.3V
• Power Consumption: 10 ±3.0mA
• Connectors: Right angle SMA male

Wi-Fi

• Antenna Elements: 2 elements
• Peak Gain & Frequencies: 6.3dBi: 2400-2500MHz, 7.4dBi: 5000-6000MHz
• VSWR: < 3.0 • Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
• Connectors: Right angle RP-SMA male

Mounting

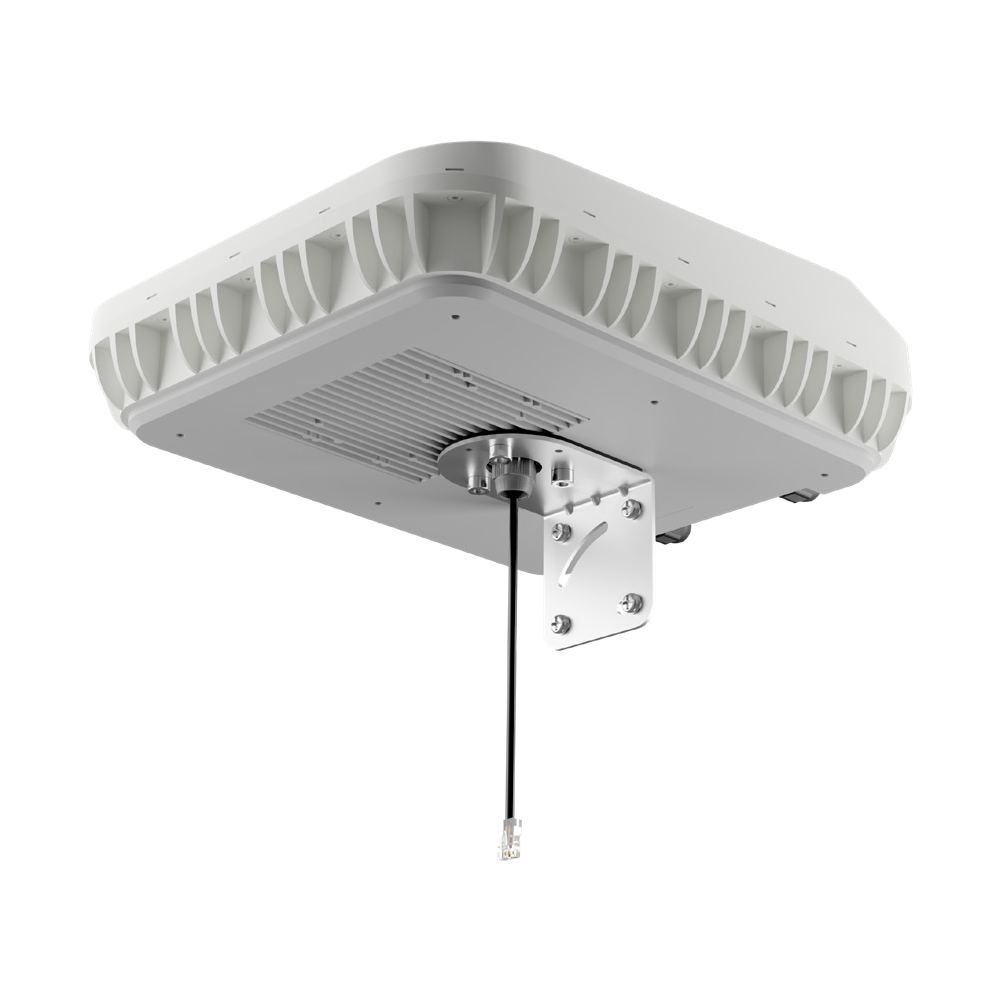

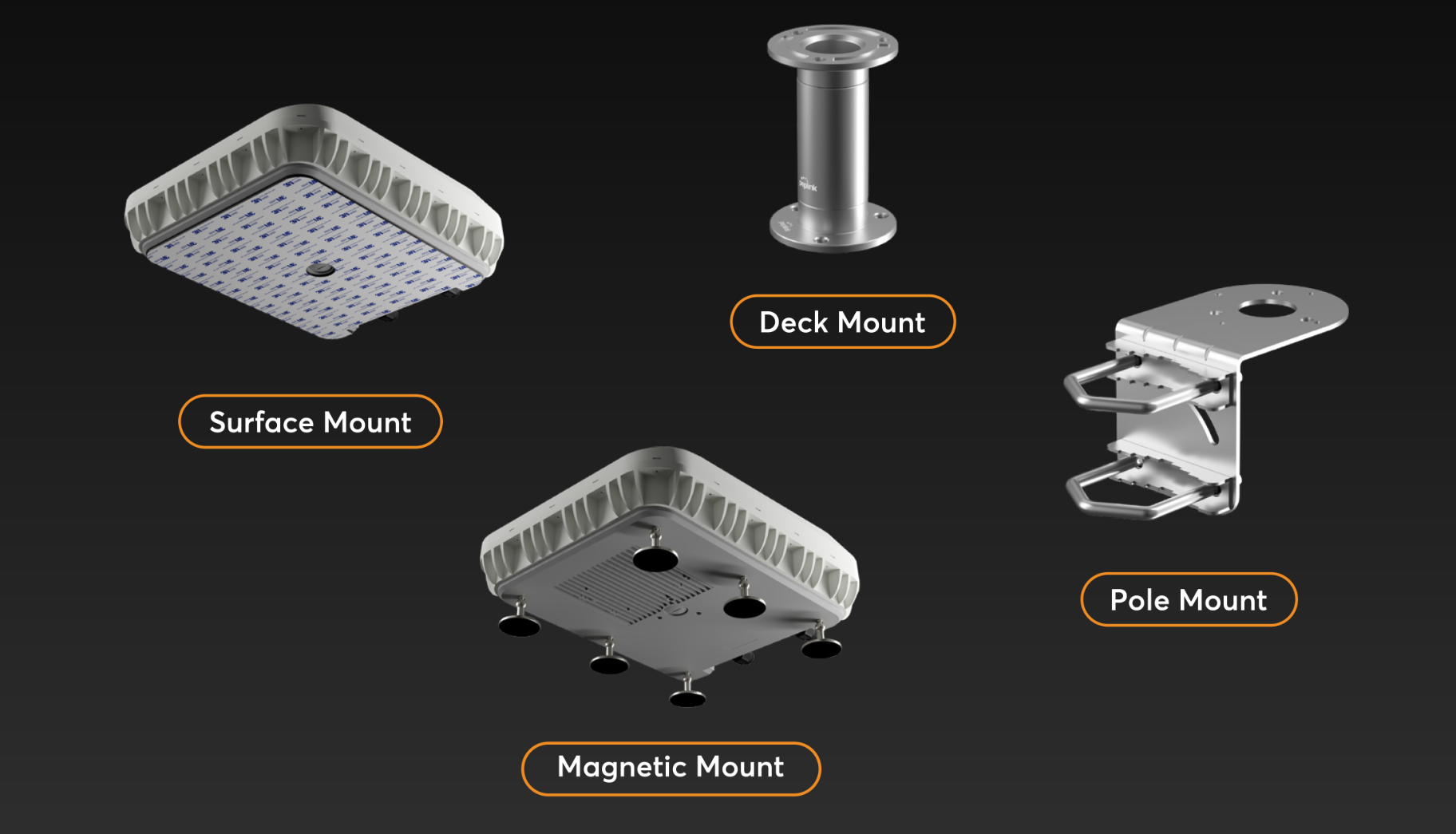

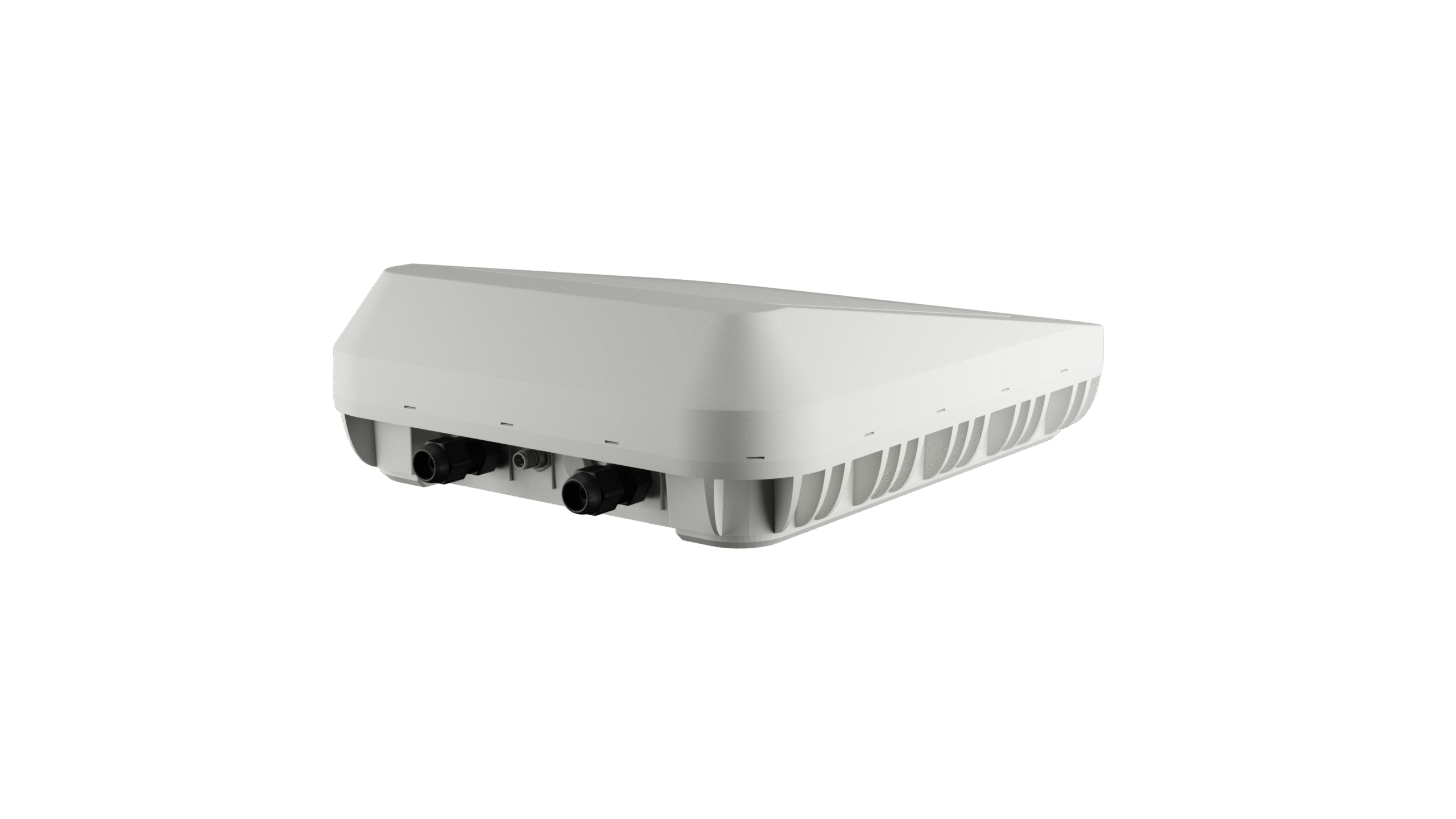

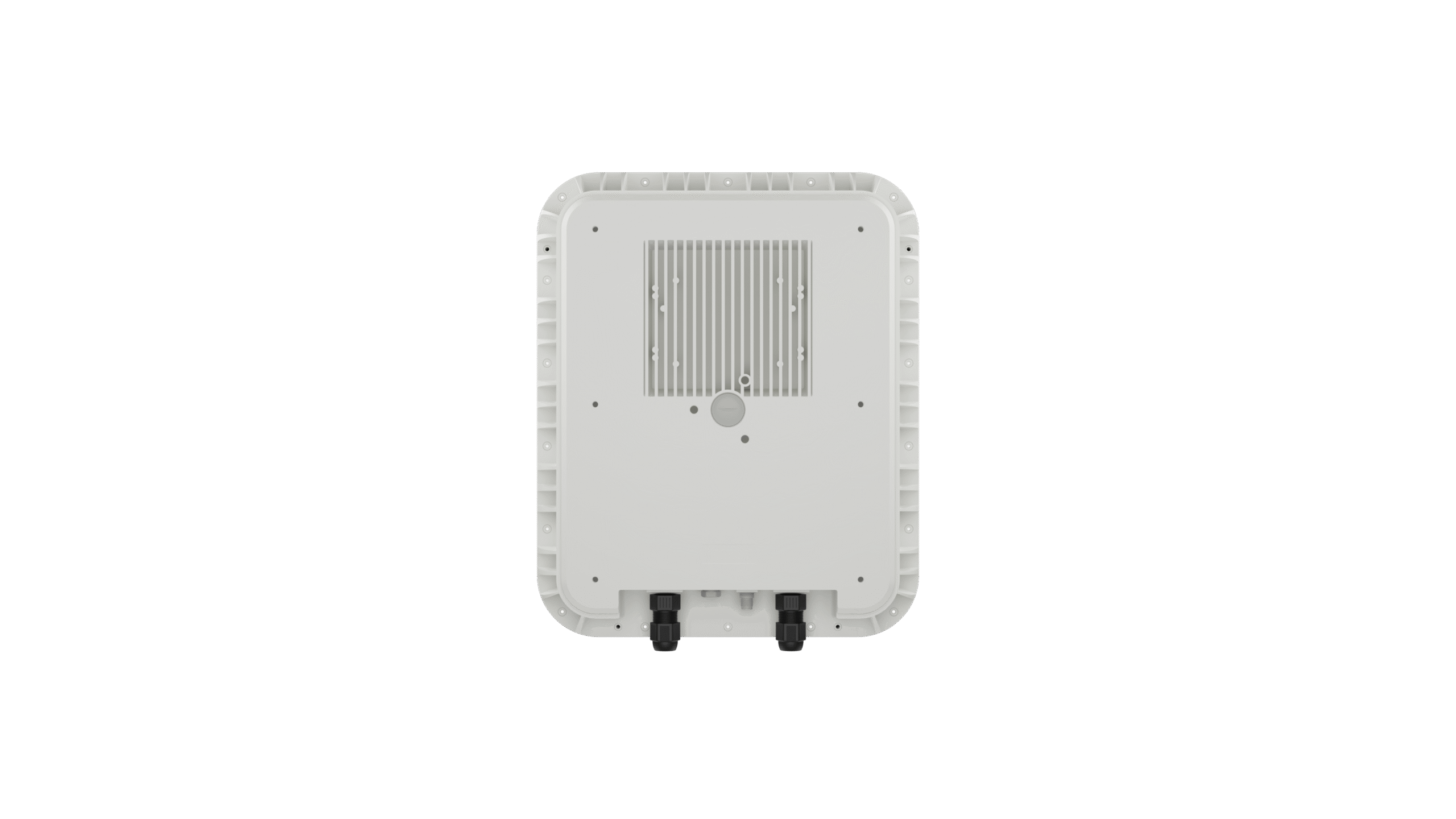

• Supported Types: Surface, Pole

Mechanical

• Product Dimensions: 17.6” / 448 mm – Length, 14.5” / 368 mm – Width, 5.3” / 135 mm – Height
• Packaged Dimensions: TBD
• Enclosure Material: UV stable PC

Environmental, Compliance

• IP Rating: IP67
• Operating Temperature: -40° – 80°C
• Storage Temperature: -40° – 80°C
• Compliance: ROHS, REACH, WEEE
• Wind Survivability: TBD
• Enclosure Flammability: UL 94 V-0 (1.47 mm)
• UV resistance: UL 746C (F1 long-term UV exposure)
• Salt Spray: MIL-STD 810F/ASTM 8117

Package Contents

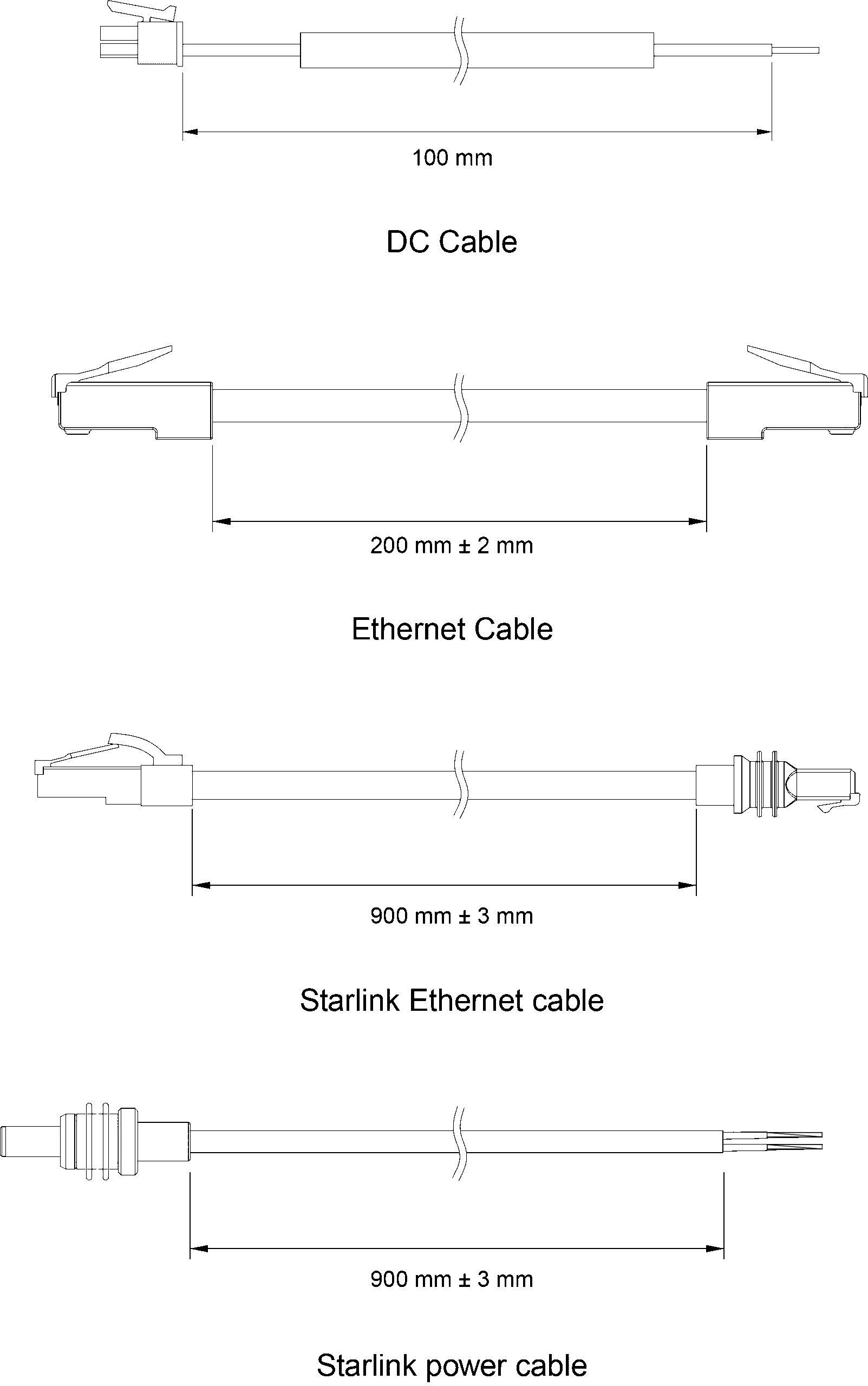

• Package Contents: Antenna MAX S, L-Mount Set, Power supply/splitter mounting set, Router fixation screws, 3pcs M25 cable glands, 1pcs M25 hole plug, 2pcs RJ45 glands, 2pcs RJ45 caps, 2pcs Hole plug, 1pcs Starlink power cable (31″ / 80cm), 1pcs Starlink Ethernet cable (31″ / 80cm), 1pcs Double sided 3M adhesive pad

Product Code	Description
ANT-MAX-S	TBD



Product Code	Description
ANT-MAX-S	TBD

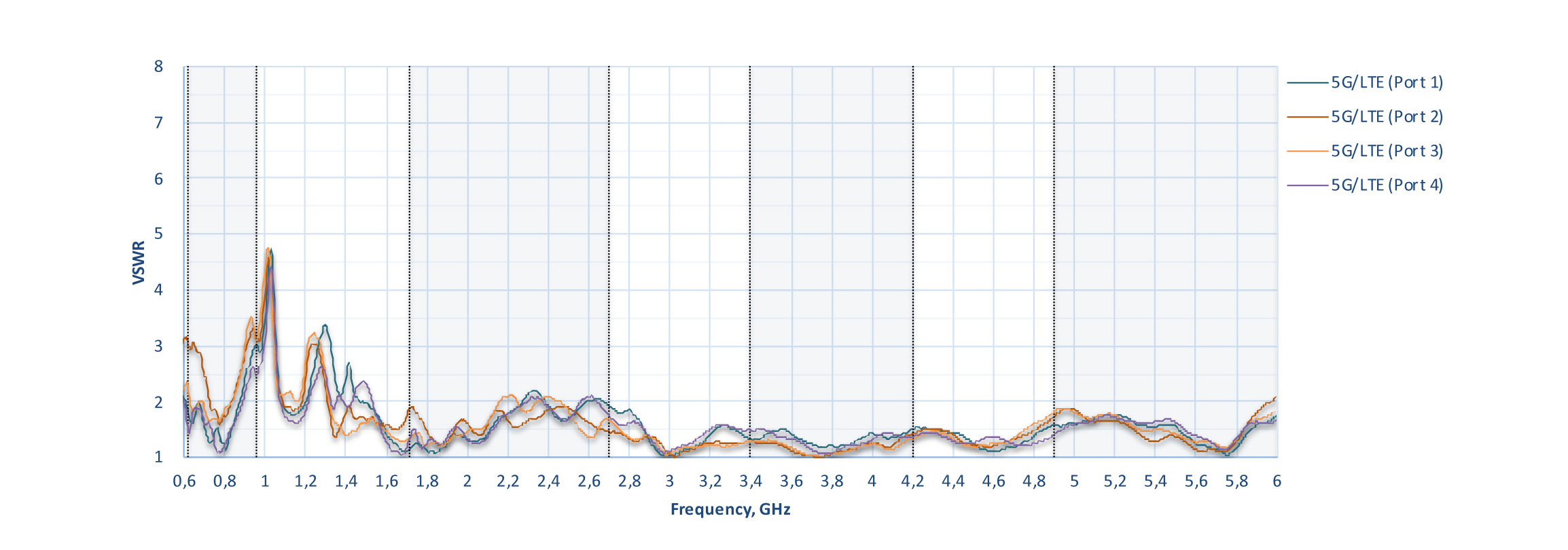

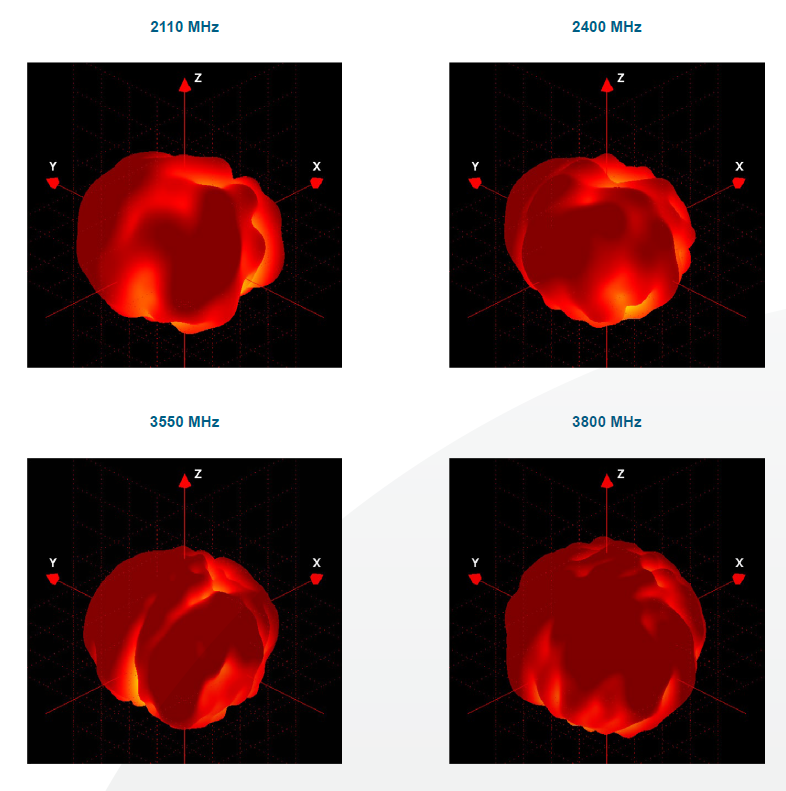

Cellular Antenna VSWR

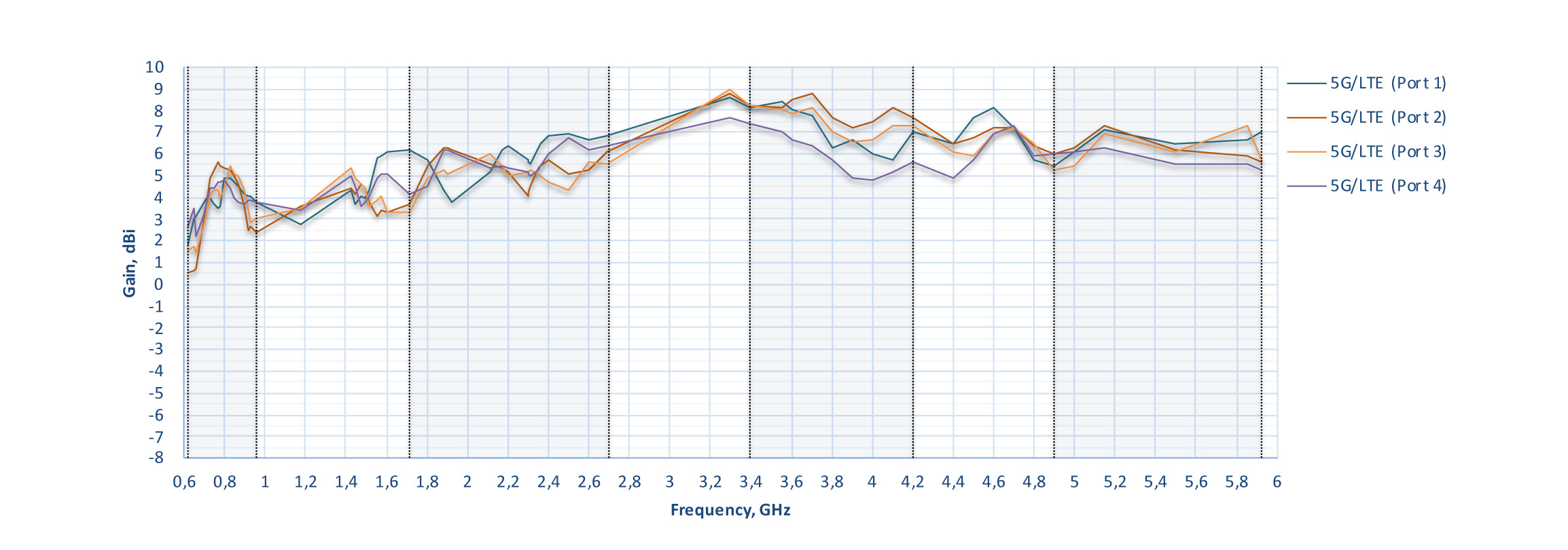

Cellular Antenna Gain

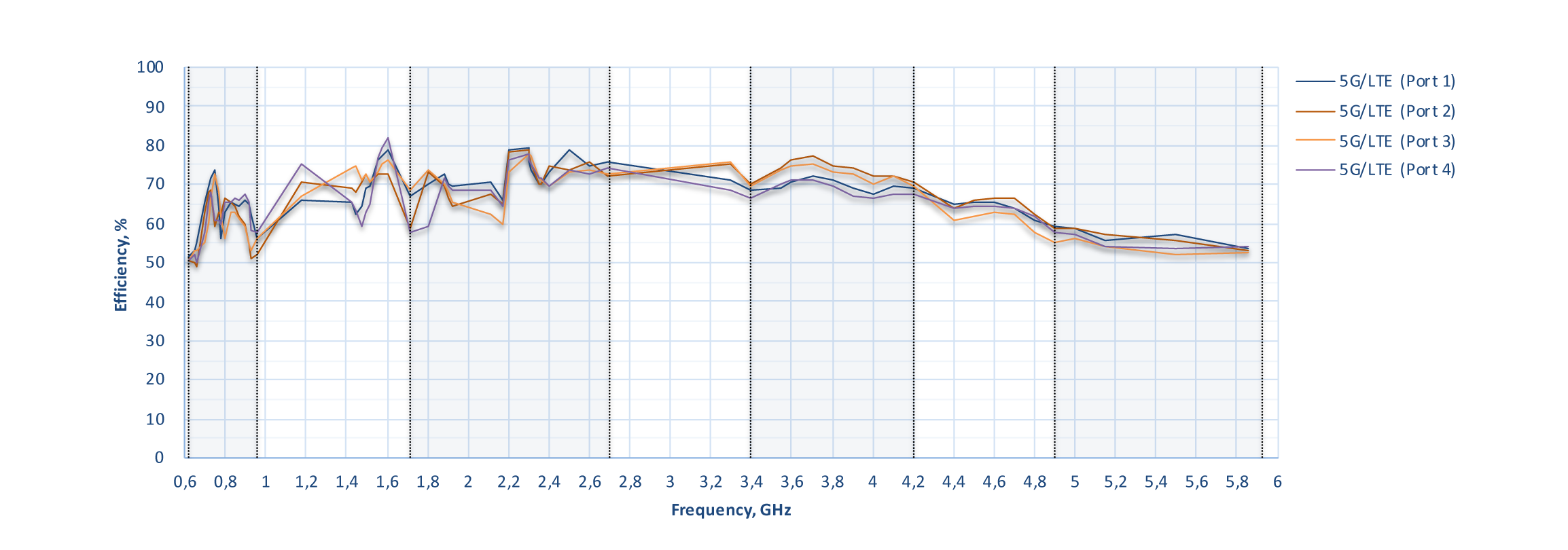

Cellular Antenna Efficiency

Wi-Fi Antenna VSWR

Wi-Fi Antenna Gain

Wi-Fi Antenna Efficiency

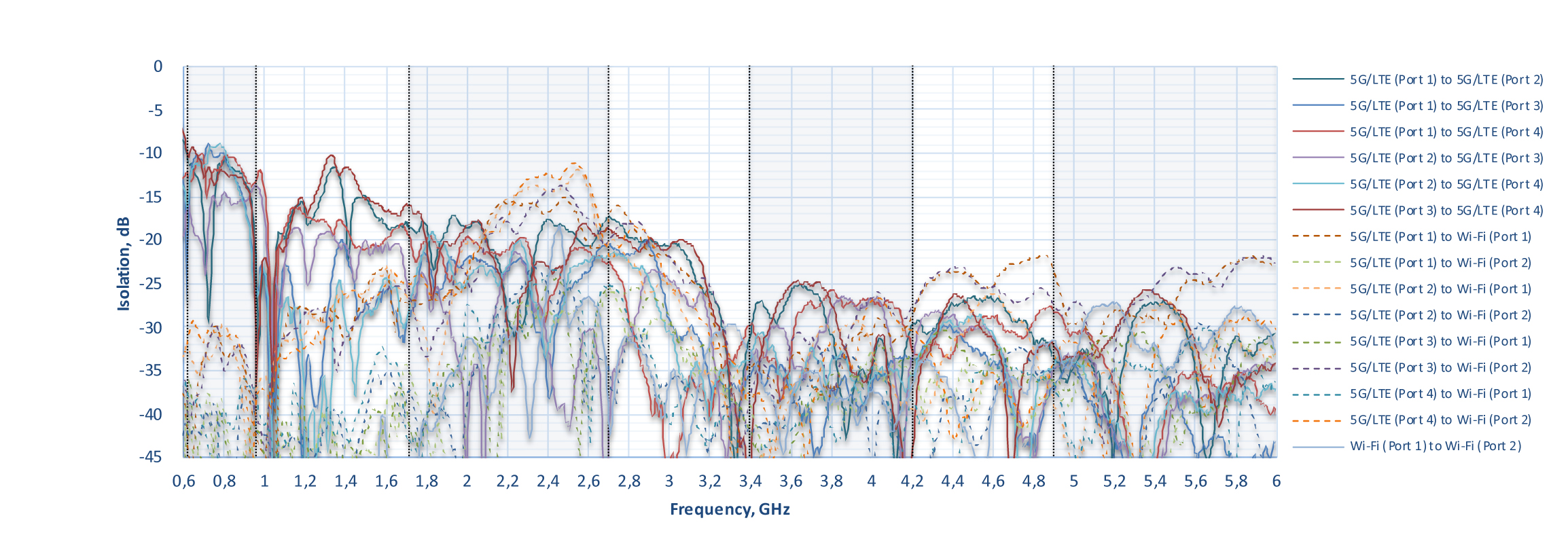

Cellular & Wi-Fi Antenna Isolation
