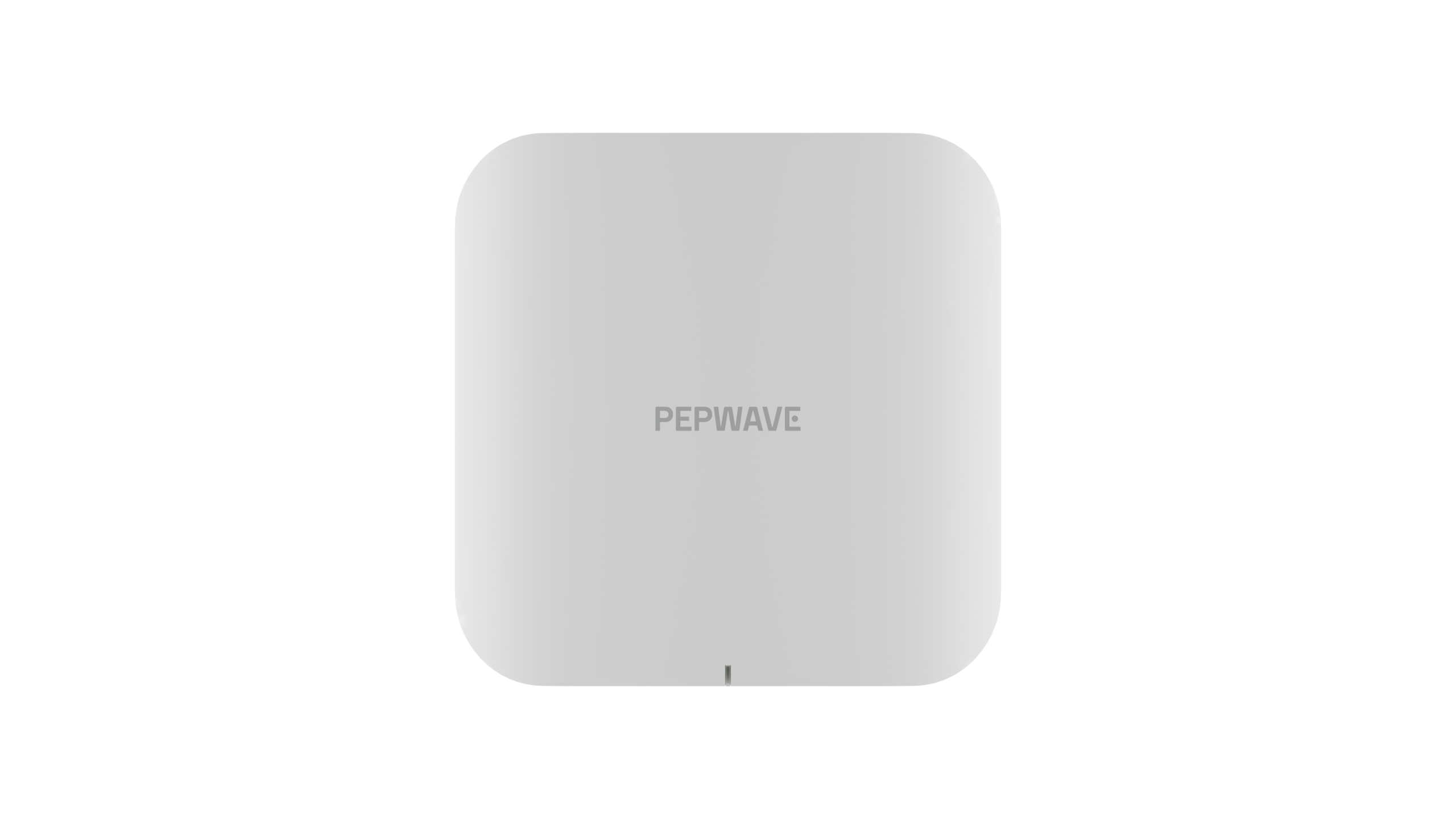

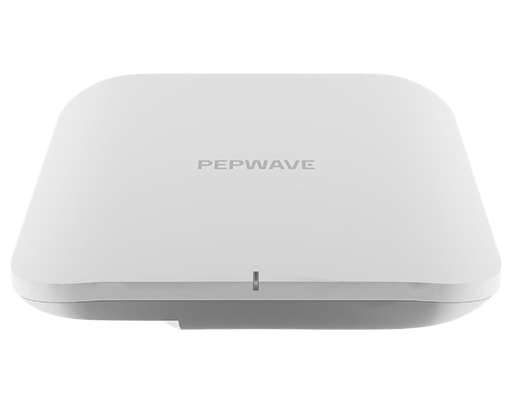

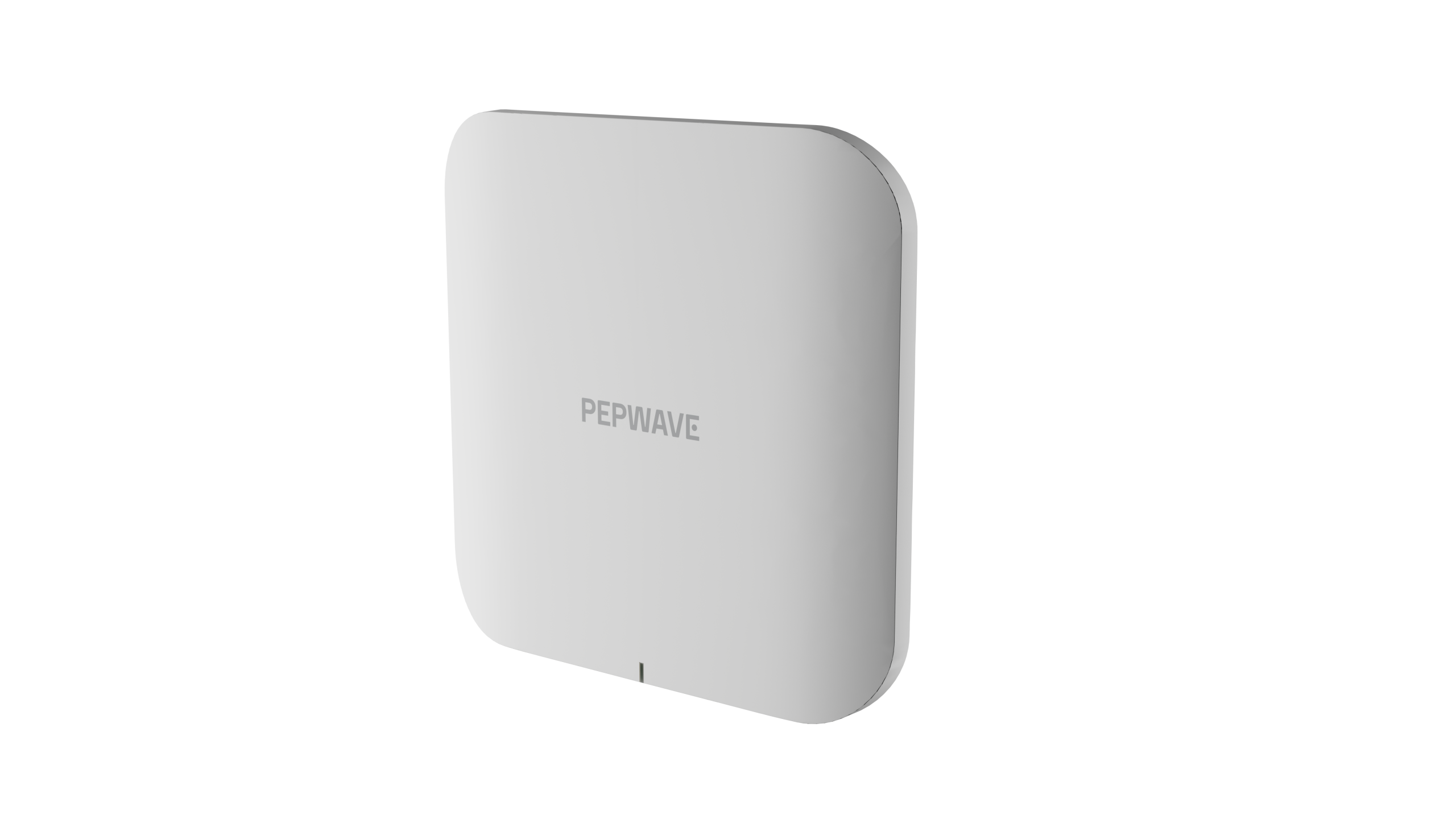

AP One Enterprise
AP One Enterprise
RCM Approval Pending

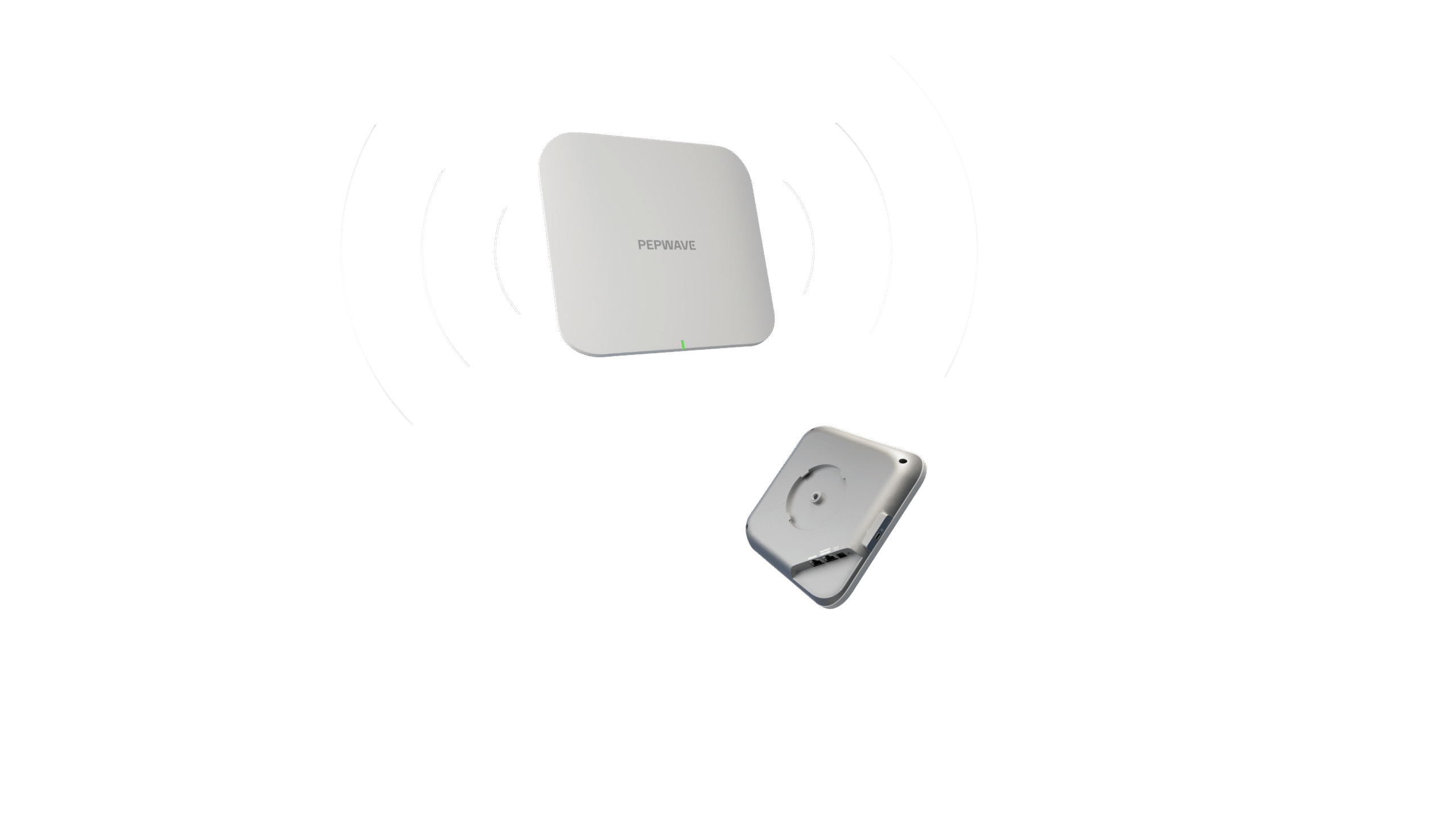

Ceiling Mountable 11AC AP
11ac Access Point
Upgrade your network to 11ac Wi-Fi. Our access points are compatible with the latest smartphones and tablets.
Product Brochure”KEY
Simultaneous Dual-Band
Reduce Wi-Fi congestion and interference. Simultaneous dual-band Wi-Fi on the AP One Enterprise gives you two independent networks that work together, so all of your devices can connect without clashing.

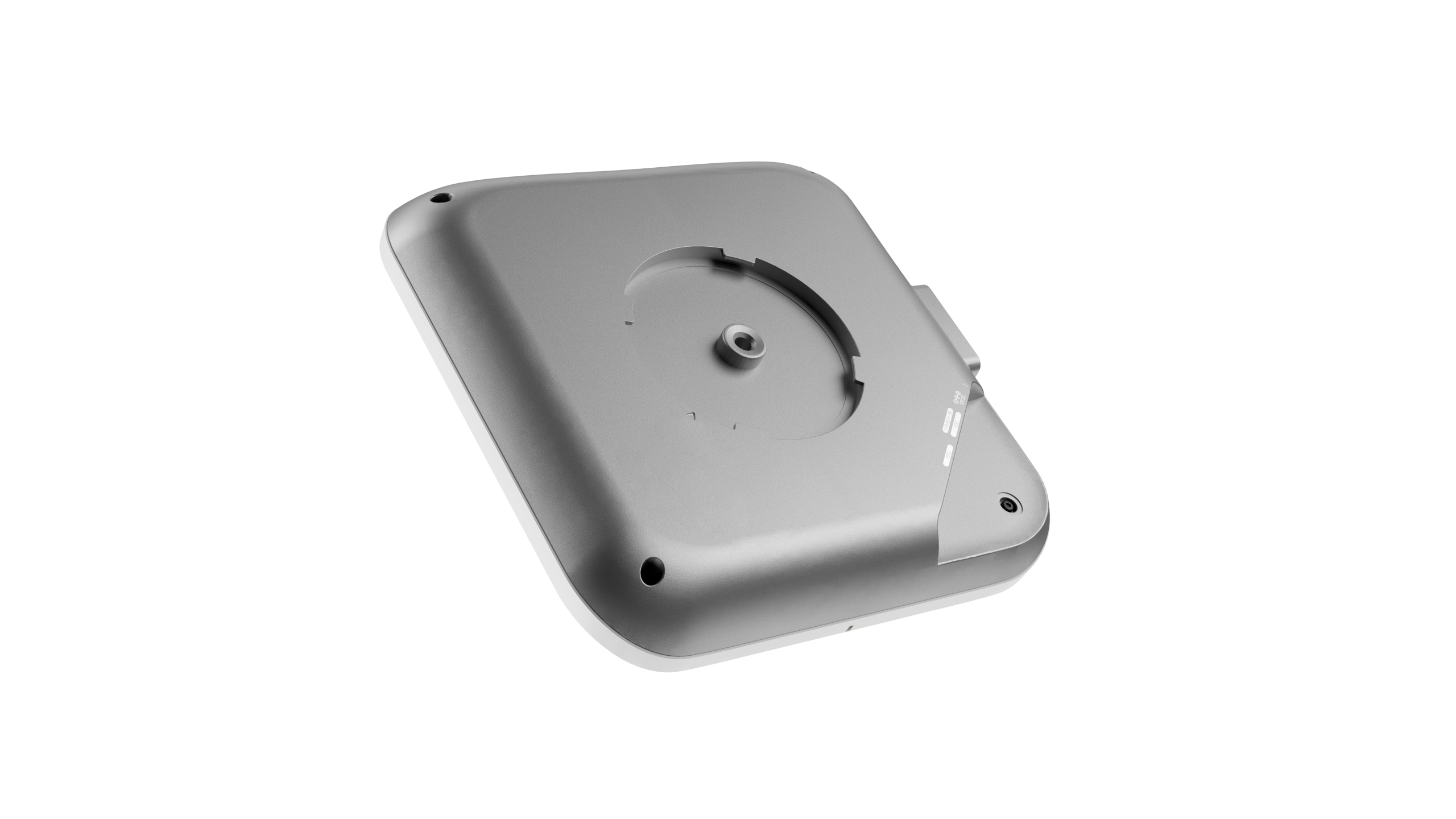

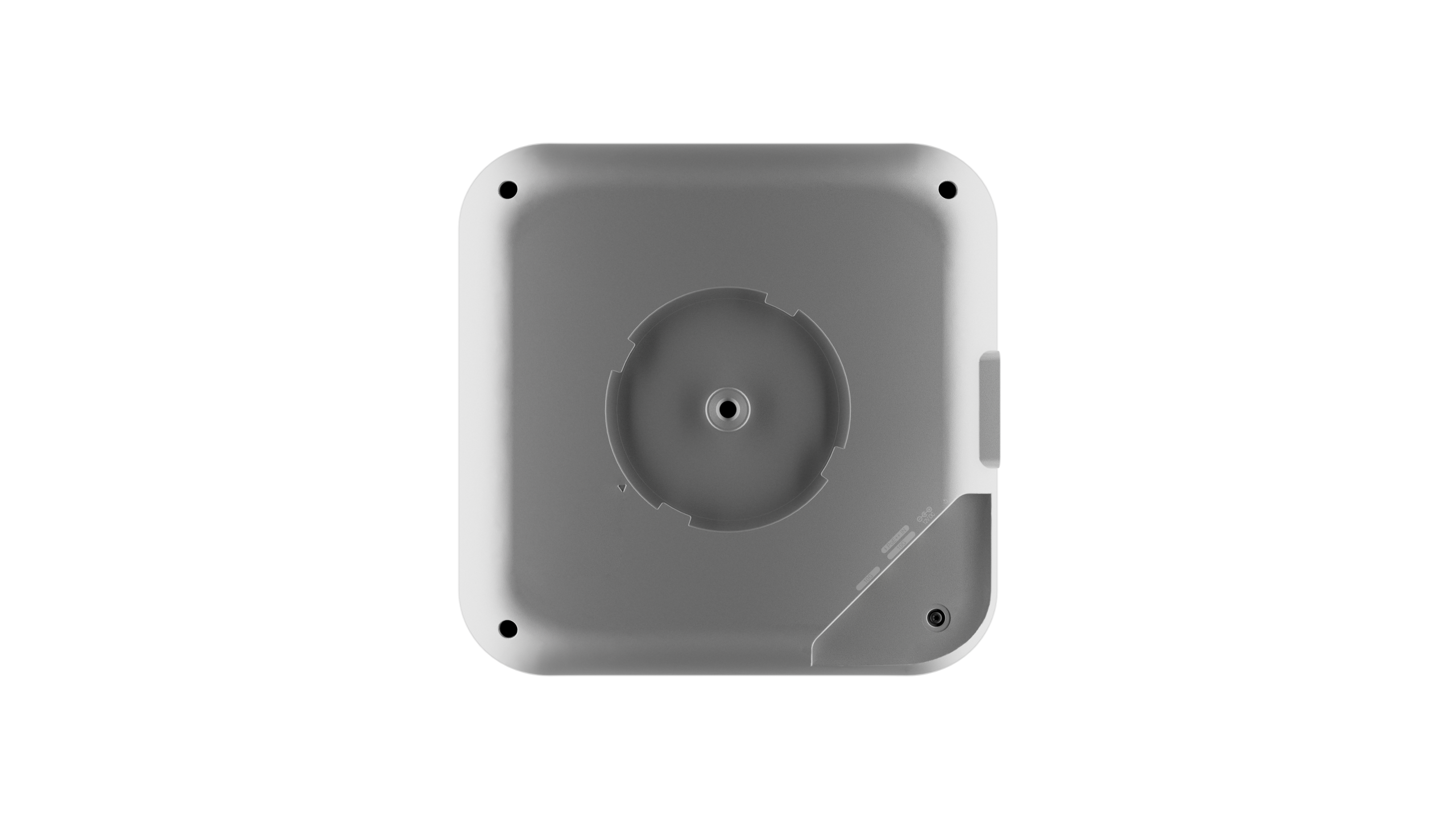

Plenum Rated Ceiling Mount Enclosure
The plenum-rated, flame-resistant AP One Enterprise is designed with ceiling mount, so it fits just about anywhere in your office.
Built-in PoE
Ease your mind with 802.3af PoE input – say farewell to power cables.
User Access Control
Control network access with separate logins for each user group. AP One access points support up to 16 SSIDs, each with independent bandwidth limits and web blocking.

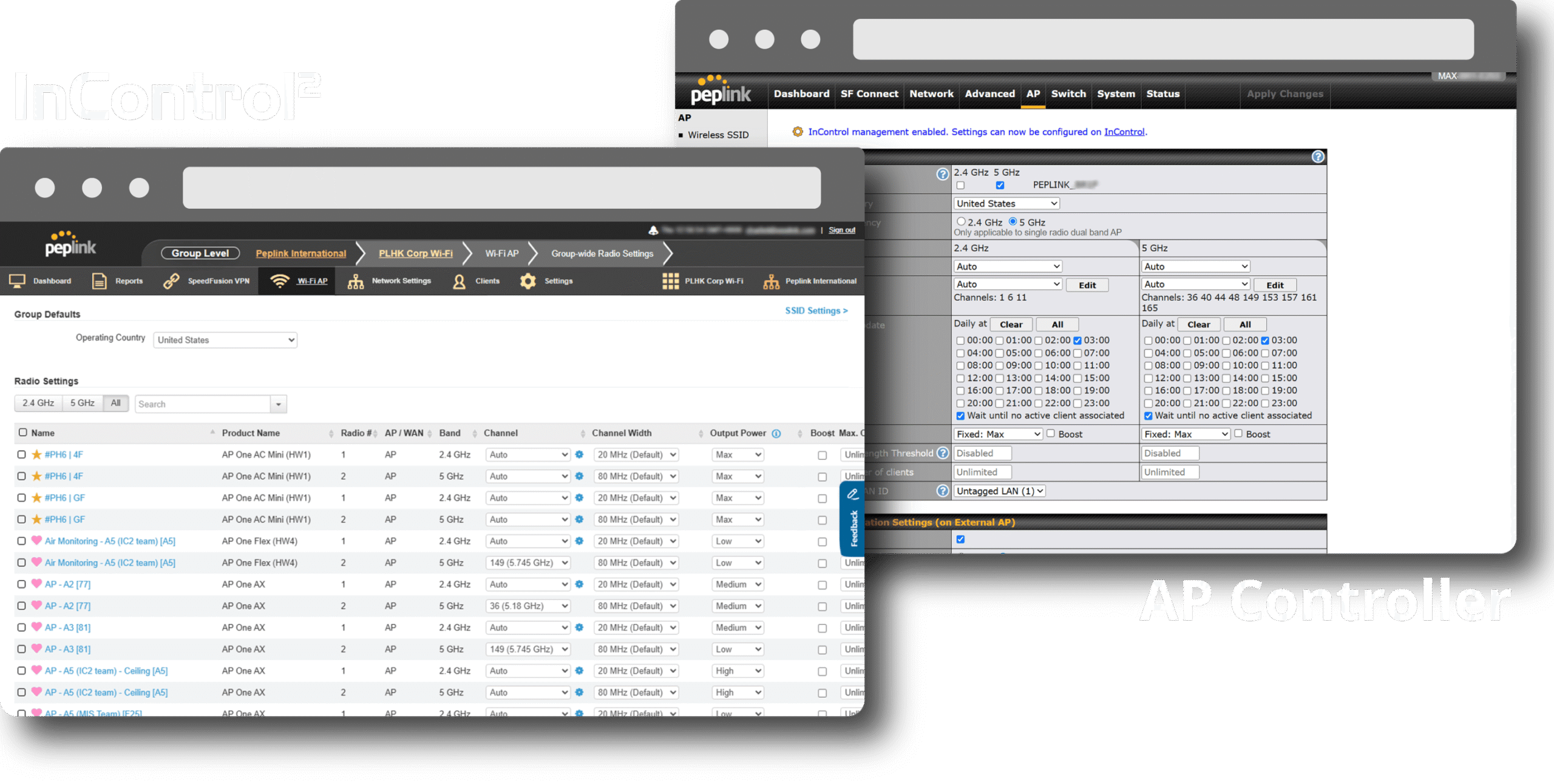

Centralised Management
Configure AP One access points onsite or from the cloud. Our AP Controller lets you locally manage access points from your Balance router, while InControl2 offers a complete cloud-based solution accessible from any web-browser.*
* Requires Peplink Balance / Pepwave MAX Firmware 6.1.3 for AP Controller support on AP One Enterprise
Complete Network Solution
Enjoy better network integration and performance. AP One access points are a perfect complement to Balance routers, together providing blazing speed and superior reliability across your entire network.

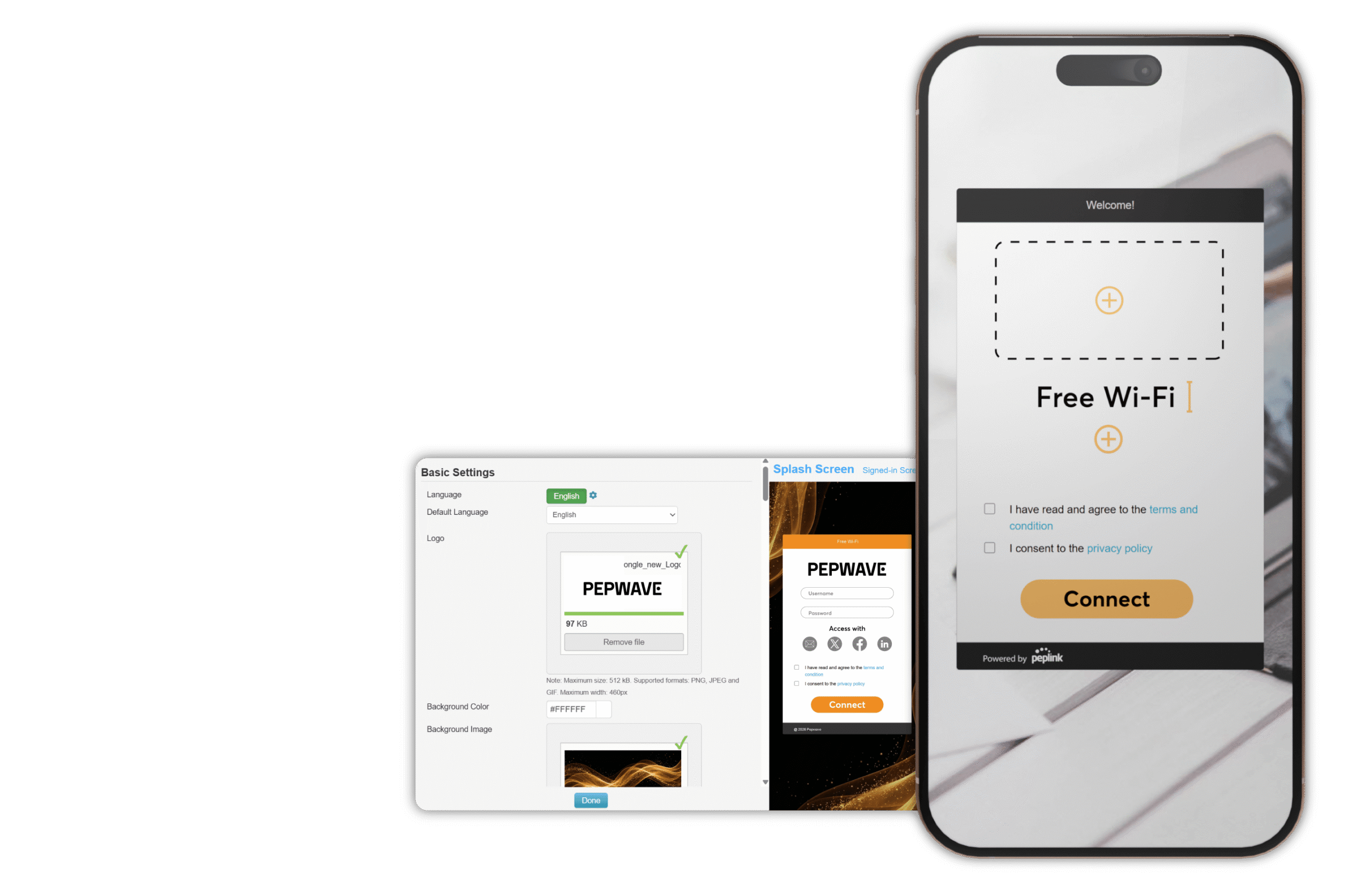

Social Wi-Fi Hotspot
Guests can now access your Wi-Fi hotspot with their Facebook login. In exchange, you can learn more about your customer base with insightful reports.
SPECIFICATIONS
• Product Code: APO-ENT

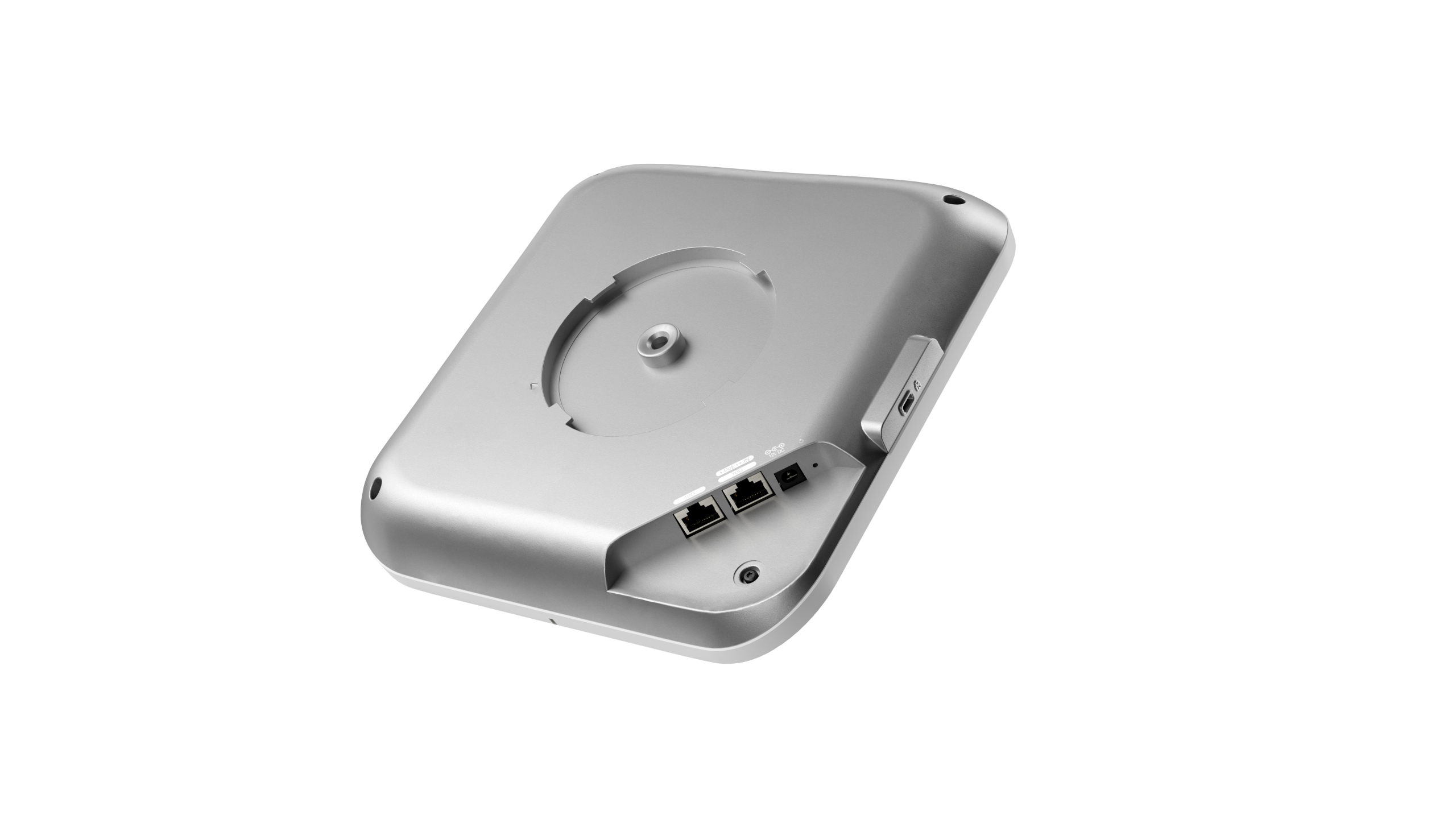

• Ethernet Port: 2x GE
• Wi-Fi Standard: Simultaneous 802.11ac/a/n and 802.11b/g/n
• Data Rates: 3×3 MIMO, 2.4 GHz: 450Mbps, 5GHz: 1300Mbps
• Recommended Concurrent Users Per Radio: 60
• SSID Per Radio: 16
• Transmit Power: 2412 – 2472 MHz: 24dBm, 5180 – 5825 MHz: 23dBm
• Included Antenna: Built-in Omni antenna, Antenna gain: 3dBi for 2.4GHz, 4dBi for 5GHz
• Antenna Connector: N/A
• Enclosure: Plenum-rated, Indoor Plastic
• Weight: 260 grams
• Power Input: 802.3af PoE (Injector Not Included)
• Power Consumption: 13W (max.)
• Operating Temperature: -5° – 45°C
• Humidity: 15% – 95% (non-condensing)
• Certifications: FCC, CE, RoHS
• Warranty: 1-Year Limited Warranty
• Package Content: AP One Enterprise, Mounting Bracket
• Ethernet Port: 2x GE
• Wi-Fi Standard: Simultaneous 802.11ac/a/n and 802.11b/g/n
• Data Rates: 3×3 MIMO, 2.4 GHz: 450Mbps, 5GHz: 1300Mbps
• Recommended Concurrent Users Per Radio: 60
• SSID Per Radio: 16
• Transmit Power: 2412 – 2472 MHz: 24dBm, 5180 – 5825 MHz: 23dBm
• Included Antenna: Built-in Omni antenna, Antenna gain: 3dBi for 2.4GHz, 4dBi for 5GHz
• Antenna Connector: N/A
• Enclosure: Plenum-rated, Indoor Plastic
• Weight: 260 grams
• Power Input: 802.3af PoE (Injector Not Included)
• Power Consumption: 13W (max.)
• Operating Temperature: -5° – 45°C
• Humidity: 15% – 95% (non-condensing)
• Certifications: FCC, CE, RoHS
• Warranty: 1-Year Limited Warranty
• Package Content: AP One Enterprise, Mounting Bracket
ORDERING INFORMATION
• Product Code: APO-ENT
• Product Name: AP One Enterprise
• Description: Simultaneous 802.11ac/a/n 1300Mbps and 802.11b/g/n 450Mbps. Built-in omni antenna included.
• Product Name: AP One Enterprise
• Description: Simultaneous 802.11ac/a/n 1300Mbps and 802.11b/g/n 450Mbps. Built-in omni antenna included.
FEATURE ADD-ON
• Product Code: ACW-510
• Feature Pack: Ball Joint Mount for IP55 Outdoor Products
• Description: Wall/pole mount with flexible ball-joint for high-precision installation.
• Feature Pack: Ball Joint Mount for IP55 Outdoor Products
• Description: Wall/pole mount with flexible ball-joint for high-precision installation.
PoE INJECTOR
• Product Code: ACW-107
• Description: 802.3af/at PoE Injector
• Description: 802.3af/at PoE Injector
• Product Code: ACW-109
• Description: PoE Kit for IP55 Outdoor Products
• Product Code: ACW-622
• Description: Includes 1x 56V Power Supply Enables 802.3at/af PoE Output Ports (PoE License automatically applied after kit purchase)
• Product Code: SIM-BK8-4E-56V
• Description: SIM Injector, 8x SIM cards capacity, 4x 10/100/1000 LAN ports, 56V DC (compatible with HW revision 4 or above)
FEATURES
Network
Bridge Mode
Router (NAT) Mode
Wireless Distribution System
(WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN
Spanning Tree Protocol
Bridge Mode
Router (NAT) Mode
Wireless Distribution System
(WDS)
Support for PPPoE, Static IP, DHCP
Management VLAN
Spanning Tree Protocol
Radio
Multiple SSID
Auto Channel Selection
Transmit Power Adjustment
Neighbour AP Detection
Client Management
Per SSID
VLAN with QoS
(802.1p/802.1Q)
Bandwidth Control
MAC Address Filtering
Layer 2 Client Isolation
Limit on Max. Number of Client
Per Client
VLAN with RADIUS
VLAN with VLAN Pool
Bandwidth Control
Multicast Filter
IGMP Snooping/Multicast
Enhancement
AP Security
Open, WEP
802.1X with Dynamic WEP
WPA2-Personal
WPA2-Enterprise
WPA/WPA2-Personal
WPA/WPA2-Enterprise
Complete VPN Solution
PepVPN
Site-to-Site VPN
256-bit AES Encryption
Pre-shared Key Authentication
Captive Portal
By InControl
By Peplink AP Controller
Device Management
Web Administrative Interface
InControl Cloud Management
Peplink AP Controller
SNMP v1, v2c and v3
Certification
FCC, CE, RoHS
WHY PEPLINK?
• Industry leader in both ISP & Data Bonding across multiple technology platforms
• Reliable hardware from entry level professional equipment through to advanced Enterprises solutions
• Worldwide supported and local support here in Australia by fully trained technicians
• Reliable and secure redundancy paths for mission critical sites
• Designed for maximum possible business uptime
• Reliable hardware from entry level professional equipment through to advanced Enterprises solutions
• Worldwide supported and local support here in Australia by fully trained technicians
• Reliable and secure redundancy paths for mission critical sites
• Designed for maximum possible business uptime
This demonstrates to Rising Connection that you will have the Quality, Reliability and Product Support.
