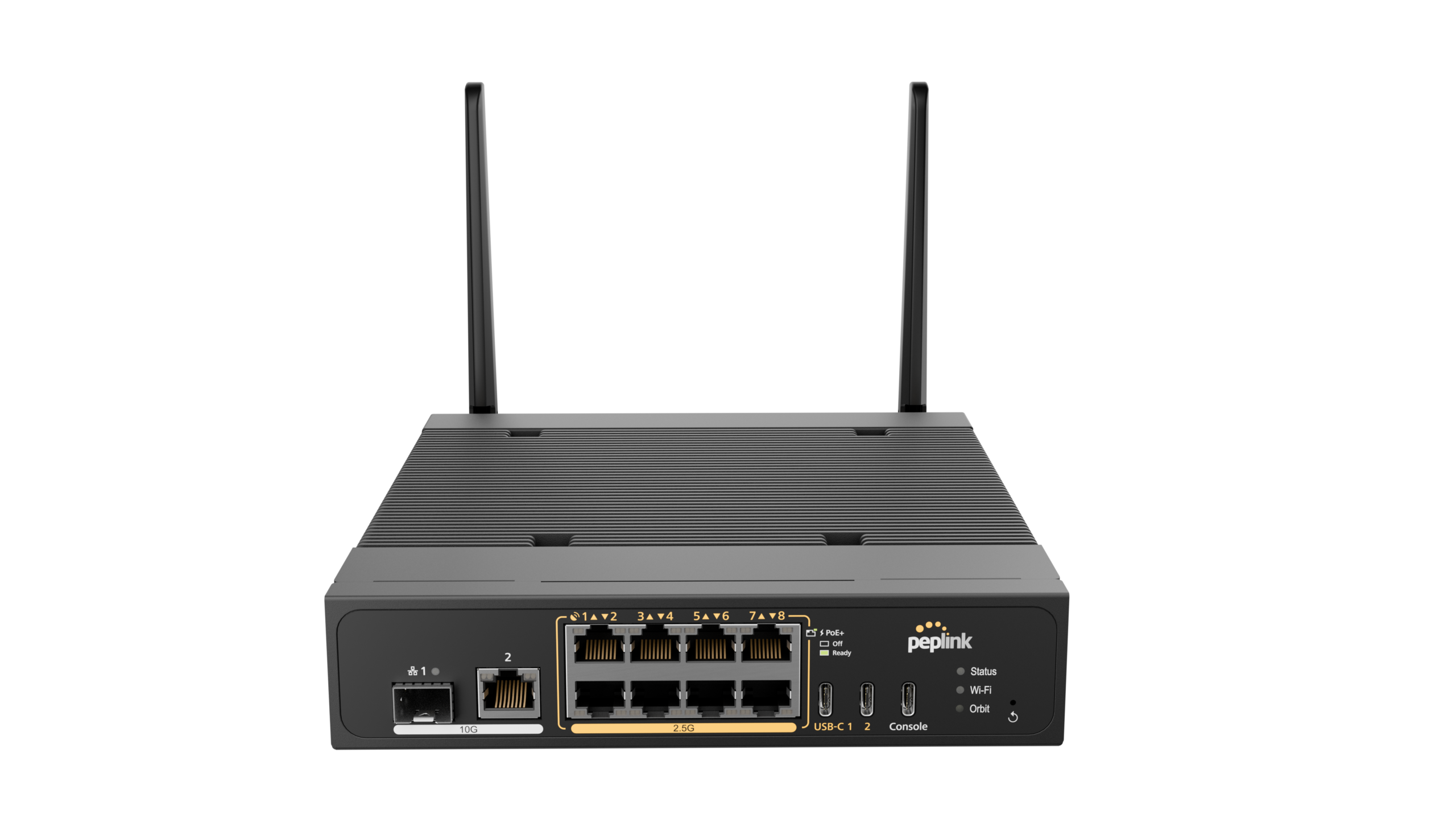

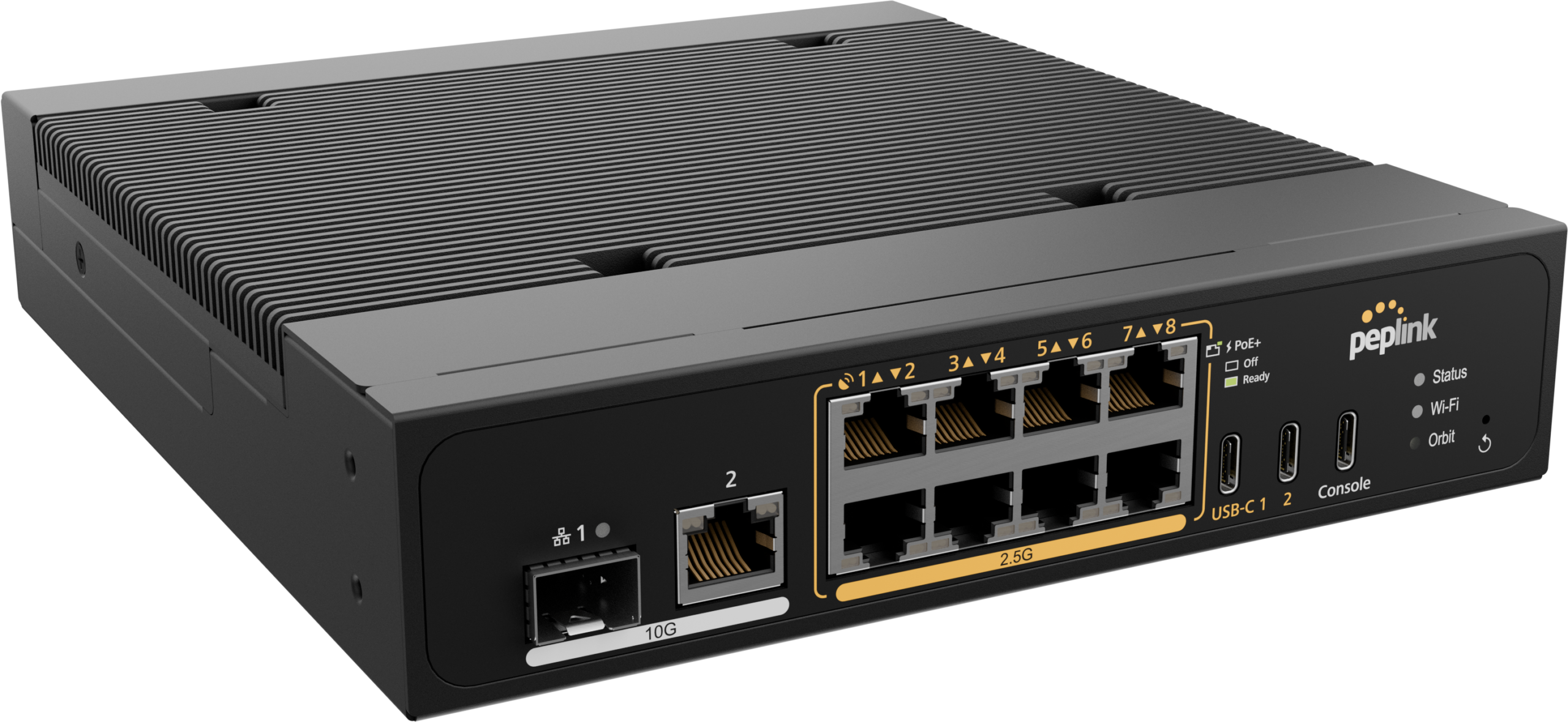

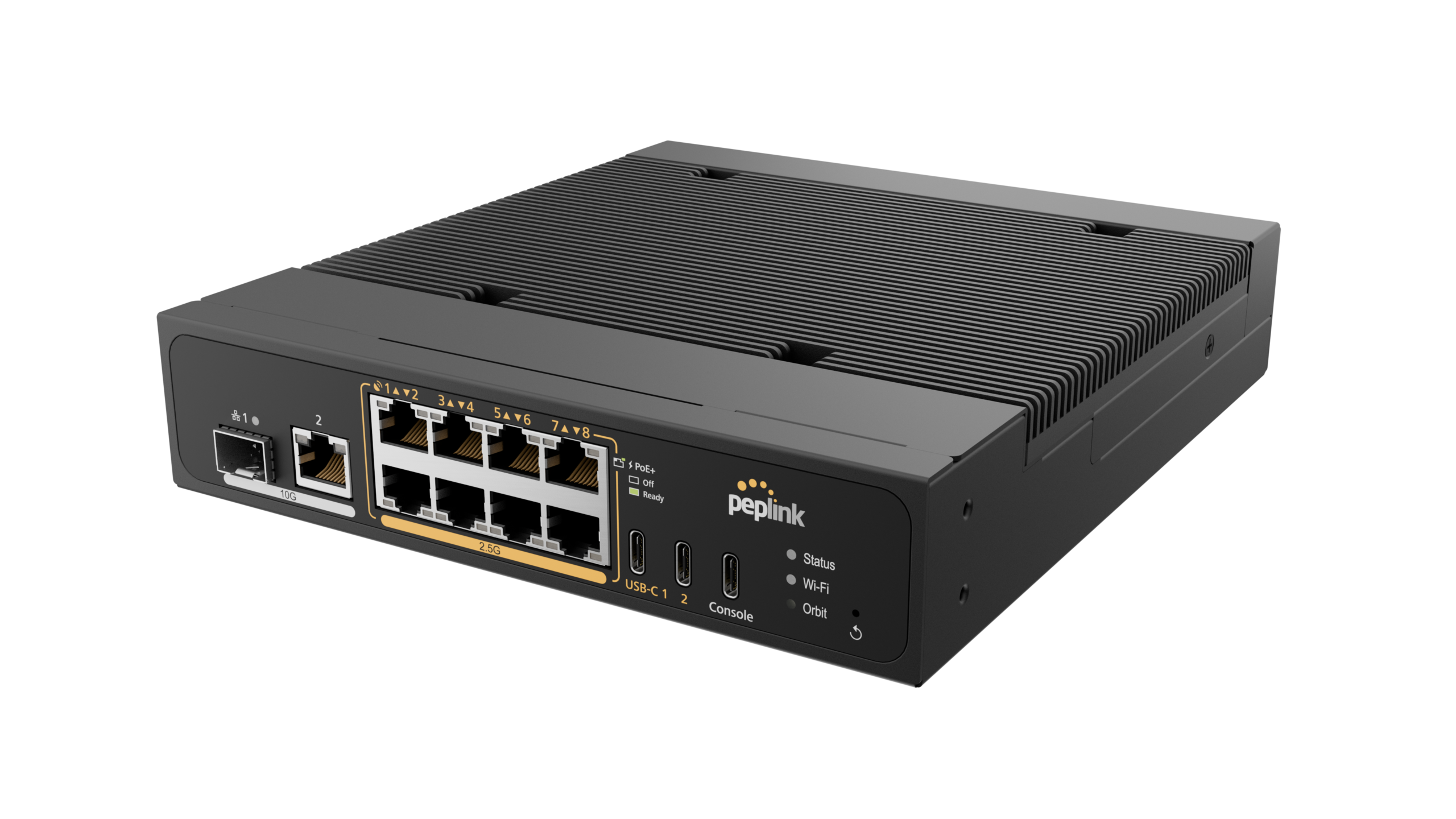

MAX Orbit 8
RCM Approval Pending
Purpose-Built for Robust Multi-Orbit Connectivity
Multi-Terminal Bonding Scales Bandwidth and Reliability
A single satellite terminal can’t always deliver the bandwidth or reliability that serious operations demand. MAX Orbit lets you combine multiple Starlink, OneWeb, or other connections for greater speed and reliability.
Product BrochureKEY FEATURES
Multi-Terminal Bonding Scales Bandwidth and ReliabilityA single satellite terminal can’t always deliver the bandwidth or reliability that serious operations demand. MAX Orbit lets you combine multiple Starlink, OneWeb, or other connections for greater speed and reliability.
Every Satellite Network Managed from One PlaceNo need to hop portals. Peplink can manage Starlink, OneWeb, and Iridium, via InControl for unified cloud-based management.
Keep Multi-Orbit Networks Running at Full SpeedDon’t let satellite handovers, obstructions, or bad weather slow you down. SpeedFusion Boost prevents unstable satellite links from dragging down overall throughput, keeping your bonded multi-orbit networks fast, smooth, and efficient.
SpeedFusion Score – Optimise Your Multi-Orbit DeploymentAvailable in InControl, SpeedFusion Score continuously evaluates the health, resilience, and performance of your bonded networks. Use these insights to instantly identify performance gaps and uncover opportunities for improvement. By adding more WAN connections and enabling additional SpeedFusion features, you can improve overall network performance and achieve a higher score.
5G + Satellite for Expanded CapabilitiesExpand uptime and performance while balancing cost by combining 5G and satellite bandwidth. Avoid overages and use each connection most efficiently.
Back Anything Up, AnywhereBack up critical fibre-optic links for cellular towers, ISPs, warehouses, data centres, energy & mining and any location that needs high reliability backup connectivity by bonding multiple satellite terminals and multiple networks.
Built to Go PlacesWhether it’s a mobile command unit, shipping vessel or a field deployment that relocates every week, MAX Orbit is engineered for life outside the server room. Integrated GPS, rugged hardware, and vibration-tolerant design mean you can have reliable multi-orbit connectivity anywhere you go.
SPECIFICATIONS

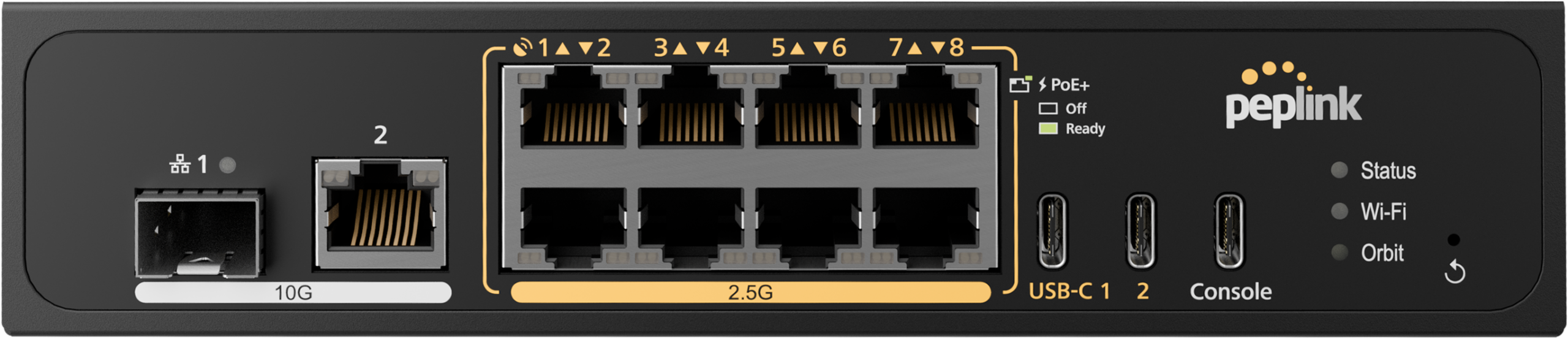

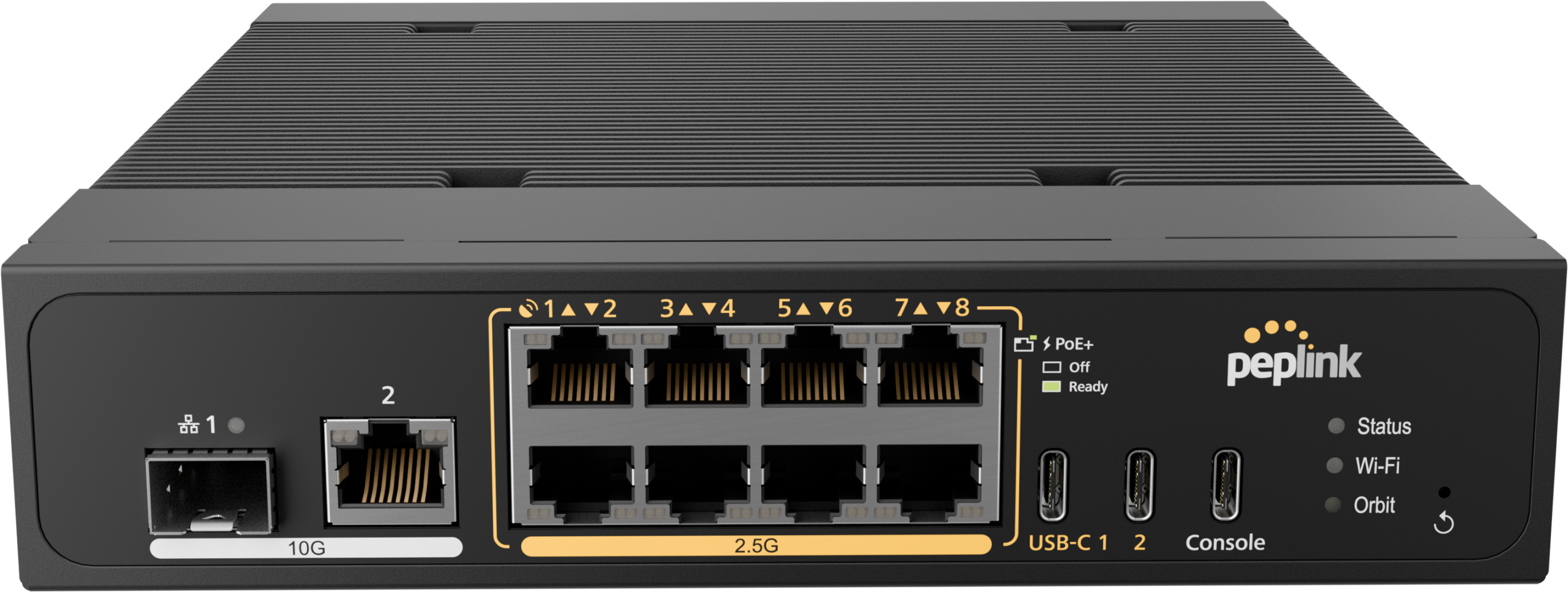

– WAN Interface: 8x 2.5G Multi-Gig Ethernet 1, 2x USB-C Interface
– LAN Interface: 1x 10G Multi-Gig Ethernet 1 2, 1x 10G SFP+ 2
– Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 7 2×2 MIMO, Wi-Fi WAN and/or AP

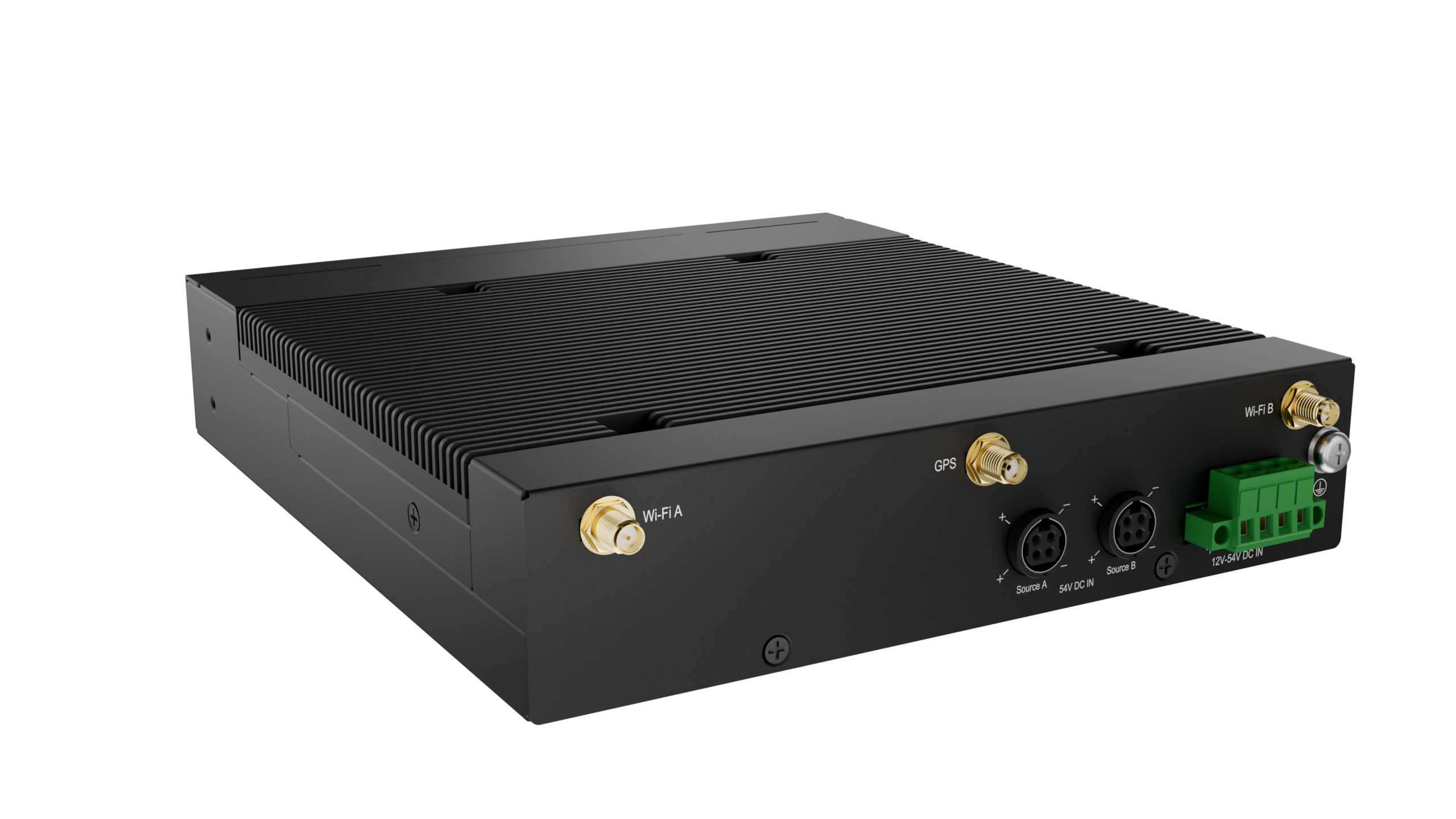

– Antenna Connectors: 2x RP-SMA Wi-Fi Antenna Connectors, 1x SMA GPS Antenna Connector
– Router Throughput: 4 Gbps
– Recommended Users: 50 – 500
– AP & Switch Controller: Standard (max. 30 / 50 4)
– Edge Computing: Docker (8GB Internal Storage / External Storage via USB Port)
– SpeedFusion VPN Throughput: No Encryption: 1 Gbps, 256-bit AES: 1 Gbps
– SpeedFusion Technologies: Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Boost
– Number of SpeedFusion VPN Peers: 2 / 30 3

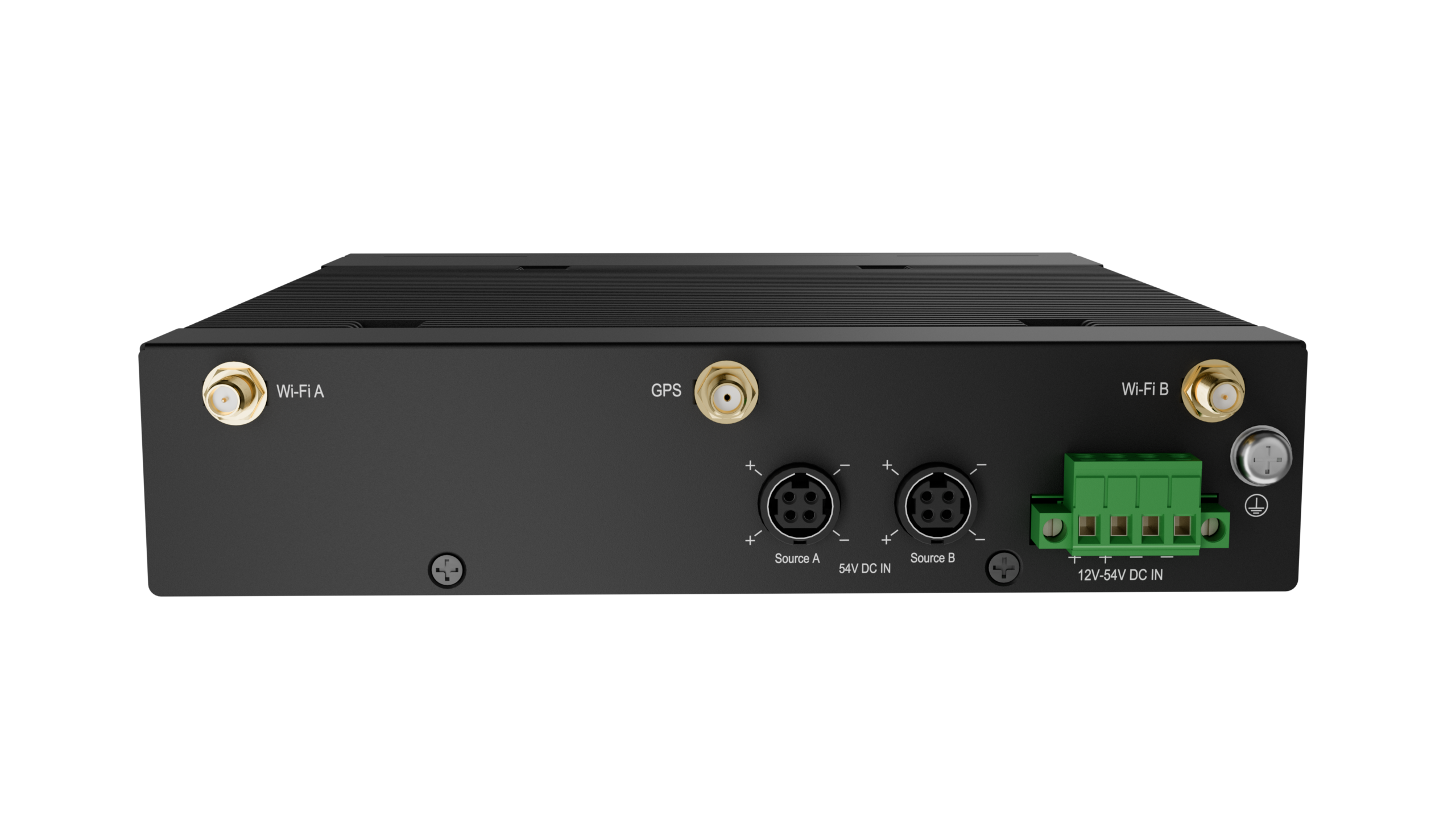

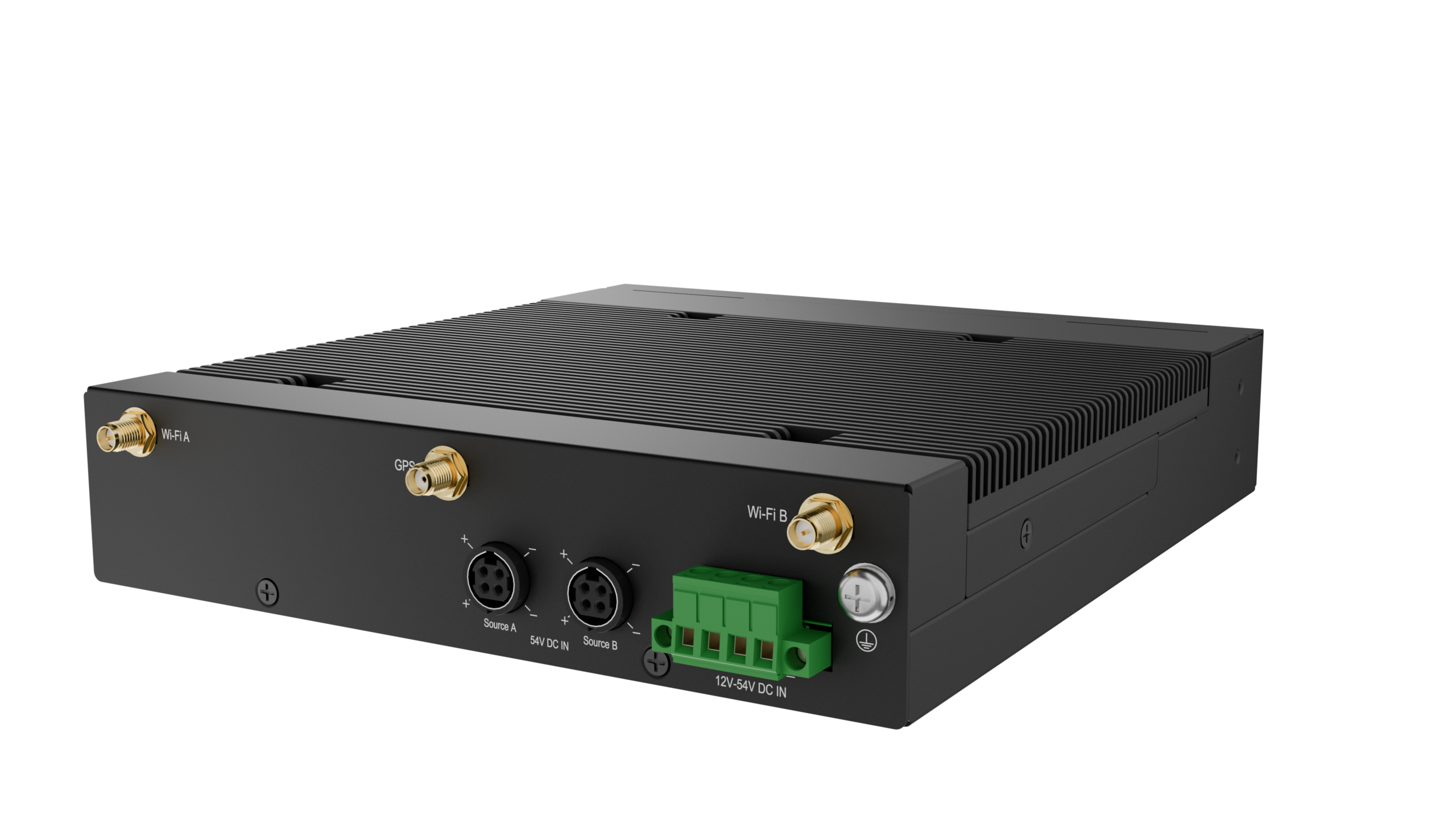

– Power Input: 2x Power DIN: 54V DC; AC Adapter: AC Input 100V – 240V / DC Output 54V; Terminal Block: 12V – 54V DC
– Power Output: Up to 8x 802.3at PoE+ 5
– Power Consumption: 25W (nominal) / 50W (max. without PoE and USB-C Output)
– Total PoE Power Budget: 240W
– Dimensions: 7.3 x 8 x 1.61 inches / 186 x 204.5 x 41 mm
– Weight: 7.58 pounds / 3.44 kg
– Operating Temperature: -40°– 149°F / -40°– 65°C
– Humidity: 15% – 95% (non-condensing)
– Certifications: FCC, CE, RoHS, REACH
– Warranty: 1-Year Limited Warranty
– Package Content:
1x MAX Orbit 8,
1x 54V DC, 5.19A Power Supply,
2x Dual Band Wi-Fi Antennas,
1x GPS Active Antenna,
1x Ear Rack Mount Kit with screws,
1x Rubber Foot Pad Set
– LAN Interface: 1x 10G Multi-Gig Ethernet 1 2, 1x 10G SFP+ 2
– Wi-Fi Interface: Simultaneous Dual-Band (2.4GHz / 5GHz), Wi-Fi 7 2×2 MIMO, Wi-Fi WAN and/or AP
– Antenna Connectors: 2x RP-SMA Wi-Fi Antenna Connectors, 1x SMA GPS Antenna Connector
– Router Throughput: 4 Gbps
– Recommended Users: 50 – 500
– AP & Switch Controller: Standard (max. 30 / 50 4)
– Edge Computing: Docker (8GB Internal Storage / External Storage via USB Port)
– SpeedFusion VPN Throughput: No Encryption: 1 Gbps, 256-bit AES: 1 Gbps
– SpeedFusion Technologies: Hot Failover, Smoothing, Bandwidth Bonding, SpeedFusion Boost
– Number of SpeedFusion VPN Peers: 2 / 30 3
– Power Input: 2x Power DIN: 54V DC; AC Adapter: AC Input 100V – 240V / DC Output 54V; Terminal Block: 12V – 54V DC
– Power Output: Up to 8x 802.3at PoE+ 5
– Power Consumption: 25W (nominal) / 50W (max. without PoE and USB-C Output)
– Total PoE Power Budget: 240W
– Dimensions: 7.3 x 8 x 1.61 inches / 186 x 204.5 x 41 mm
– Weight: 7.58 pounds / 3.44 kg
– Operating Temperature: -40°– 149°F / -40°– 65°C
– Humidity: 15% – 95% (non-condensing)
– Certifications: FCC, CE, RoHS, REACH
– Warranty: 1-Year Limited Warranty
– Package Content:
1x MAX Orbit 8,
1x 54V DC, 5.19A Power Supply,
2x Dual Band Wi-Fi Antennas,
1x GPS Active Antenna,
1x Ear Rack Mount Kit with screws,
1x Rubber Foot Pad Set
1. 10G ports are backward compatible with 5G, 2.5G, GE, and FE; 2.5G ports are backward compatible with GE and FE.
2. LAN ports can be configured for WAN or LAN via the Web Admin.
3. Requires a PrimeCare subscription, complimentary for the first year.
4. Available as a licence add-on (AP-LC-50).
5. A DC input voltage of 50V – 54V is required to enable PoE output.
ORDERING INFORMATION
Product Code: MAX-ORB-8-T-PRM
Description: MAX Orbit 8
FEATURE ADD-ON
Product Code: PRM-E-1Y / PCP-E-1Y
Description: PrimeCare E / PrimeCare+ E (1-Year)
Product Code: PRM-E-2Y / PCP-E-2Y
Description: PrimeCare E / PrimeCare+ E (2-Year)
Product Code: PRM-E-4Y / PCP-E-4Y
Description: PrimeCare E / PrimeCare+ E (4-Year)
