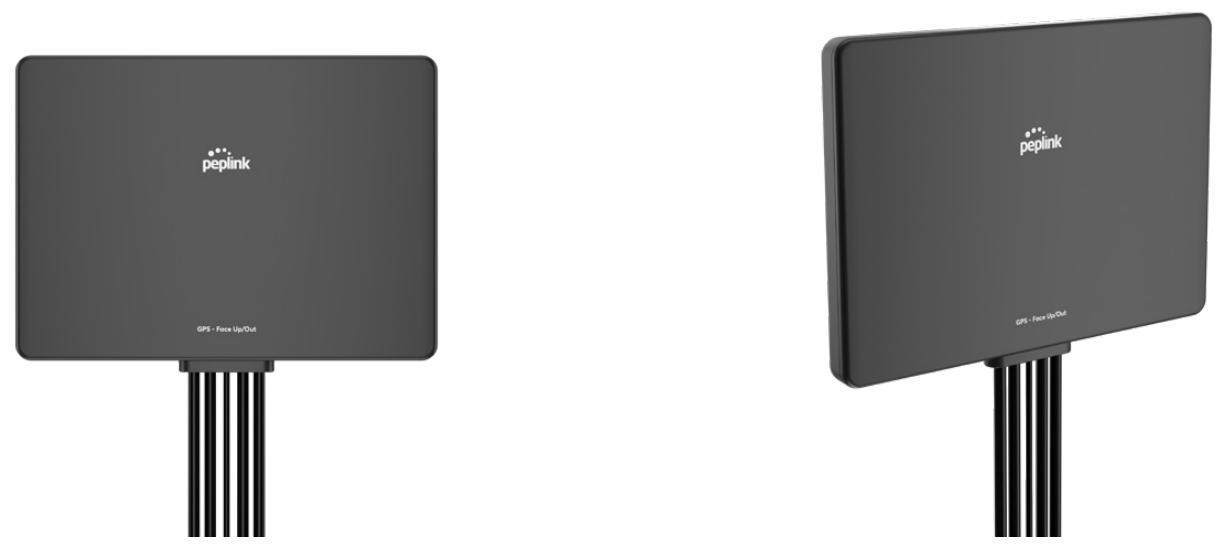

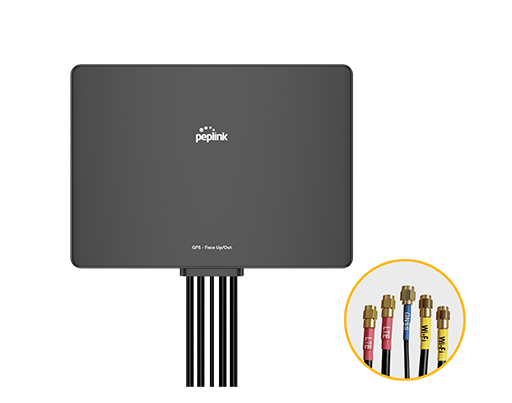

Slim 22G
Ultra Wide Bandwidth
Wide frequency range (600-6000MHz)
supporting LTE and 5G connectivity.
Product BrochureFEATURES
Applications
• Recreational Vehicles
• Transportation Connectivity
• Home / Office
Ultra Wide Bandwidth
Wide frequency range (600-6000MHz) supporting LTE and 5G connectivity.
Built for 5G
Omni-directional 2×2 MIMO mobile antenna for the best performance.
Wi-Fi
2×2 MIMO dual band (2.4GHz & 5GHz) high gain omnidirectional antennas for local coverage.
Low Profile Design
High performance in a small, durable housing
Easy Installation
Can be mounted on a window or wall or hidden under a vehicle dashboard.
SPECIFICATIONS
Cellular
• Antenna elements: 2 elements
• Peak Gain & Frequencies:
4.1dBi: 617-960MHz
4.3dBi: 1710-2700MHz
6.0dBi: 3400-4200MHz
7.5dBi: 5000-6000MHz
• VSWR: < 2.5 over 90% of the band
• Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
GPS
• Frequency Range: 1561-1602 MHz
• Peak Gain:
0.5dBi@1575MHz
1.6dBi@1602MHz
• VSWR: < 2.0
• Output Return Loss: 10dB max
• Gain: LNA: 28 ±3dB
• Noise Figure: 1.5dB max at 3.3V
• Operating Voltage: 3.3V
• Power Consumption: 8.5 ±2.5mA at 3.3V
Wi-Fi
• Antenna Elements: 2 elements
• Peak Gain & Frequencies:
5.5dBi: 2400-2500MHz
5.7dBi: 5000-6000MHz
• VSWR: < 2.0
• Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear
Cable (Cellular / Wi-Fi)
• Type: CFD-200 (Cellular, Wi-Fi)
• Loss:
0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz
• Diameter: 0.2″ / 5.0mm
• Jacket: Half matt PVC, UV resistant
• Termination: SMA male and RP-SMA male
Cable (GPS)
• Type: RG-174 (GPS)
• Loss:
3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz
• Diameter: 0.1″ / 2.7mm
• Jacket: Half matt PVC, UV resistant
• Termination: SMA male
Mounting
Supported Types: Window, wall
Mechanical
• Product Dimensions:
7.09″ x 5.12″ x 0.59″ /
180 x 130 x 15mm
• Packaged Dimensions:
9.61″ x 3.15″ x 9.84″ /
244 x 80 x 250mm
• Enclosure Material: UV stable PC
• Color: Black
Environmental, Compliance
• IP Rating: IP55
• Operating Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Storage Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Compliance: ROHS, REACH, WEEE
• Enclosure Flammability: UL 94 HB
• Cable Flammability: UL 758 (VW-1)
• UV resistance: UL 746C (F1 long-term UV exposure)
Package Contents
• Package Contents:
Slim 22G
Velcro strip (hook and loop fastener)
(4pcs, length 4.7″ / 120mm)

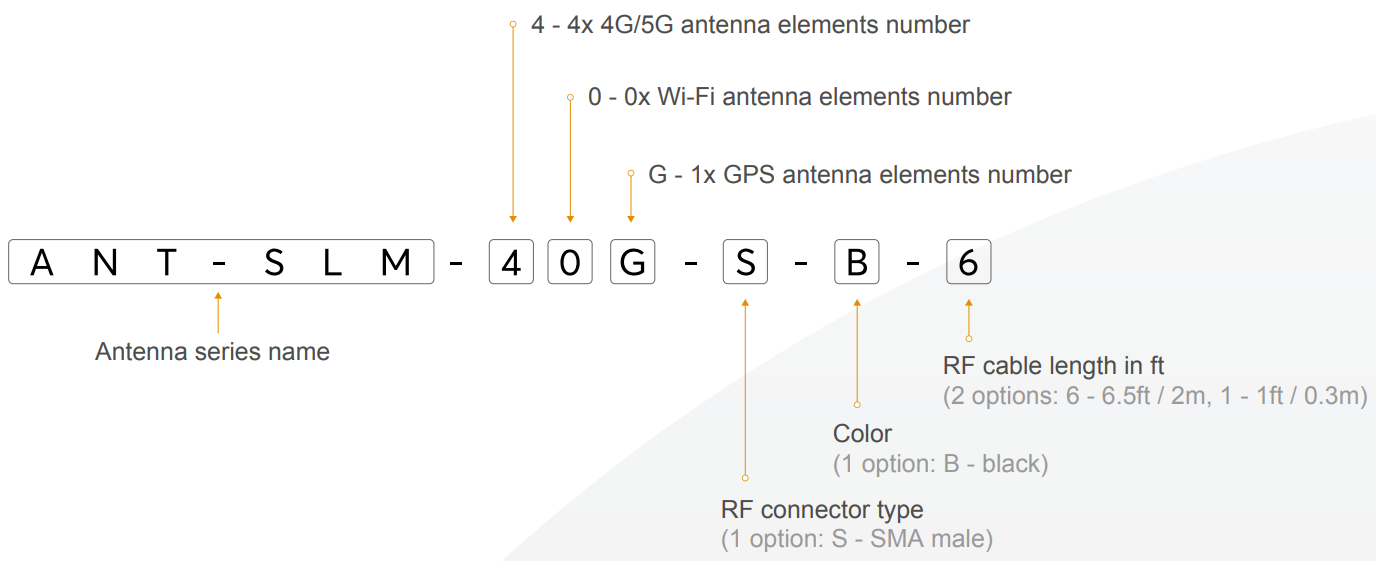

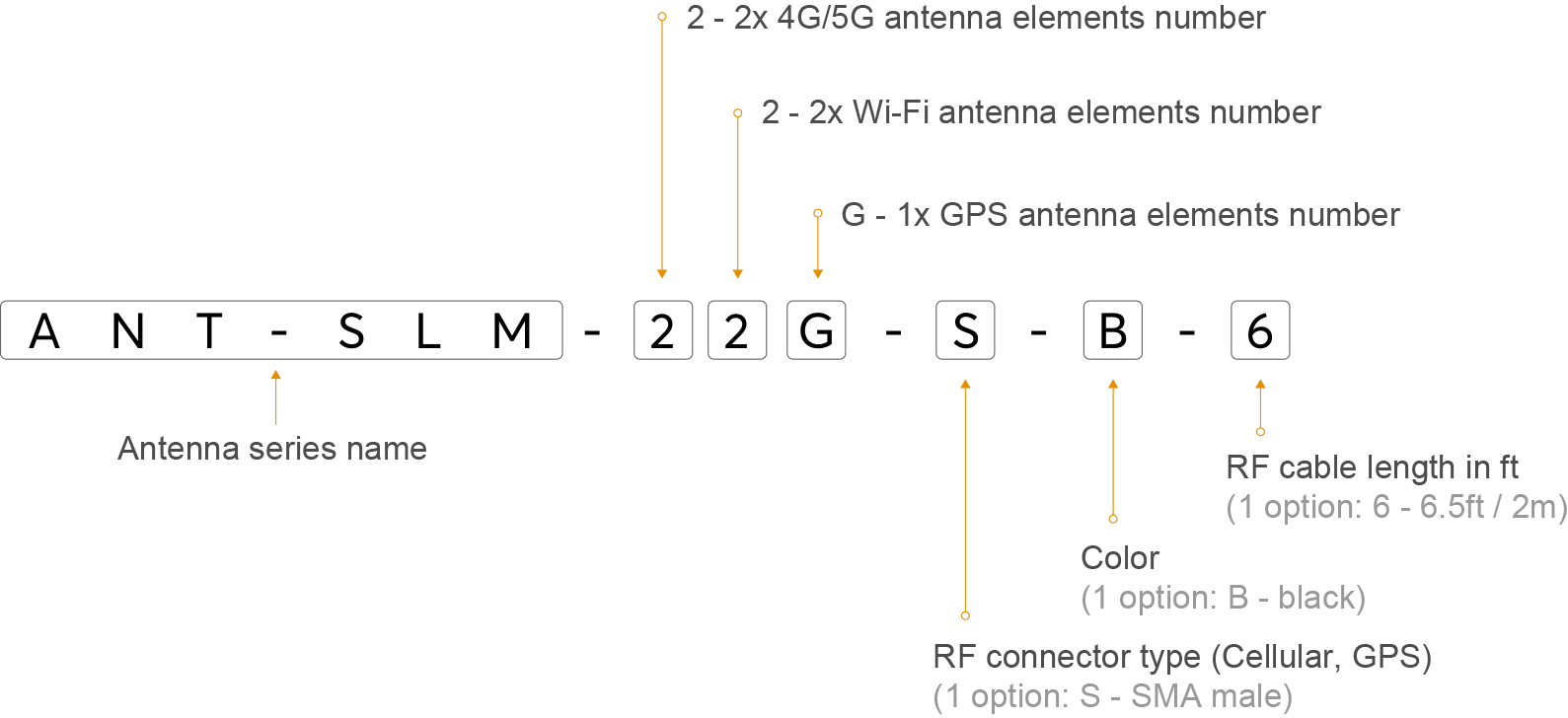

ORDERING INFORMATION
| Product Code | Description |
| ANT-SLM-22G-S-B-6 | 2x LTE/5G, 2x Wi-Fi, 1x GPS 600-6000MHz, SMA male (Cellular, GPS), RP-SMA male (Wi-Fi), Black, 6.5ft / 2m |

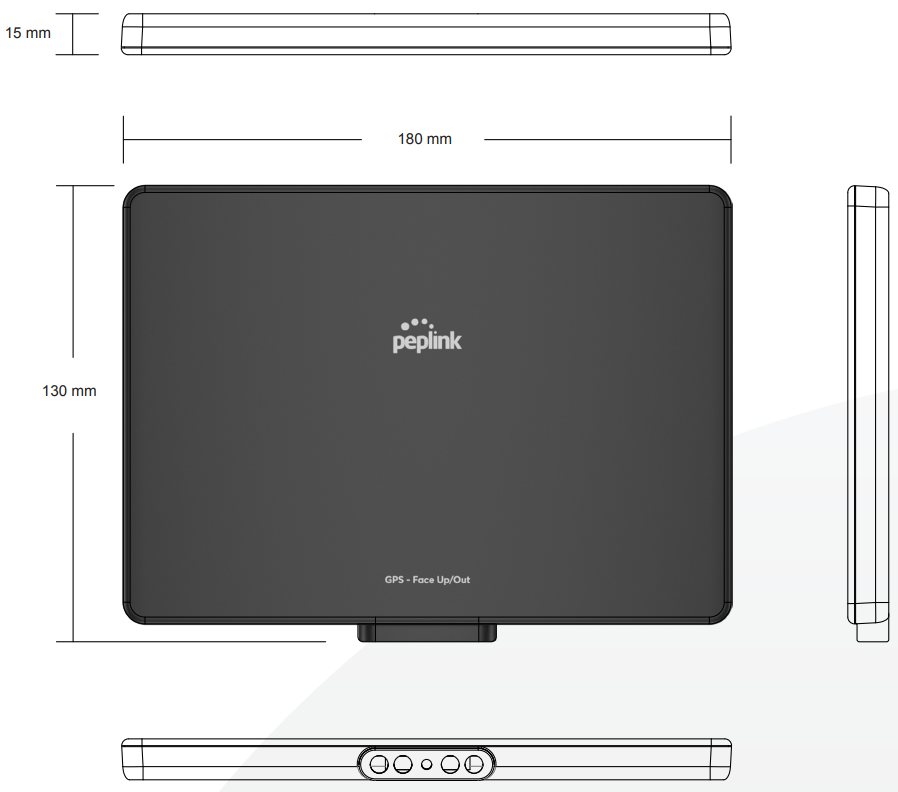

TECHNICAL DRAWING
CELLULAR ANTENNA PERFORMANCE

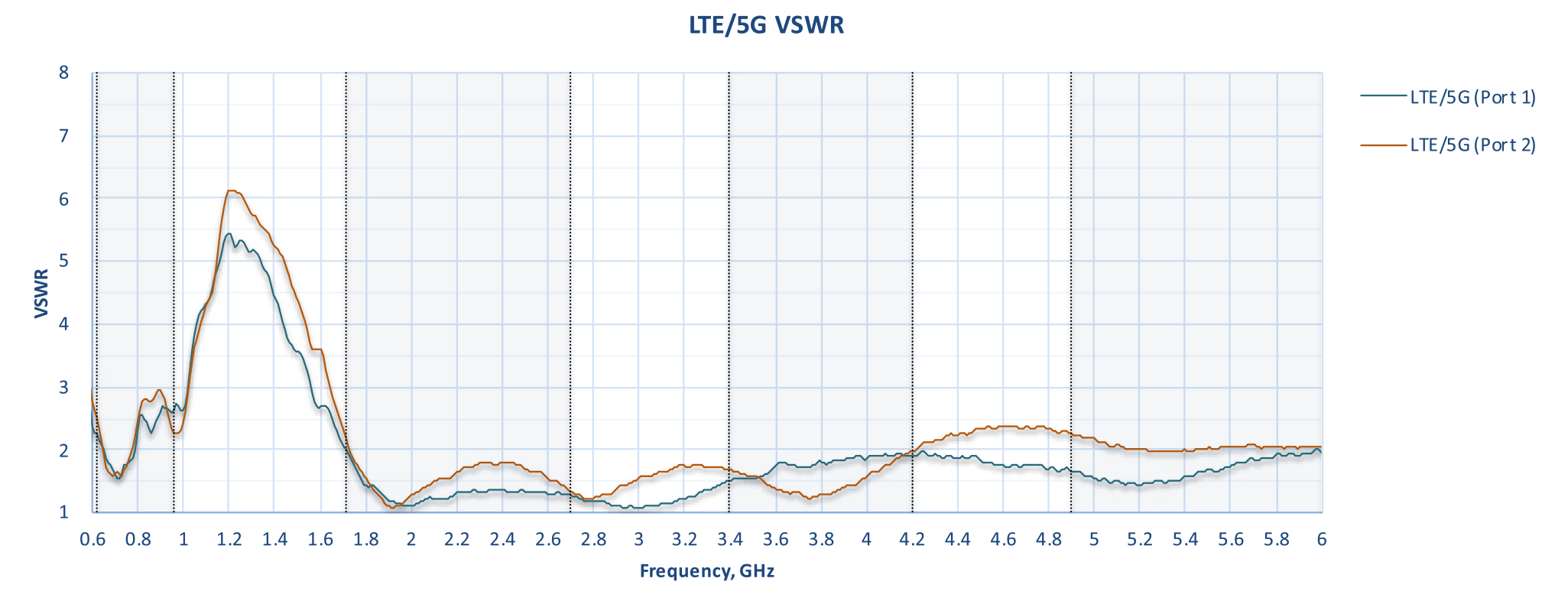

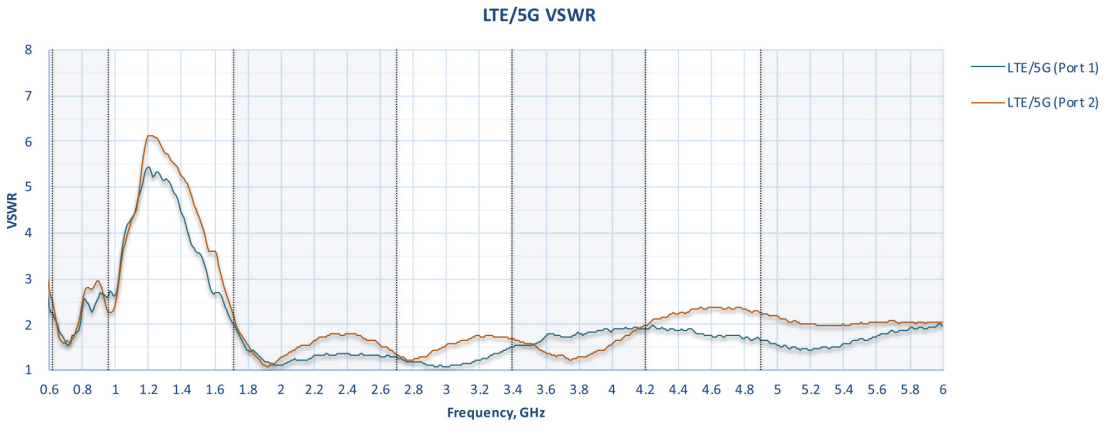

Cellular Antenna VSWR

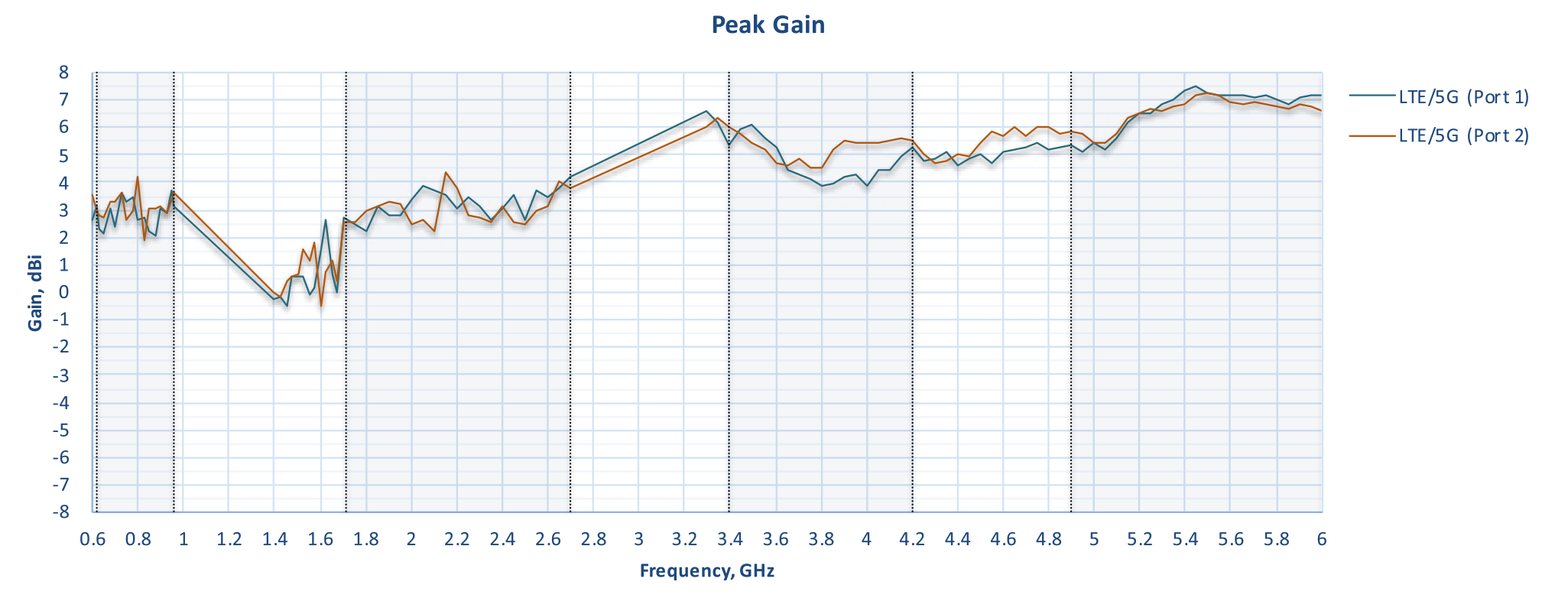

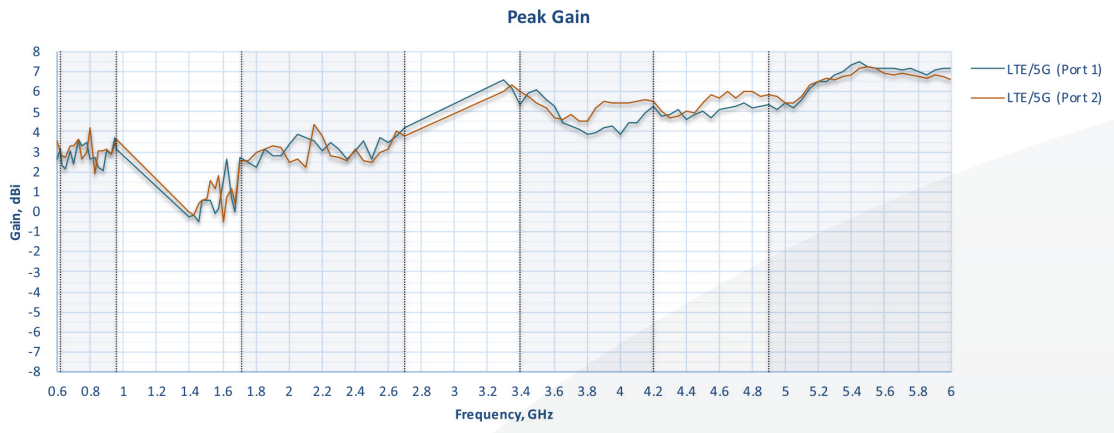

Cellular Antenna Gain

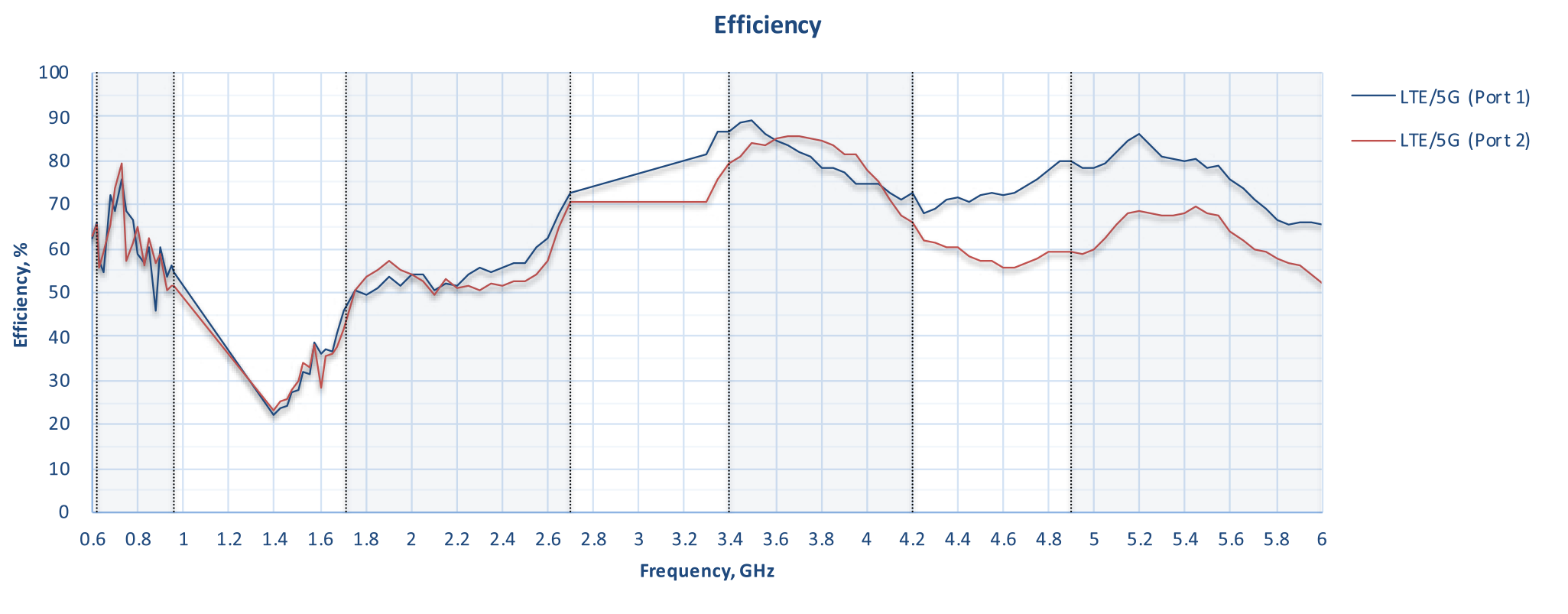

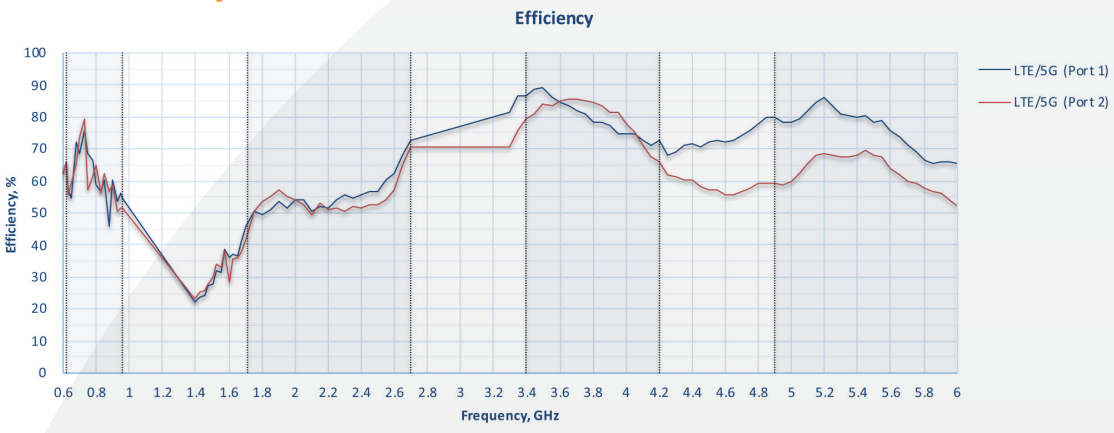

Cellular Antenna Efficiency
WI-FI ANTENNA PERFORMANCE

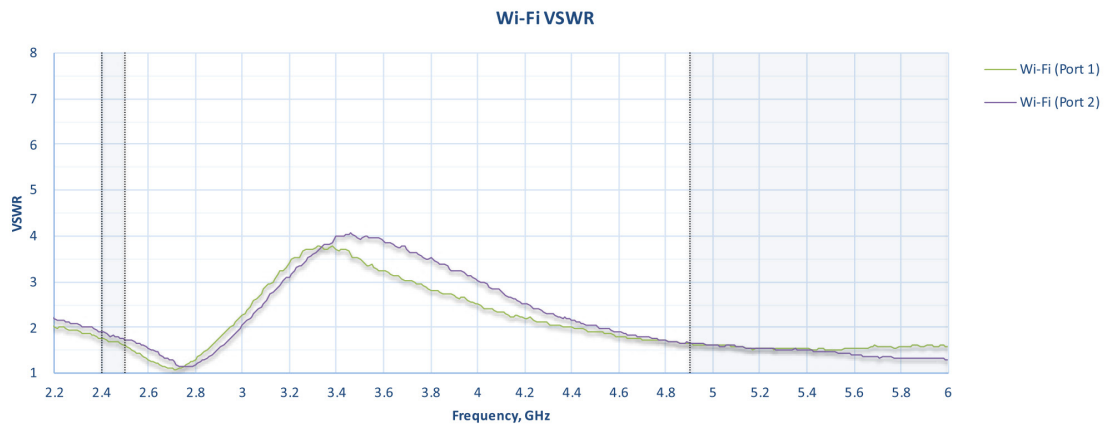

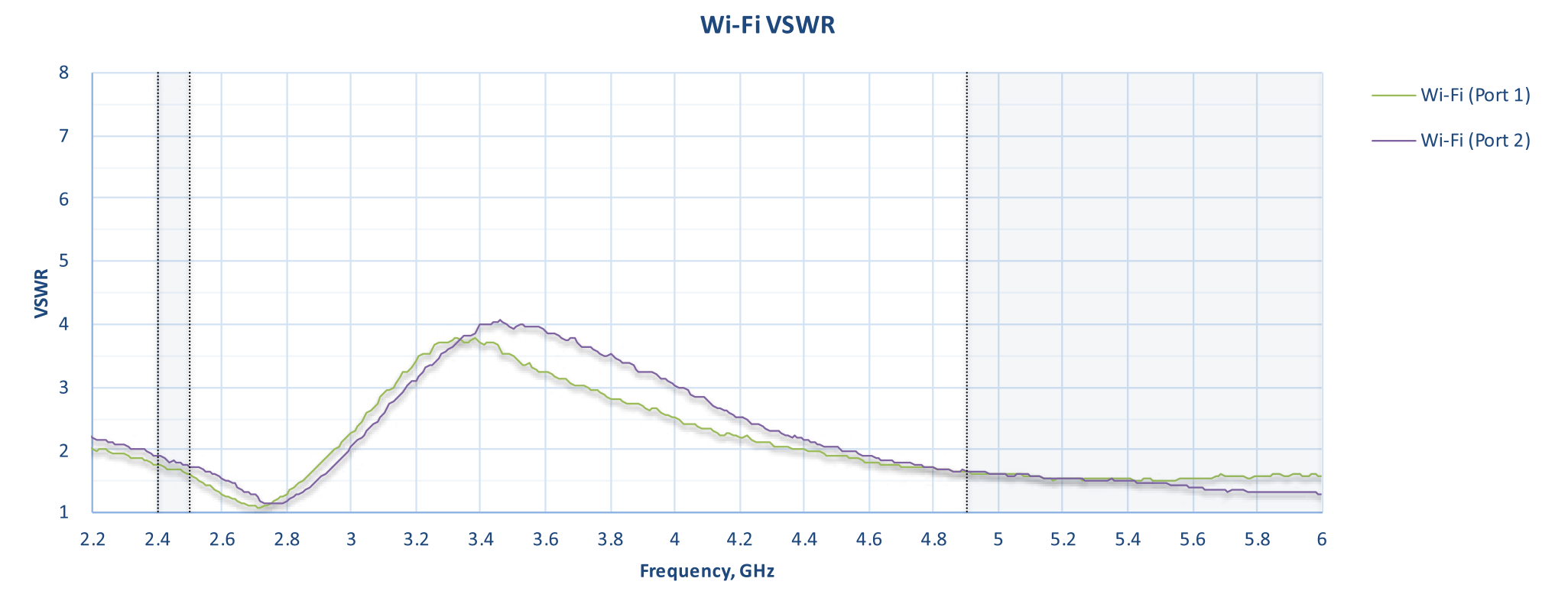

Wi-Fi Antenna VSWR

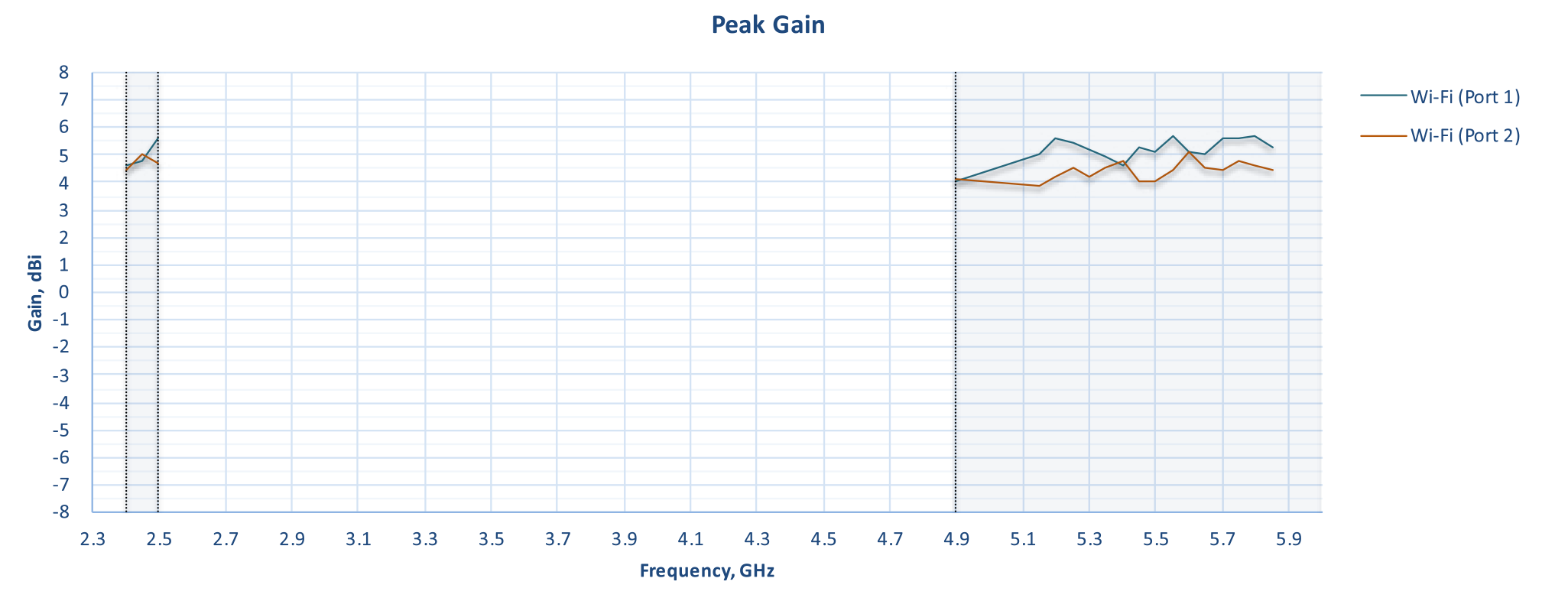

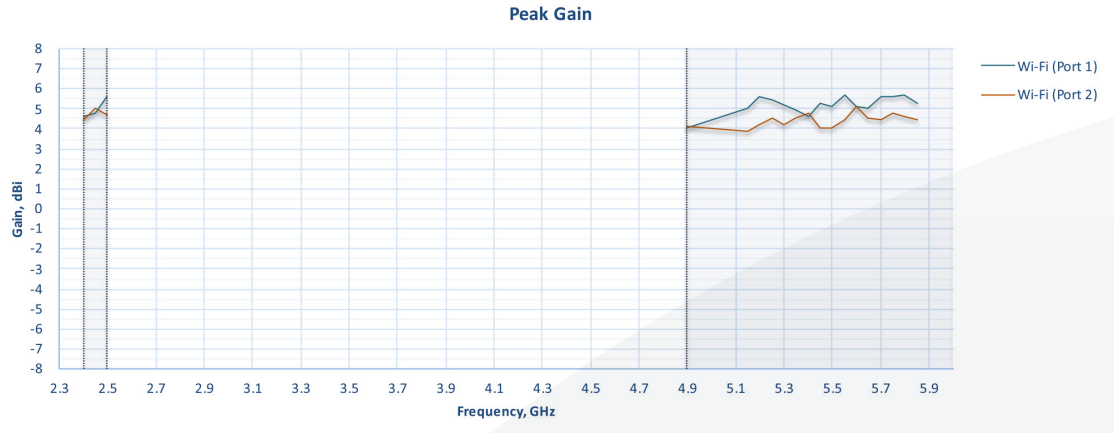

Wi-Fi Antenna Gain

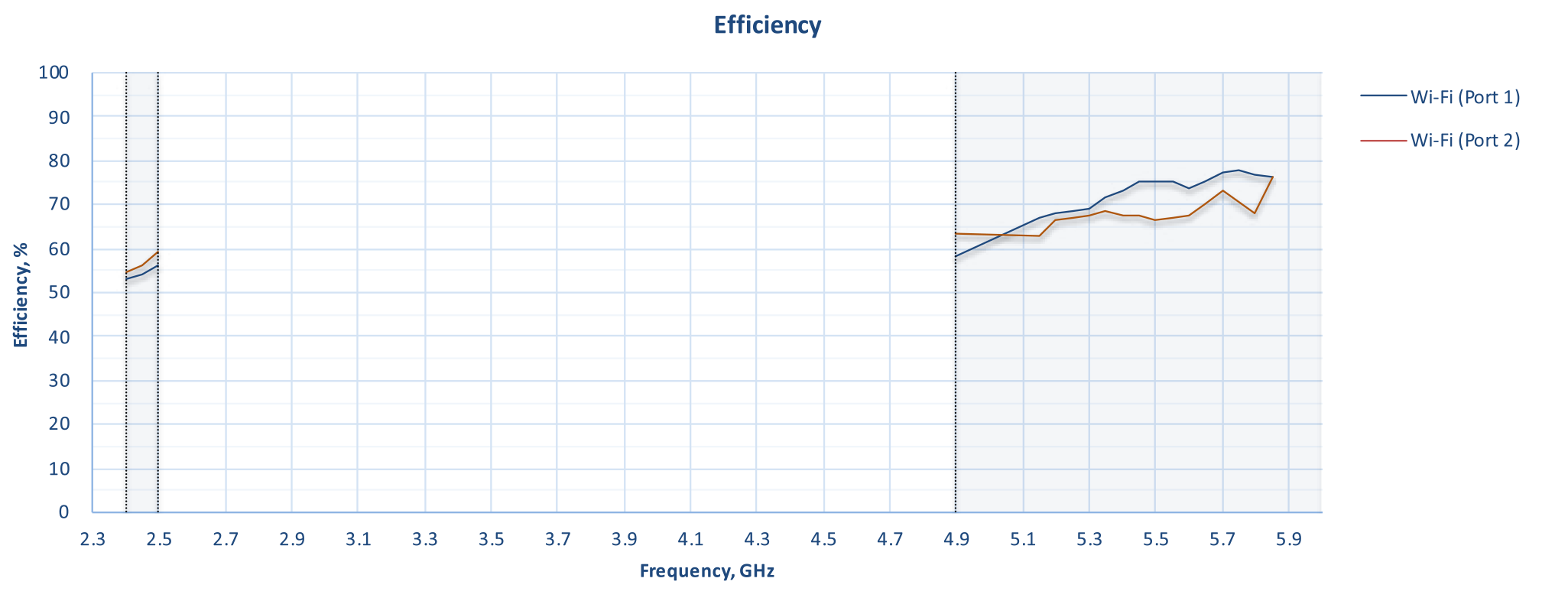

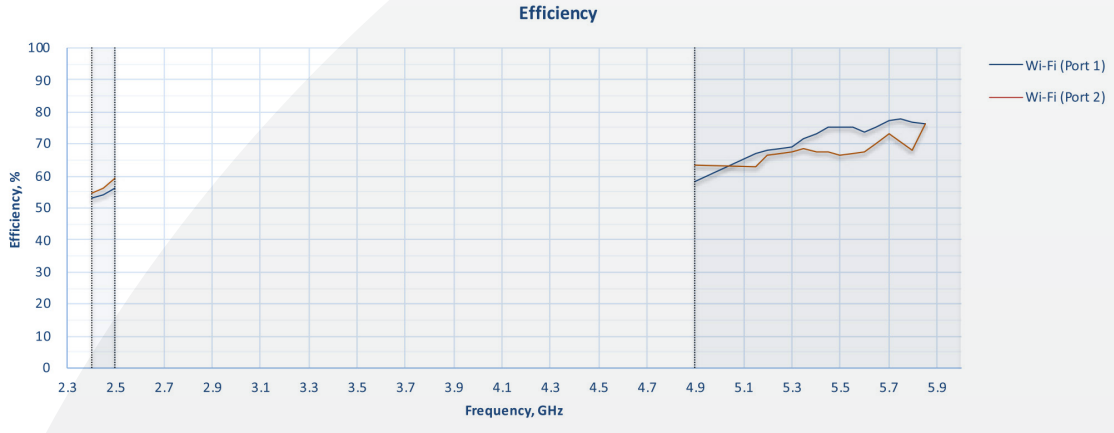

Wi-Fi Antenna Efficiency
CELLULAR & WI-FI ANTENNA PERFORMANCE

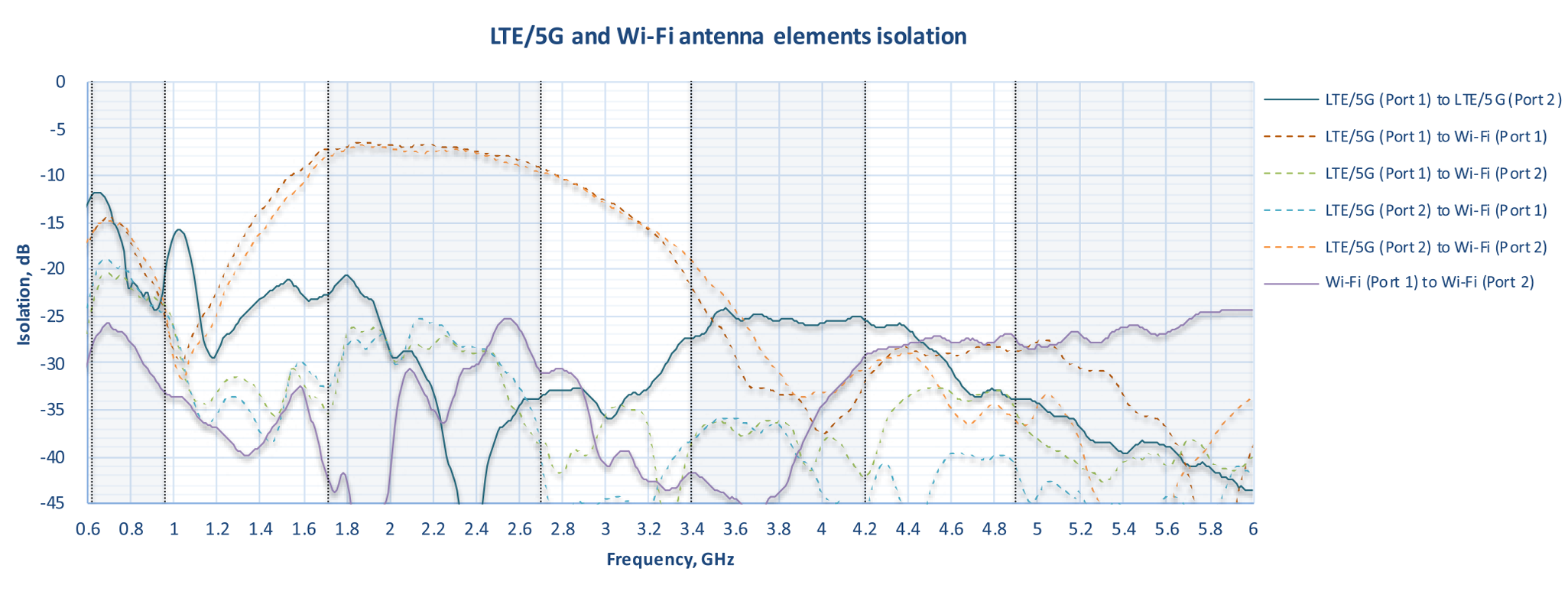

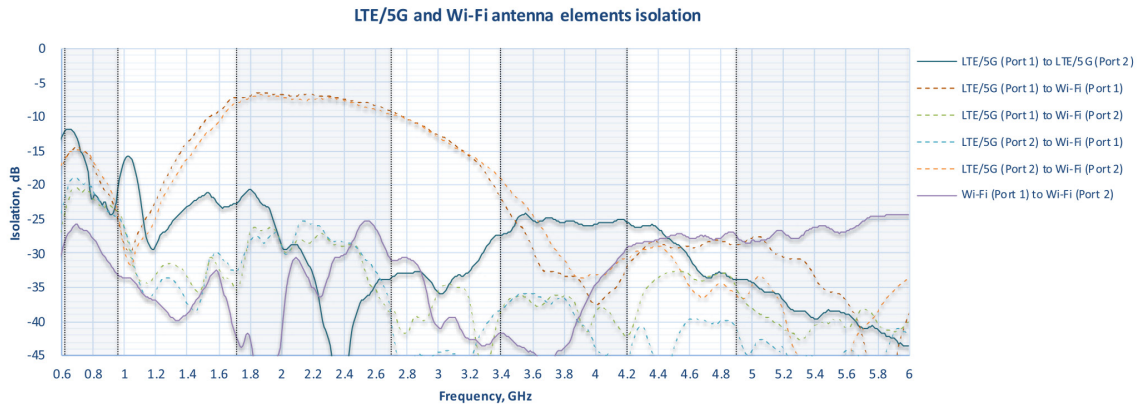

Cellular & Wi-Fi Antenna Isolation
RADIATION PATTERN

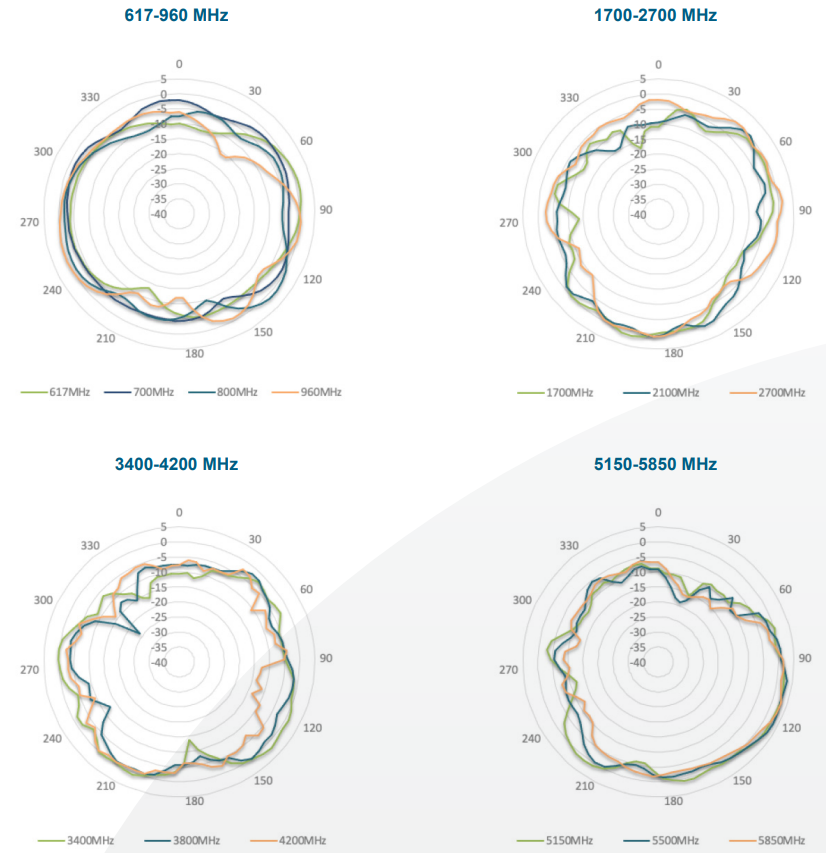

LTE Radiation Patterns (Azimuth)

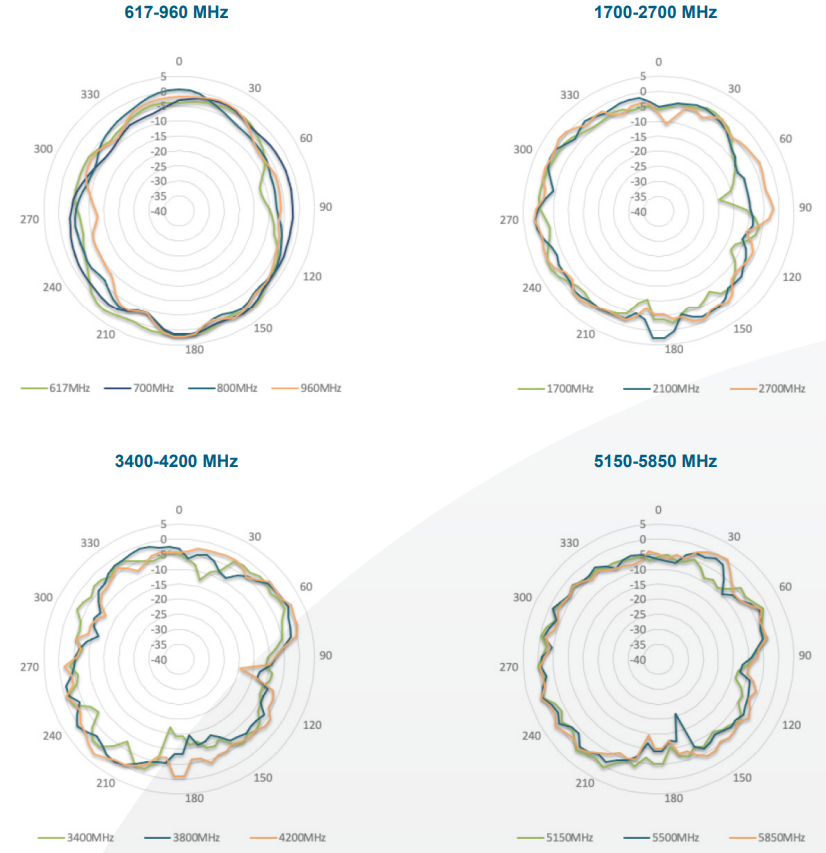

LTE Radiation Patterns (Elevation 1)

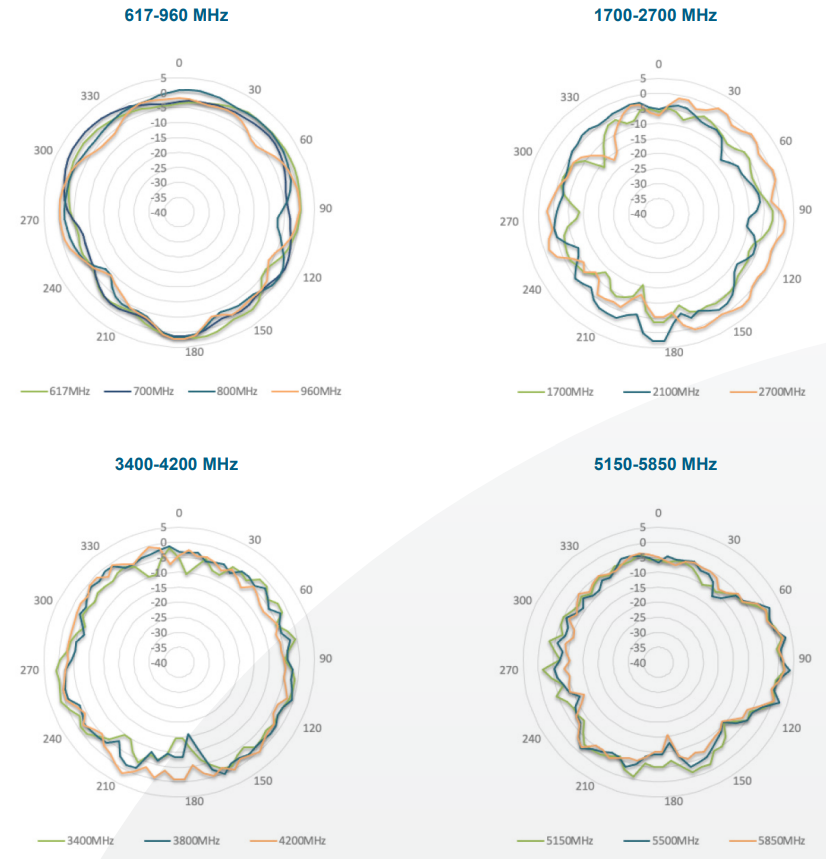

LTE Radiation Patterns (Elevation 2)
RADIATION PATTERN

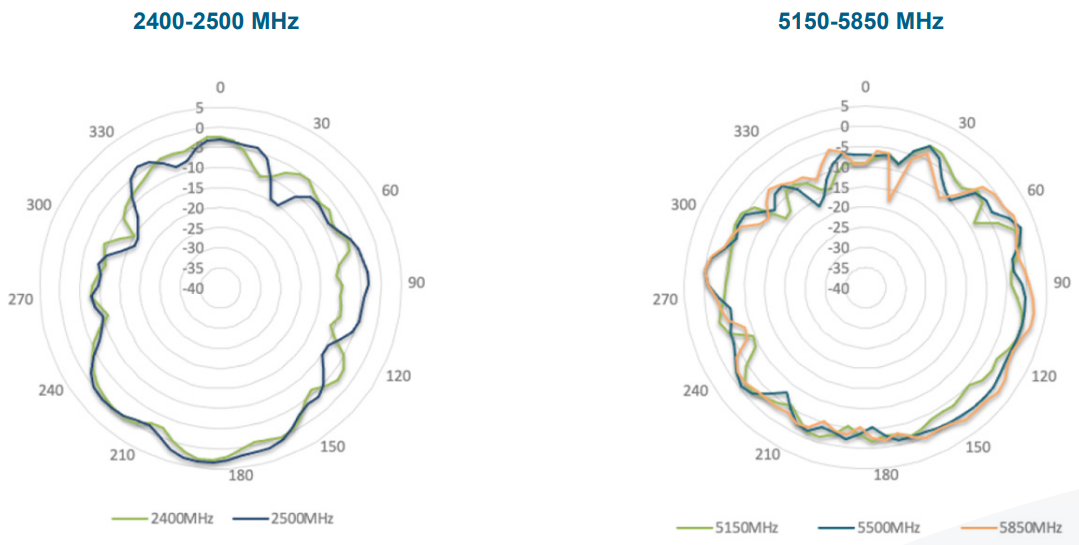

Wi-Fi Radiation Patterns (Azimuth)

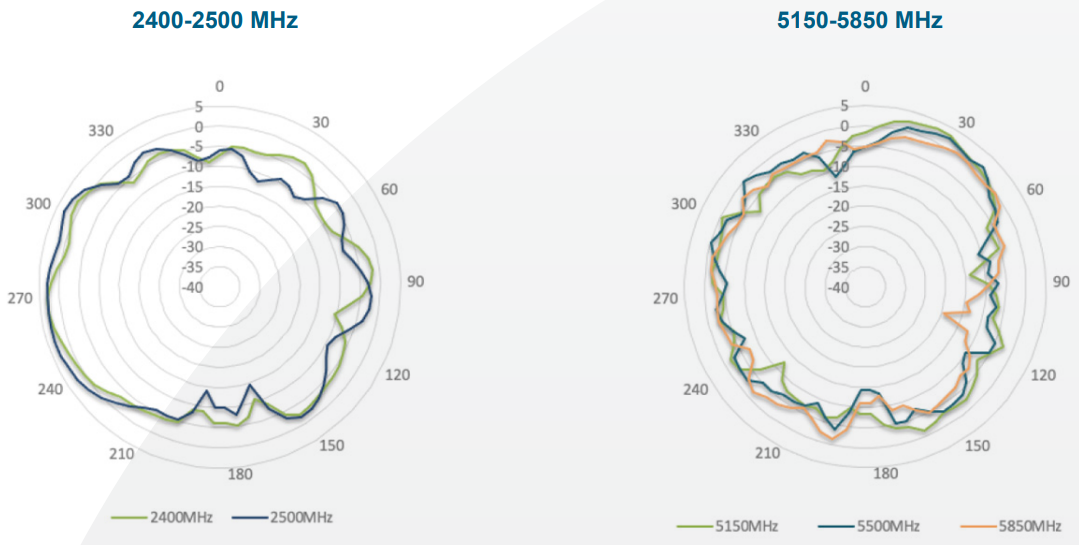

Wi-Fi Radiation Patterns (Elevation 1)

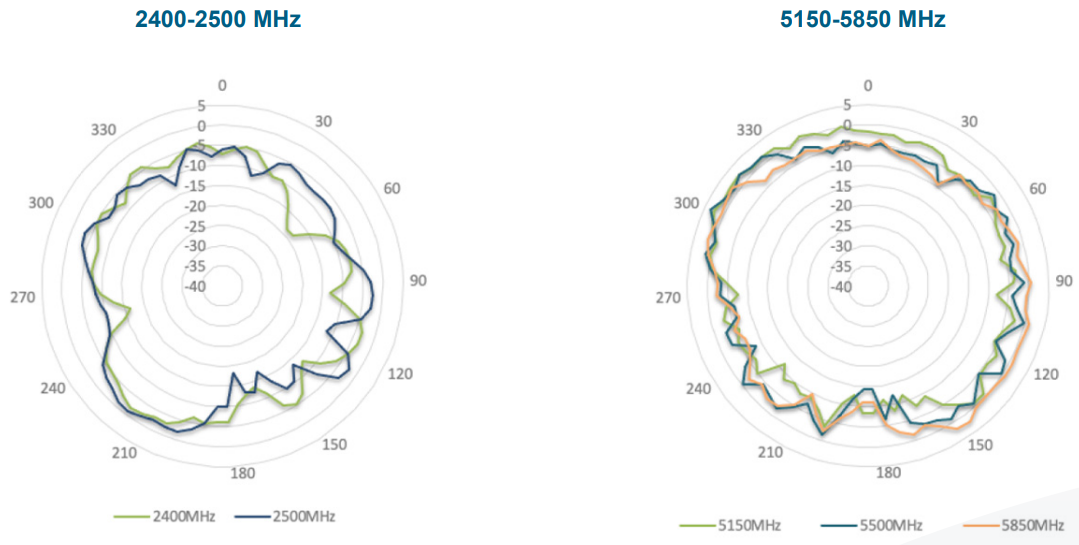

Wi-Fi Radiation Patterns (Elevation 2)

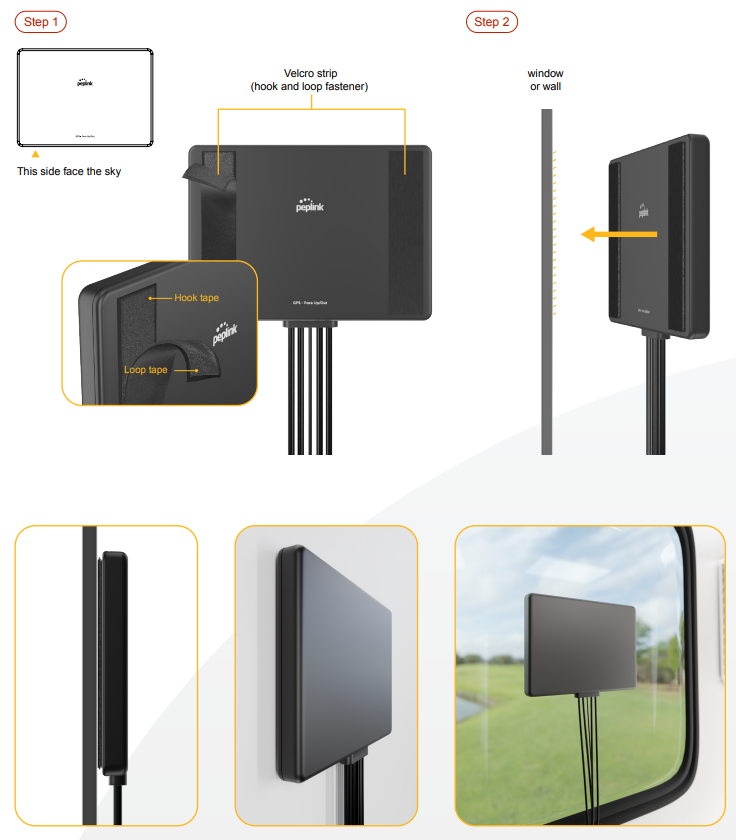

INSTALLATION RECOMMENDATION
