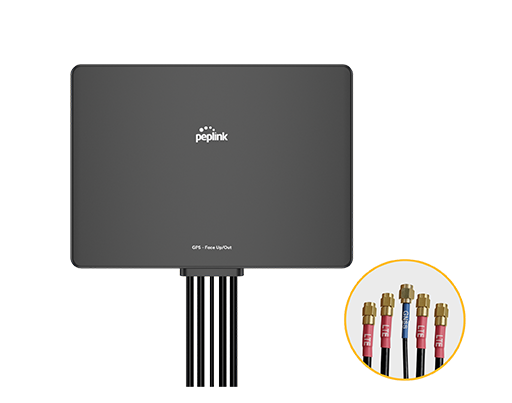

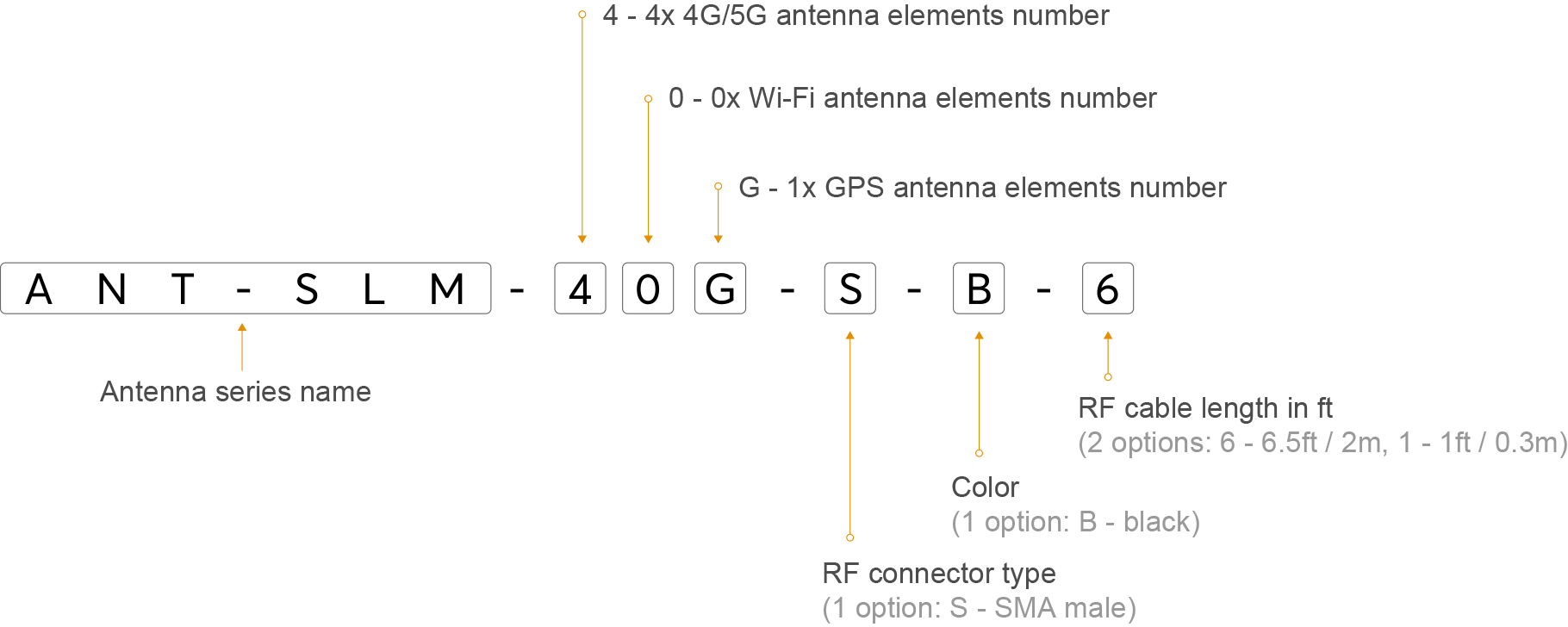

Slim 40G

Applications

• Recreational Vehicles
• Transportation Connectivity
• Home / Office


Ultra Wide Bandwidth

Wide frequency range (600-6000MHz) supporting LTE and 5G connectivity.


Built for 5G

Omni-directional 4×4 MIMO mobile antenna for the best performance.


Easy Installation

Can be mounted on a window or wall or hidden under a vehicle dashboard.

Cellular

• Antenna elements: 2 elements
• Peak Gain & Frequencies:
3.6dBi: 617-960MHz
6.1dBi: 1710-2700MHz
6.7dBi: 3400-4200MHz
8.1dBi: 5000-6000MHz
• VSWR: < 2.5 over 95% of the band
• Feed Power Handling: 10W
• Input Impedance: 50 Ω
• Polarisation: Linear

GPS

• Frequency Range: 1561-1602 MHz
• Peak Gain:
0.5dBi@1575MHz
1.6dBi@1602MHz
• VSWR: < 2.0
• Output Return Loss: 10dB max
• Gain: LNA: 28 ±3dB
• Noise Figure: 1.5dB max at 3.3V
• Operating Voltage: 3.3V
• Power Consumption: 8.5 ±2.5mA at 3.3V

Cable (Cellular)

• Type: CFD-200 (Cellular)
• Loss:
0.33 dB/m @ 900 MHz
0.49 dB/m @ 2000 MHz
0.55 dB/m @ 2500 MHz
0.87 dB/m @ 5800 MHz
• Diameter: 0.2″ / 5.0mm
• Jacket: Half matt PVC, UV resistant
• Termination: SMA male

Cable (GPS)

• Type: RG-174 (GPS)
• Loss:
3.4 dB/m @ 1000 MHz
4.9 dB/m @ 1800 MHz
• Diameter: 0.1″ / 2.7mm
• Jacket: Half matt PVC, UV resistant
• Termination: SMA male

Mechanical

• Product Dimensions:
7.09″ x 5.12″ x 0.59″ /
180 x 130 x 15mm
• Packaged Dimensions:
9.61″ x 3.15″ x 9.84″ /
244 x 80 x 250mm
• Enclosure Material: UV stable PC
• Color: Black

Mounting

Supported Types: Window, wall

Environmental, Compliance

• IP Rating: IP55
• Operating Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Storage Temperature: -40° ‐ 176°F / -40° ‐ 80°C
• Compliance: ROHS, REACH, WEEE
• Enclosure Flammability: UL 94 HB
• Cable Flammability: UL 758 (VW-1)
• UV resistance: UL 746C (F1 long-term UV exposure)

Package Contents

• Package Contents:
Slim 40G
Velcro strip (hook and loop fastener)
(4pcs, length 4.7″ / 120mm)

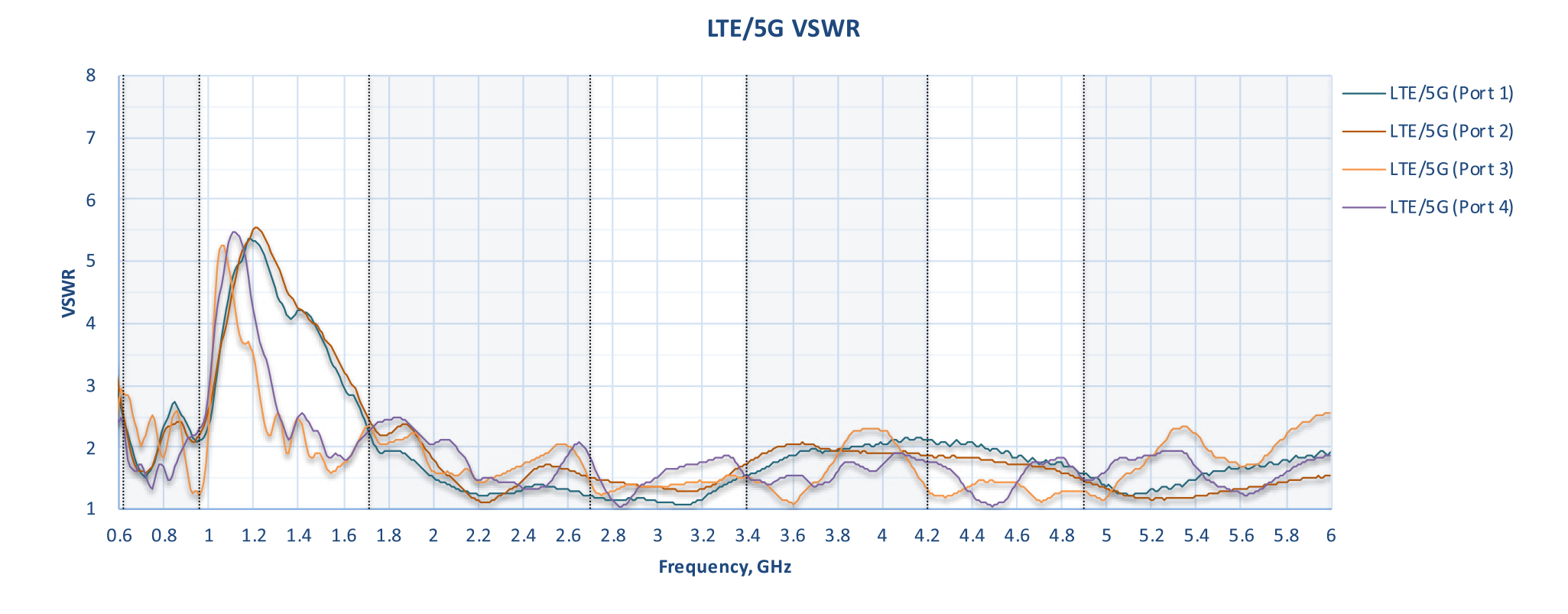

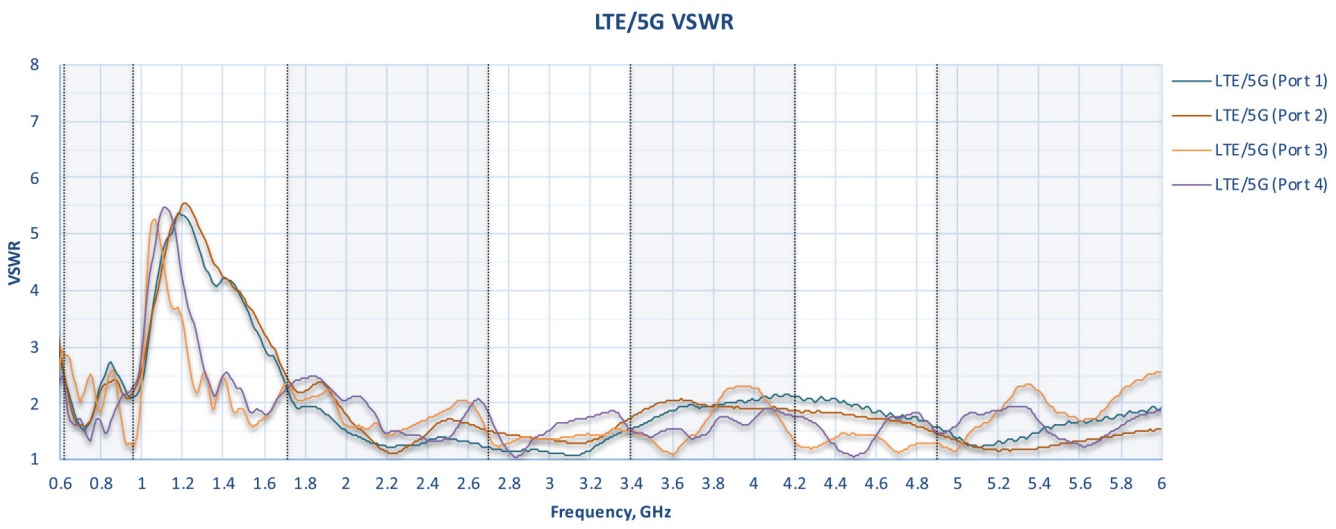

Cellular Antenna VSWR

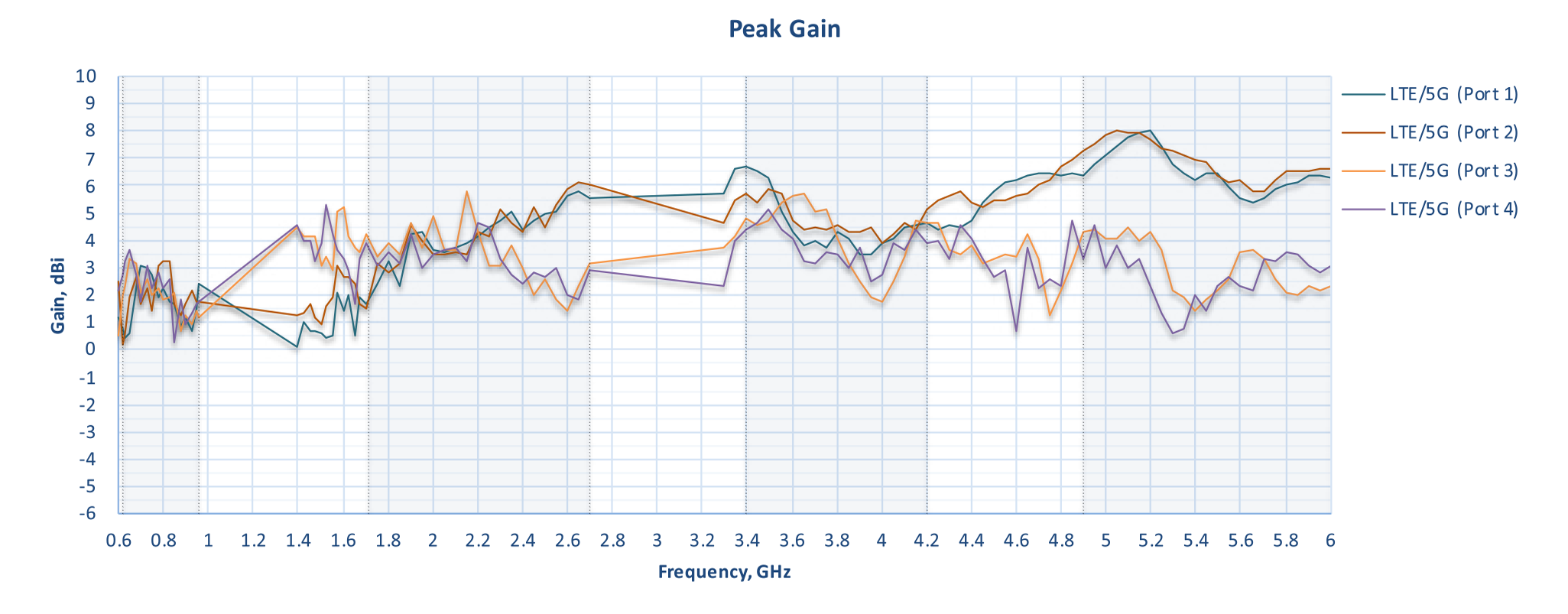

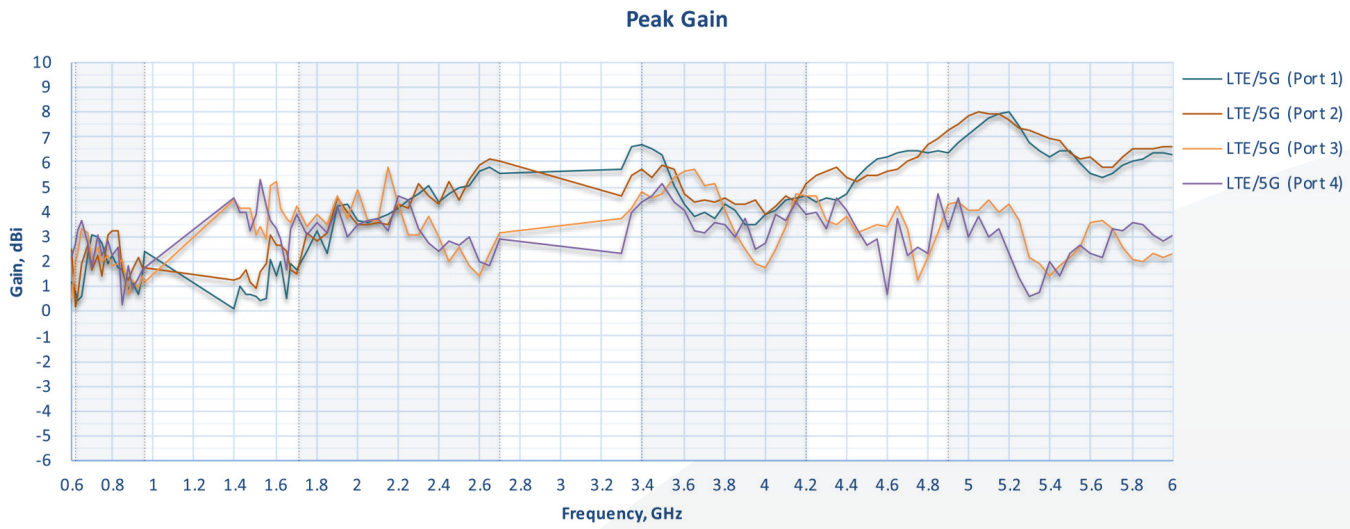

Cellular Antenna Gain

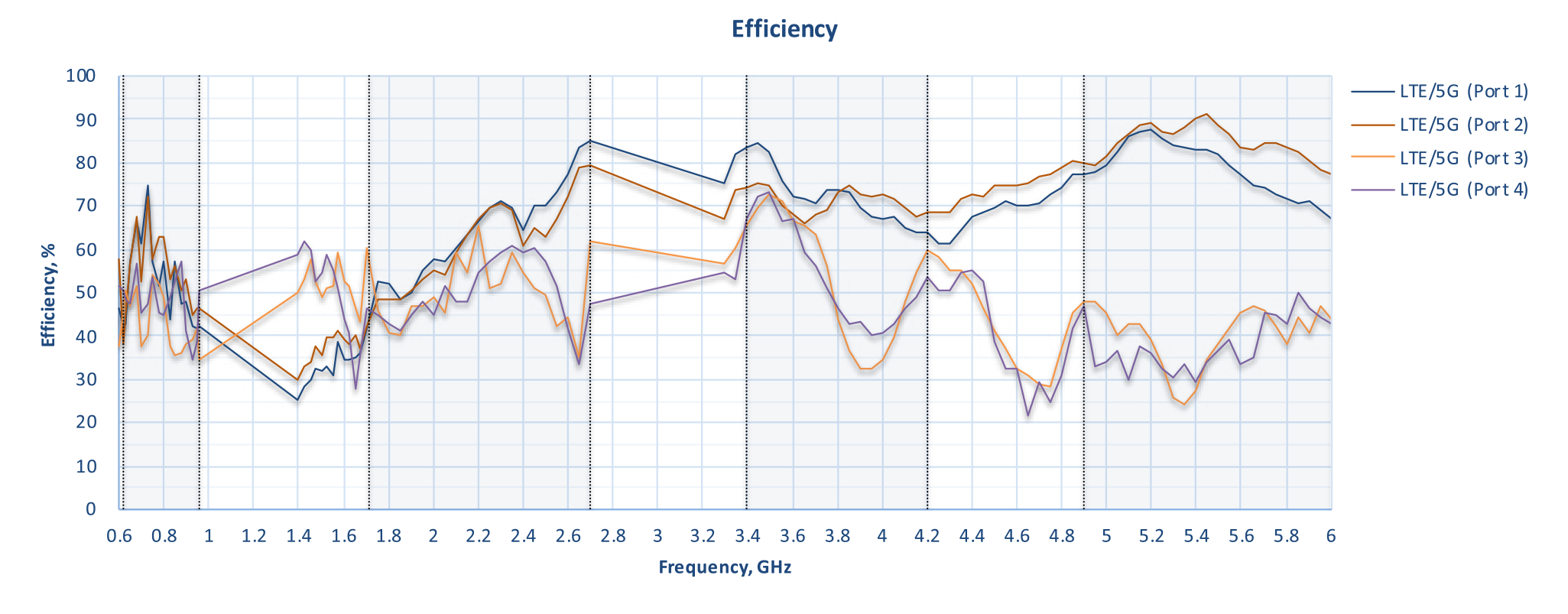

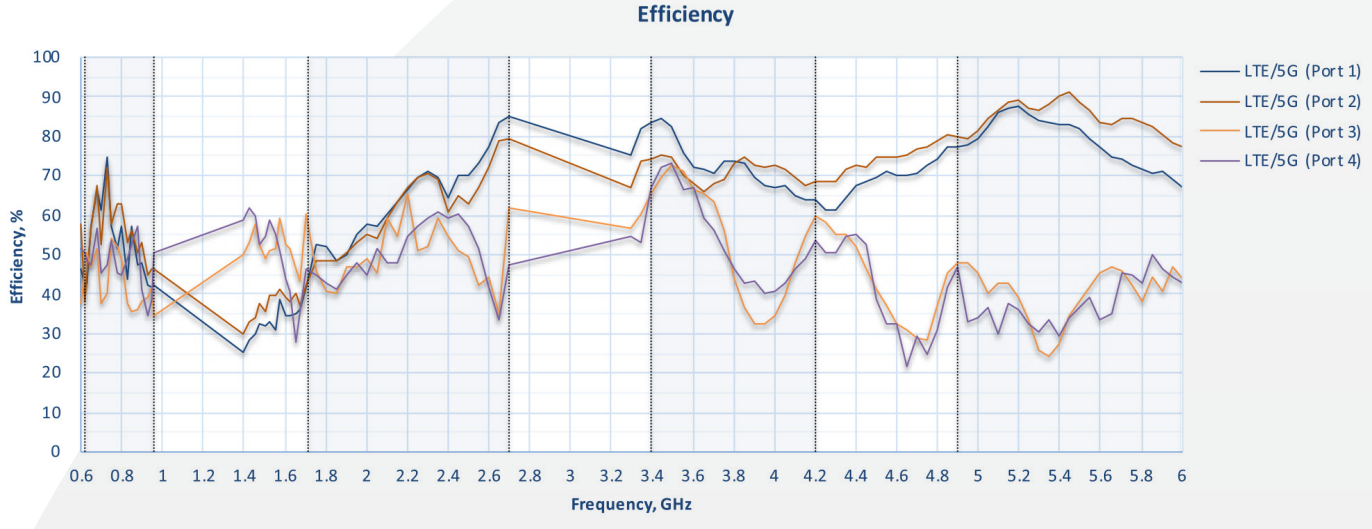

Cellular Antenna Efficiency

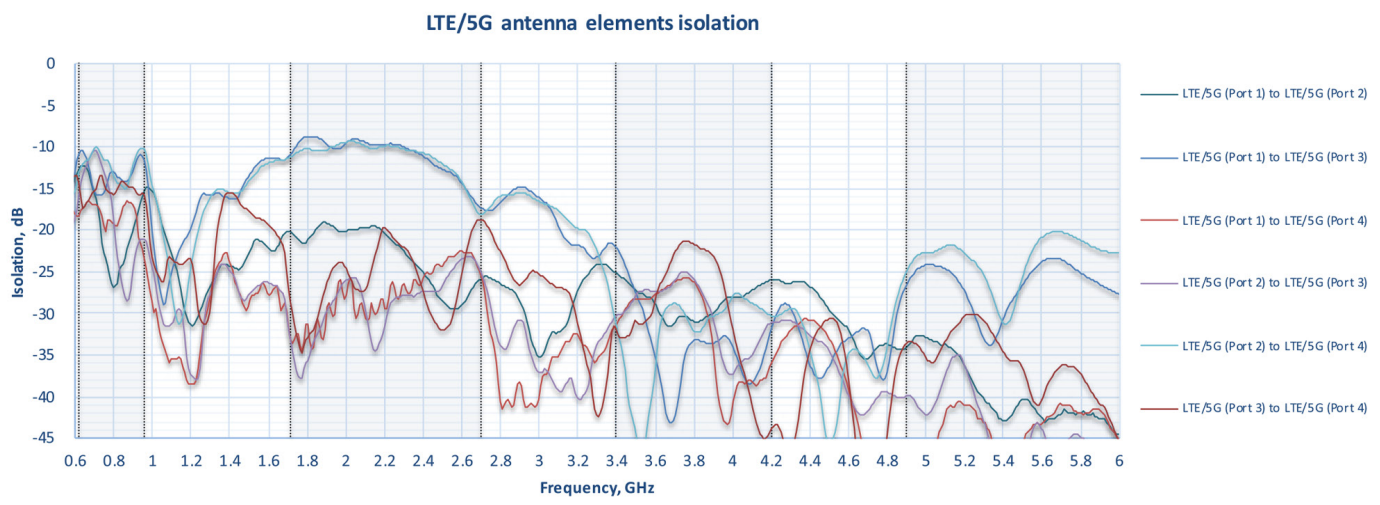

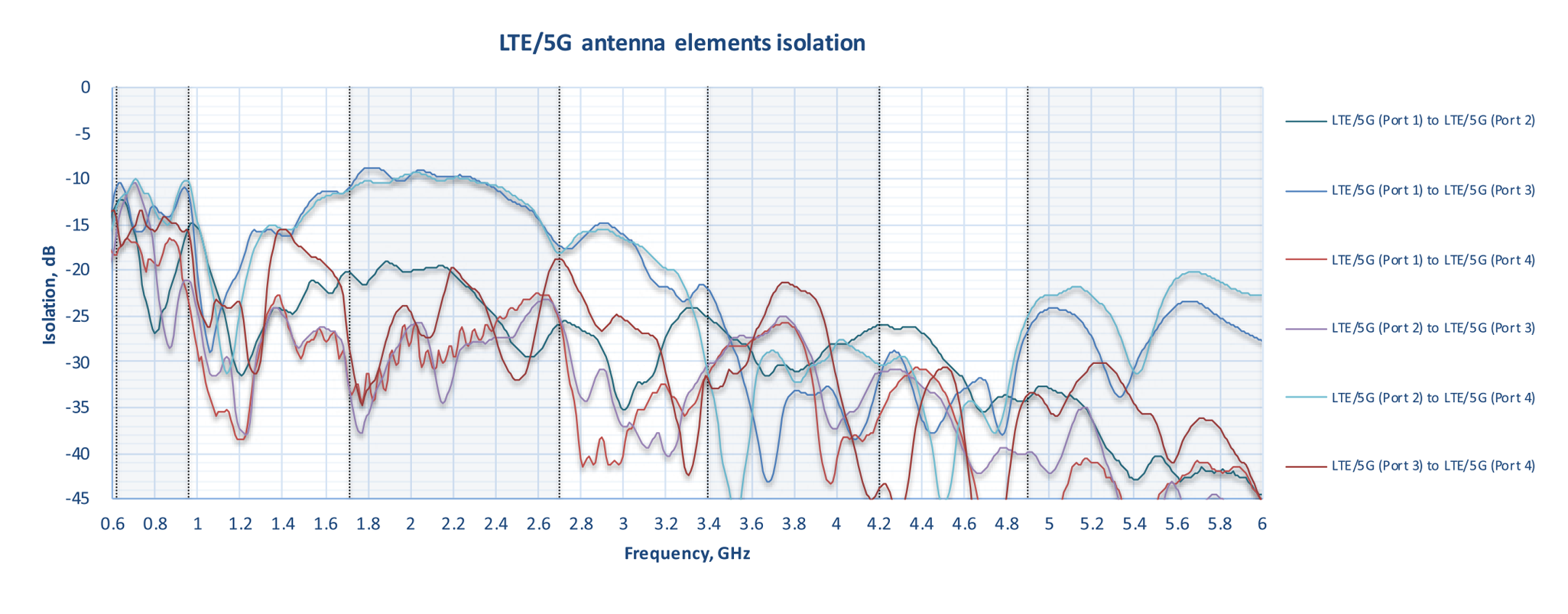

Cellular & Wi-Fi Antenna Isolation

LTE Radiation Patterns (Azimuth)

LTE Radiation Patterns (Elevation 1)

LTE Radiation Patterns (Elevation 2)
